Honeywell Genesis 7580G User Manual

12 - 3
Standard Connector Pinouts
Note: The following pin assignments are not compatible with Honeywell legacy products. Use of a cable with improper pin
assignments may lead to damage to the unit. Use of any cables not provided by the manufacturer may result in damage
not covered by your warranty.
Keyboard Wedge

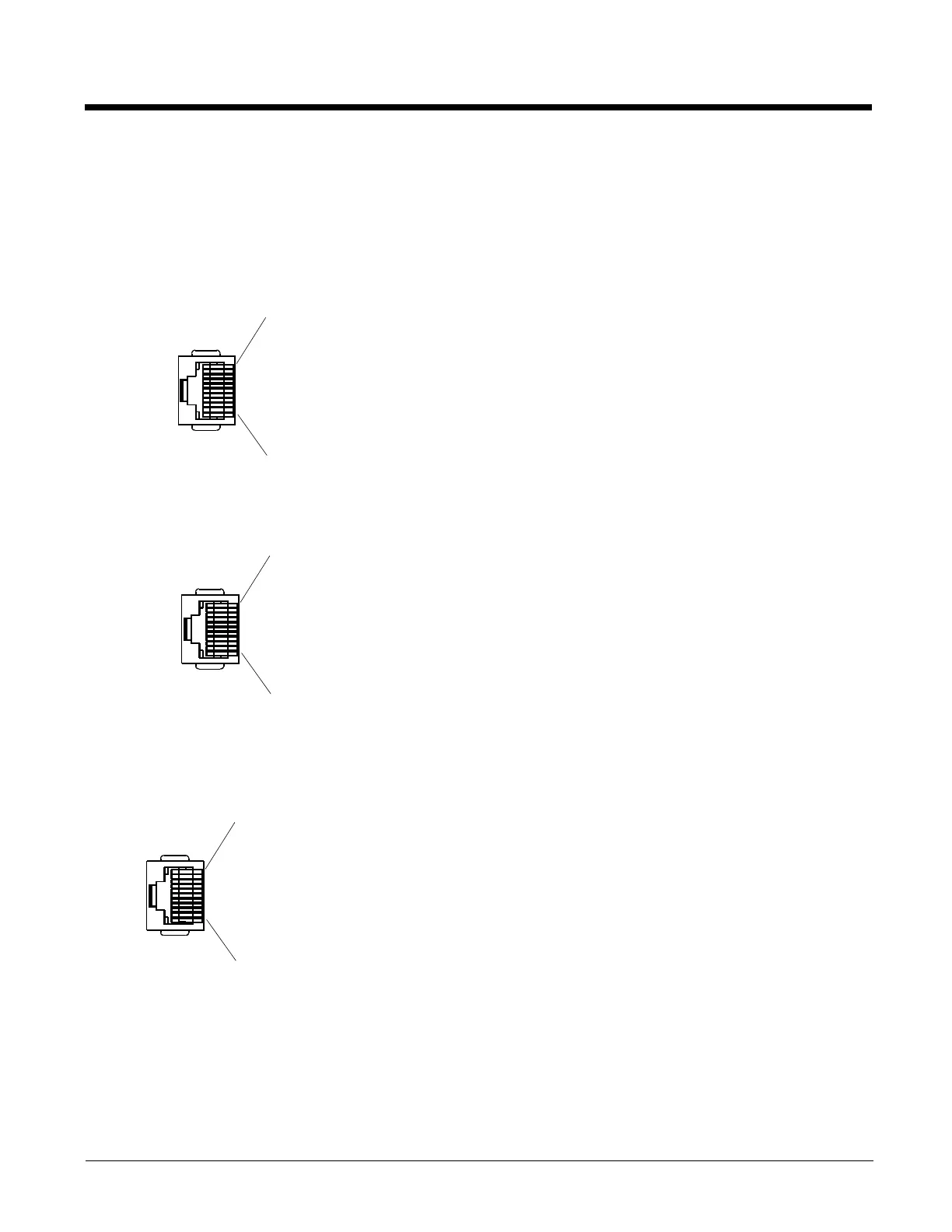

10 Pin RJ41 Modular Plug
Serial Output
10 Pin RJ41 Modular Plug
RS485 Output
10 Pin RJ41 Modular Plug
Note: RS485 signal conversion is performed in the cable.
1 Cable shield
2 Cable select
3 Supply ground
4 Terminal data
5 Terminal clock
6 Keyboard clock
7+5V power
8 Keyboard data
9
10
1 Cable shield
2 Cable select
3 Supply ground
4 Transmit data
5 Receive data - serial data to scanner
6CTS
7 +5V power
8RTS
9
10
1 Cable shield
2 Cable select
3 Supply ground
4 Transmit data
5 Receive data - serial data to scanner
6
7+5V power
8 Transmit Enable
9
10

Honeywell Genesis 7580G Specifications

General

Type	Fixed bar code reader
Sensor type	-
Scanner type	1D/2D
Pitch reading angle	-70 - 70 °
Motion tolerance (cm/s)	200
Light levels (direct sunlight)	0 - 100000 lx
Standard interfaces	USB, RS-232, RS-485, Keyboard wedge
Product color	Black, Silver
Input voltage	5.5 V
Power consumption (standby)	0.5 W
Power consumption (typical)	2 W
Storage temperature (T-T)	-40 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 95 %
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	80 mm
Width	83 mm
Height	150 mm
Weight	340 g
