Honeywell TC Series User Manual

TC · Edition 08.17 21
Function

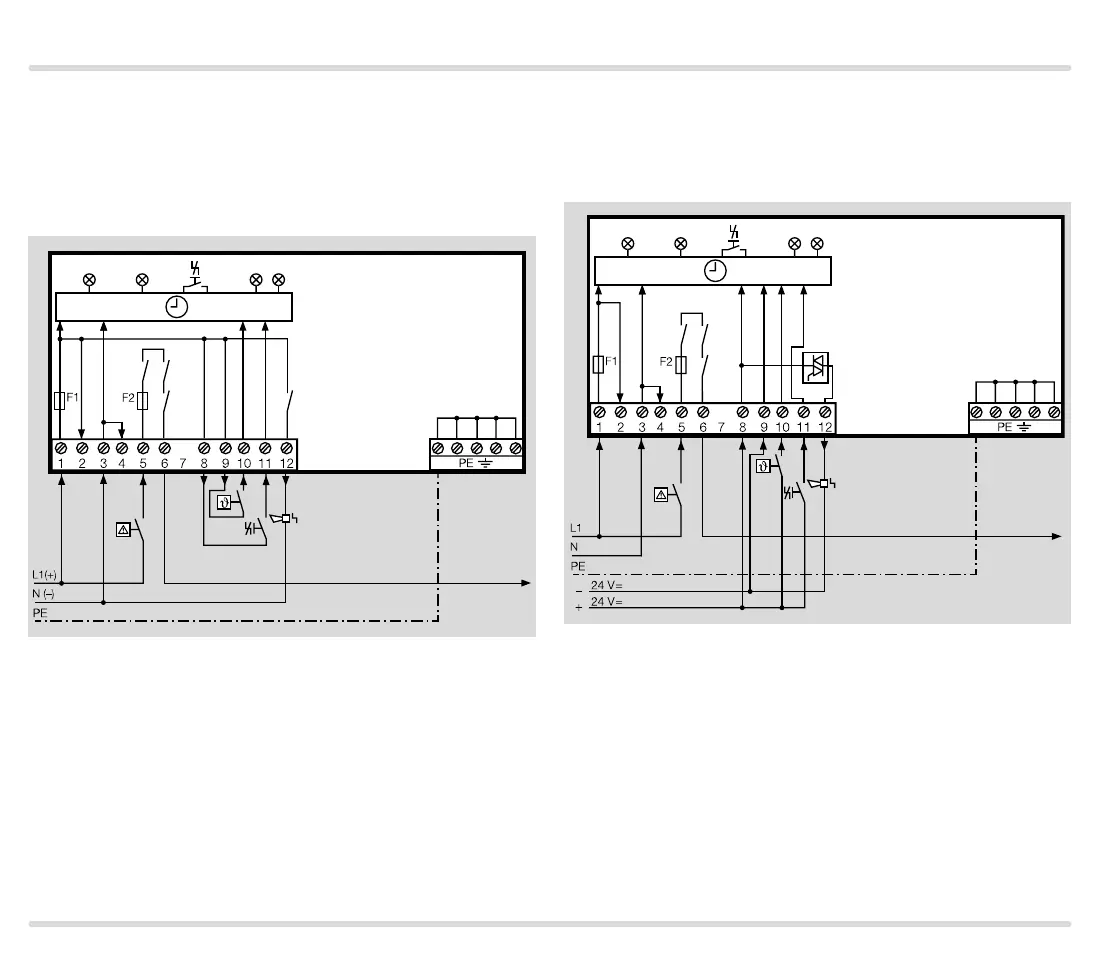

3.1.2 Connection diagrams for TC 3
TC 3..W/W, TC 3..Q/Q or TC 3..K/K
Mains voltage = control voltage
24 V DC, 120 V AC or 230 V AC,
see page 37 (Selection).
OK
TC 3
Remote reset by applying control voltage to terminal 11
or via a floating contact between terminals 8 and 11.
TC 3..W/K or TC 3..Q/K
Mains voltage: 120 V AC or 230 V AC
Control voltage: 24 V DC,
see page 37 (Selection).
OK
TC 3
Remote reset by applying control voltage (+24 V) to ter-
minal 11.
