General Description
MAN0996_Iss 1_02/16 Touchpoint Plus
Pt. No. 3011M5044_EN 13 User Guide
Chapter 3. System General Description

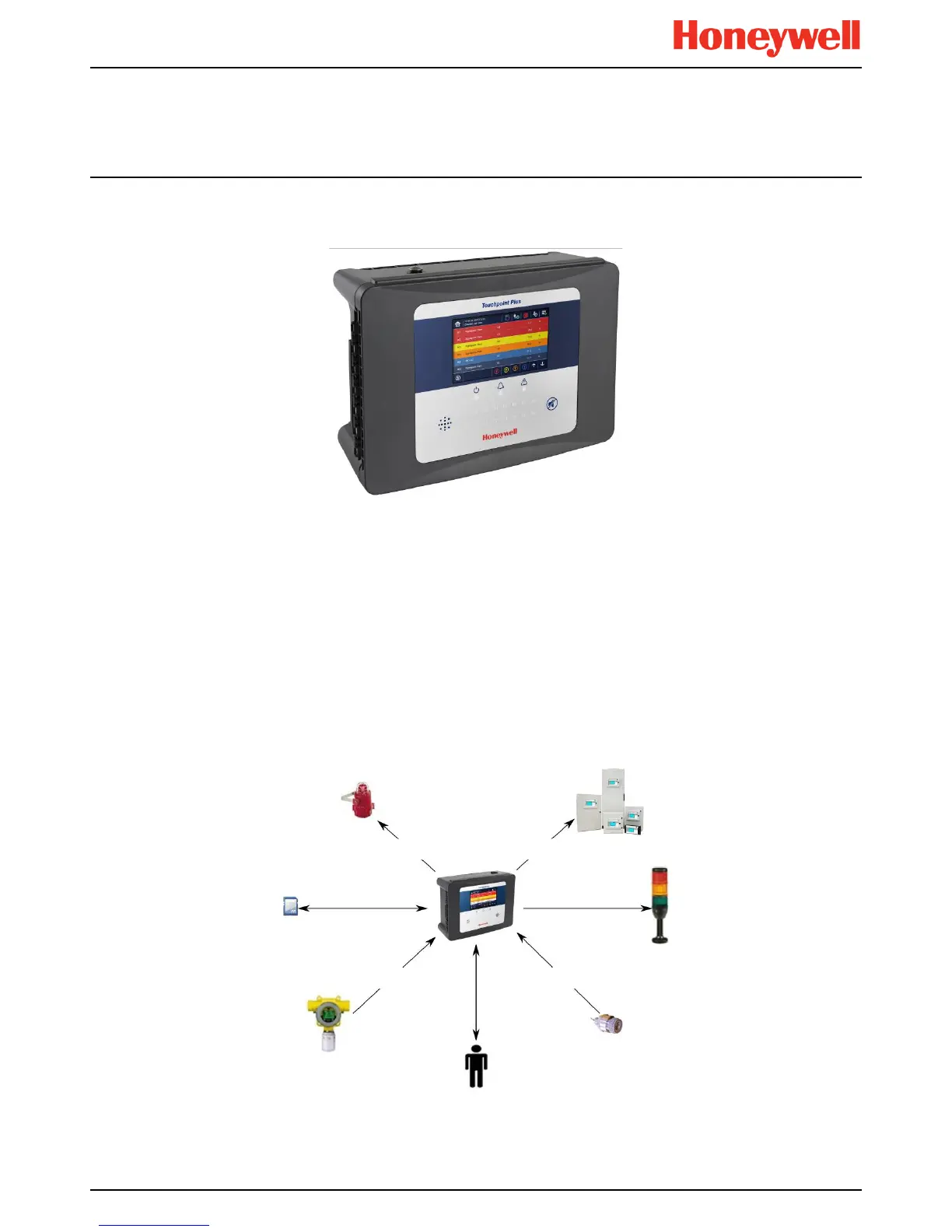

Figure 6. Touchpoint Plus Wall-Mounted Controller
The Touchpoint Plus is an entry level (or upgrade) touch-screen digital Controller for general industrial and commercial
gas detection systems. It has eight input channels, with a further eight channels available through an optional expansion
unit (see Note below).
It can handle a wide range of milliamp, millivolt, and catalytic sensors through analogue inputs, and it can control various
outputs such as audible and visible signals and solenoid valves.
The cabinets are constructed from high-impact plastic and have fully-sealed, easy opening access. They are supplied with
a wall mounting or can be directly mounted to any solid vertical surface or rack. Cable entry is via entry glands on the
lower side.
Touchpoint Plus is rated IP65, which means that it is dustproof and can be subjected to low-pressure water without
significant ingress. This makes it particularly suited to offices, control rooms and unheated boiler rooms.
Note: Currently Touchpoint Plus is only available as a composite Gas Detection System, but please contact Honeywell
Analytics for details about future upgrades.
