Honeywell Touchpoint Plus User Manual

General Description
MAN0996_Iss 1_02/16 Touchpoint Plus
Pt. No. 3011M5044_EN 18 User Guide
3.2.10 Touchpoint Plus Packaging
• Touchpoint Plus outer packaging is made from cardboard. Facilities for recycling are widely available.
• Touchpoint Plus inner packaging is made from Stratocell
®
, Low-Density Polyethylene (LDPE) foam. The foam can be
recycled into new Stratocell
®
where such recycling facilities exist.
3.2.11 Packaging Components for Return to Manufacturer
Honeywell is unable to accept any consignment that does not conform to the European Classification, Labelling and
Packaging (CLP) Regulations (EC) 1272/2008.
Please consult your distributor, supplier, or the manufacturer if you require further advice.
3.2.12 Disposal (WEEE Directive)
The system contains Lithium batteries and a number of homogenous hazardous materials. These should be disposed of
carefully in accordance with the WEEE Directive and local laws and guidelines. Under no circumstances can they be
disposed of as domestic waste.
3.3 TPPL Construction
The TPPL system consists of a basic Control Unit and an optional Expansion Unit, as shown below.
3.3.1 TPPL Basic Control Unit
This figure shows the building blocks of the basic Touchpoint Plus system.

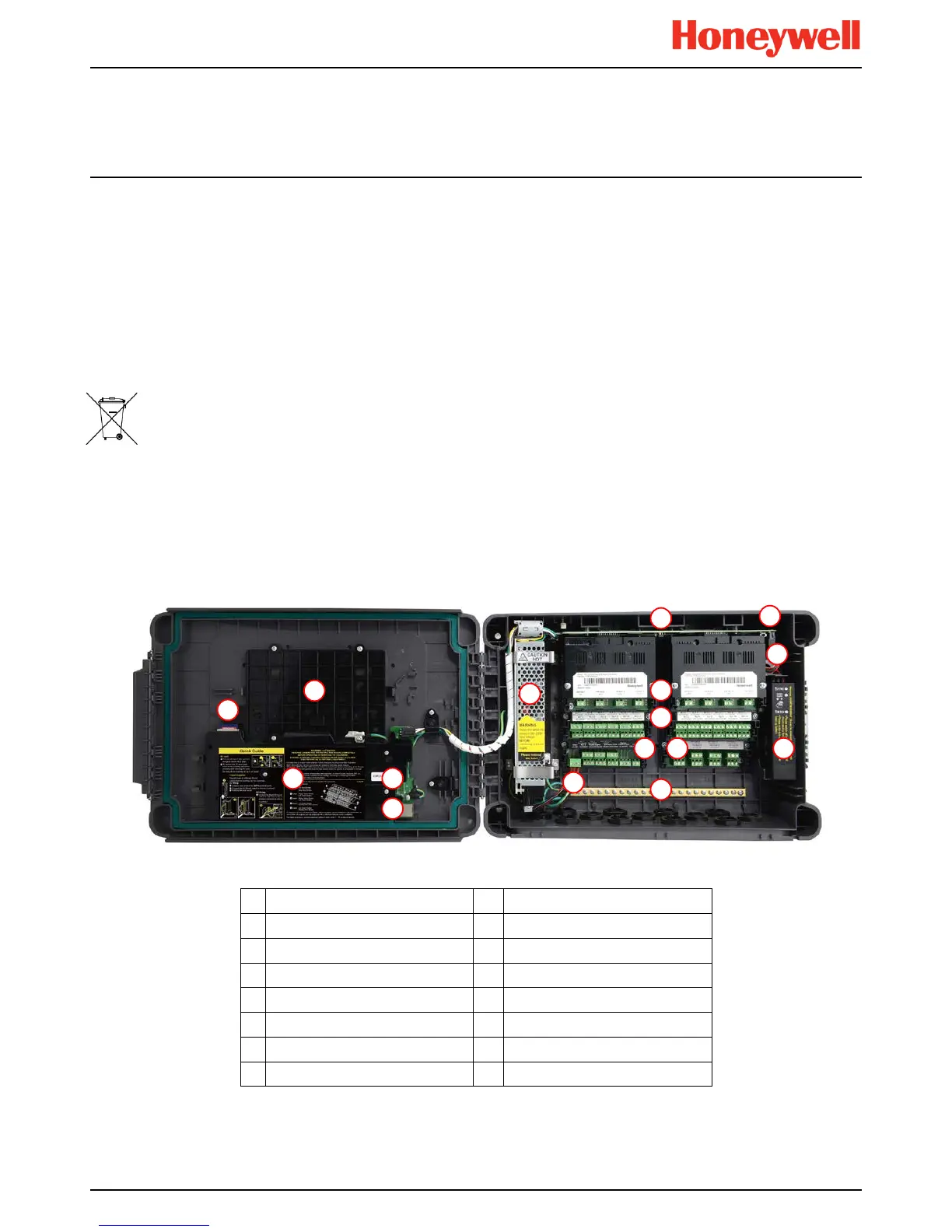

Figure 10. Controller Unit Layout Before Installation
1
Touchscreen PCB
9
Battery Connector
2
SD Card
10
mA Output Modules
3
Motherboard
11
Relay Output Modules
4
Modbus Terminals (option)
12
Main Module
5
Ethernet Connector
13
Input Module (mA/mV/Dual)
6
Switched Mode Power Supply
14
Backup Battery
7
DIP Switch (on backplane)*
15
Power Terminal
8
Battery On / Off Switch
16
Earth (Ground) Bus Bar
* The DIP Switch (14) is used to enable / disable the optional expansion box. See Ch.3.3.3 TPPL DIP Switches for further
information.
1
2
4
5
6
7
14
15
3
8
9
10
16
11
13
12
