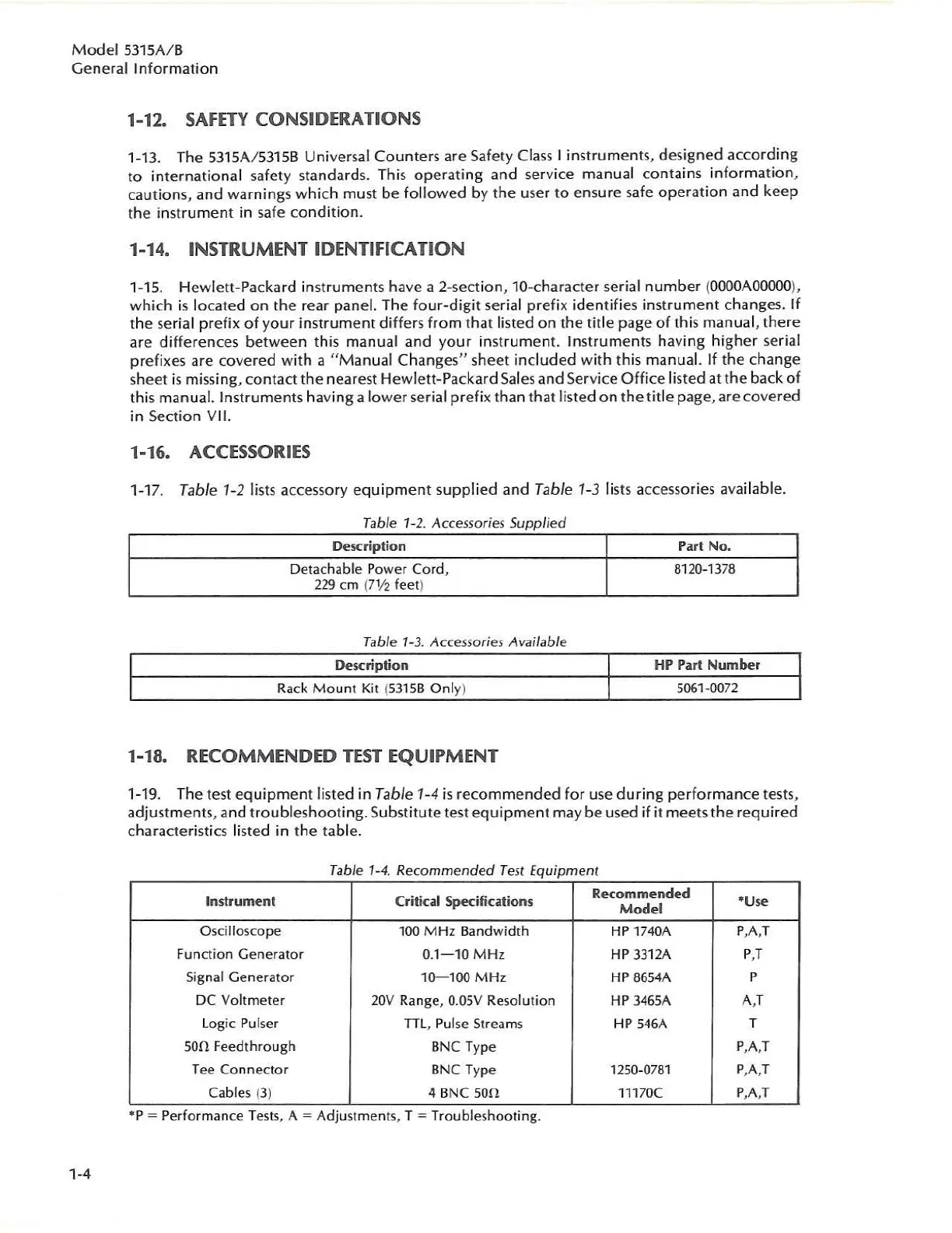

Model 5315A/B
General Information
1-4
1-12. SAFETY CONSIDERATIONS
1-13. Th e 53 1 5A / 5315B Universal Counters are Safety Class I instruments, designed according
to international safety standard
s. Thi s operating and service manual contains in formation,
cautions, and warn in gs which mu st be fol lowed by the user to ensure safe operation and keep
the inst rum ent in sa fe condition.
1-14. INSTRUMENT IDENTIFICATION
1-1 5. Hewlett -P ackard in struments have a 2-secti on, 10- character serial number ( OOOOAOOOOO ),
which is located
on the rear pane l. The four-d igit serial prefix id entifies instrument changes. If
the se rial prefix of y our instrument differs from that listed on the title page of this manual, there
are differences between th
is manual and your instrument. In struments having hi ghe r se ria l
prefixes are covered with a
"M anual Changes" sheet included with this manual. If the chan ge
sheet is mi ss in g, contact the nearest Hewleu -P ackard Sales and Service Office listed at the back of
t
hi s manual. Ins truments ha v in g a lo wer serial prefix than that lis ted on the title page, are covered
in Section
VI I.
1-16. ACCESSORIES
1-1 7. Table 1-2 lists accessory equipment supplied and Table 1-3 lists accessories ava il able.
Table 1 2 Accessories Supplied
-
De§cription Part No,
Detachable
Po wer Cord, 8120-1378
229 cm ( 71;2 feet)
Table 1 3 Accessories Available
-
De§cription HP Part Number
Rack Mount Kit ( 5315B Only) 5061-0072
1-18. RECOMMENDED TEST EQUIPMENT
1-19. Th e test eq uipment listed in Table 1-4 is recommended for use dur ing performance tests,
adjustments, a nd t roub leshoot in g. Substitute test equipment may be used if it meets the required
characteristics
li sted in the tab le .
Table 1 4 Recommended Test Equipment
-
Instrument
Critin] Specifications
Recommended
·U ..
Model
Oscil los co pe
100 MHz Bandwidth HP 1740A
P,A,T
Function Generator 0. 1 -10 MHz
HP 33 1 2A
P ,T
Signal Generator 10- 100 MHz HP 8 654 A P
DC Voltmet er 20 V Range, O.OSV Re~olution HP 3465A A, T
Logic Pu lse r TTL , Pulse Streams
HP 546A
T
SO O F eedthrough BNC Type P,A,T
Tee Co nne ctor
BNC Type
12 50 -0 781 P,A,T
Cables (3)
4 B NC son 11170C
P,A,T
.
P - Performance T es t s, A - Adjustments, T - Tr oubleshoottng .
