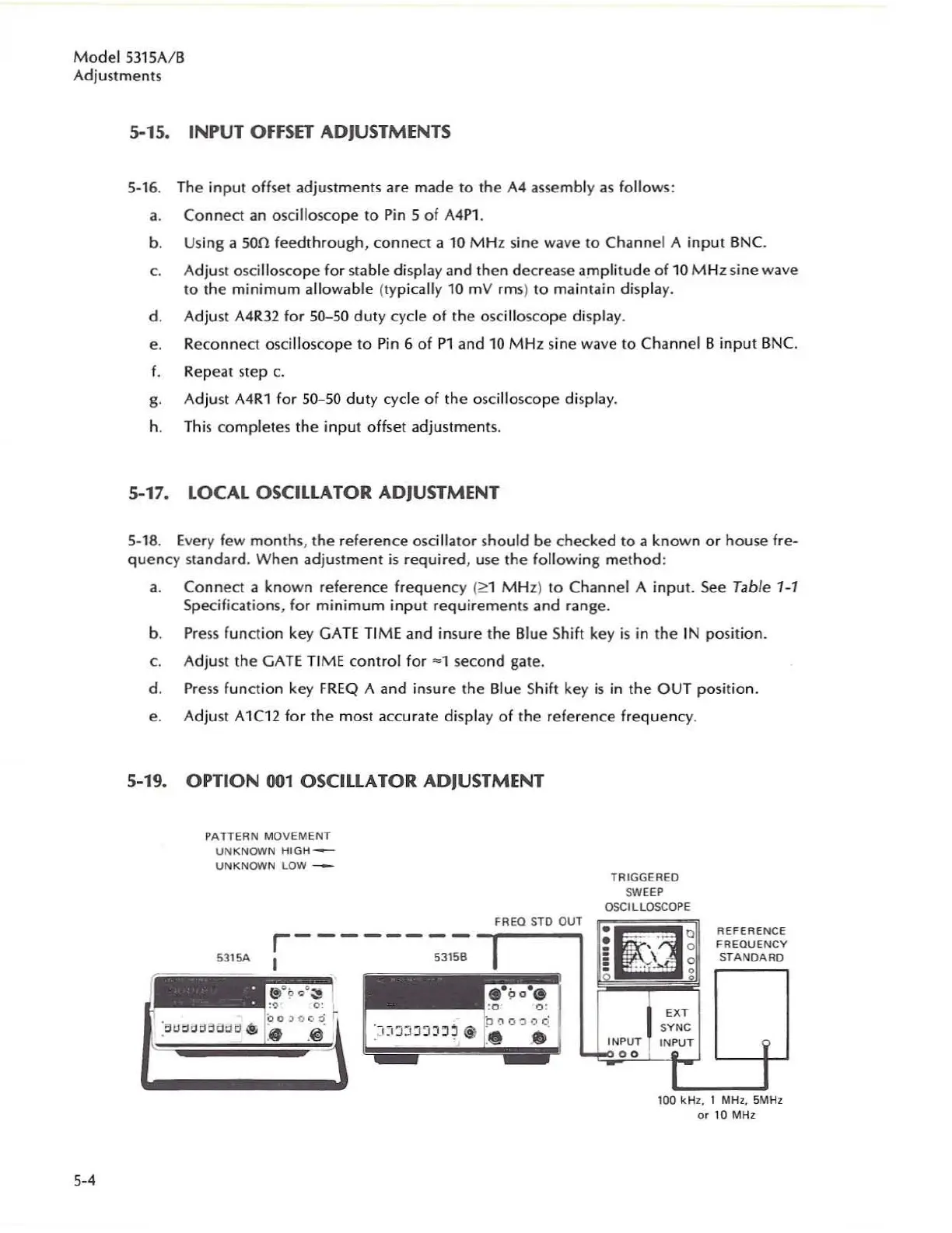

5-15. INPUT OFFSET ADJUSTMENTS
5- 16 . T he input offset adjustments are made to th e A4 assembly as follows:
a. Connect an oscilloscope to Pin 5 of A4P 1.
b. Us ing a SOO feed th rough, connect a 10 MHz s in e wave to Channel A in put BNC.
c. Adj ust oscilloscope for sta ble display and th en decrease ampli tude of 10 M Hz si ne wave
to the minimum all owable (typically 10 mV rms) to maint ain di sp l ay.
d. A dju st A4R32 for 50-50 duty cycle of the oscillos co pe display.
e. Reco nn ect oscilloscope to Pin 6 of Pl and 10 MHz sine wave to Channel B input BNC.
f. Rep ea t step c.
g. Adjust A4R l fo r 50-50 duty cycle of the osc ill oscope display.
h. This
co mplet es the i npu t off set adjustmen ts .
5-17. LOCAL OSCILLATOR ADJUSTMENT
5-18. Every few months, the reference oscilla tor sho ul d be checked to a known or house fre-
quen cy sta ndard. Whe n adjustment is requir ed, use th e fo ll owi ng method :
a. Co nn ect a known reference freque ncy (~ 1 M Hz) to Chan nel A input . See Table 1-1
Specifications, for mi n imu m input requirement s and range.
b.
Press fun c tion key GATE TI ME and insure the Blue Shift key is in the IN position.
c. Ad ju st the GATE TI M E control for .. , s econd gate.
d.
Press fun ction key FREQ A and insure the Blue Sh ih key is in the QUT position.
e. Ad ju st A1C 12 for the most accurate display of the reference fre quen cy.
5-19. OPTION 001 OSCILLATOR ADJUSTMENT
PATTERN MOVEMENT
UNK
NOW N HIG H-
U NK NOW N lOW ___
r--------
I 53158
53 15A
FREC STD our
TR IG GE RED
SW E EP
OSCI L L. OSCC PE
01Zj
• . . 0
_ , 0
i .. .. , ~
E XT
S YN C
INPUT INPUT
0 0
R EFERE NC E
FRE OU E NC Y
STA ND A RD
1 00 kH z. 1 MHz, 5MHz
or 10 MHz
