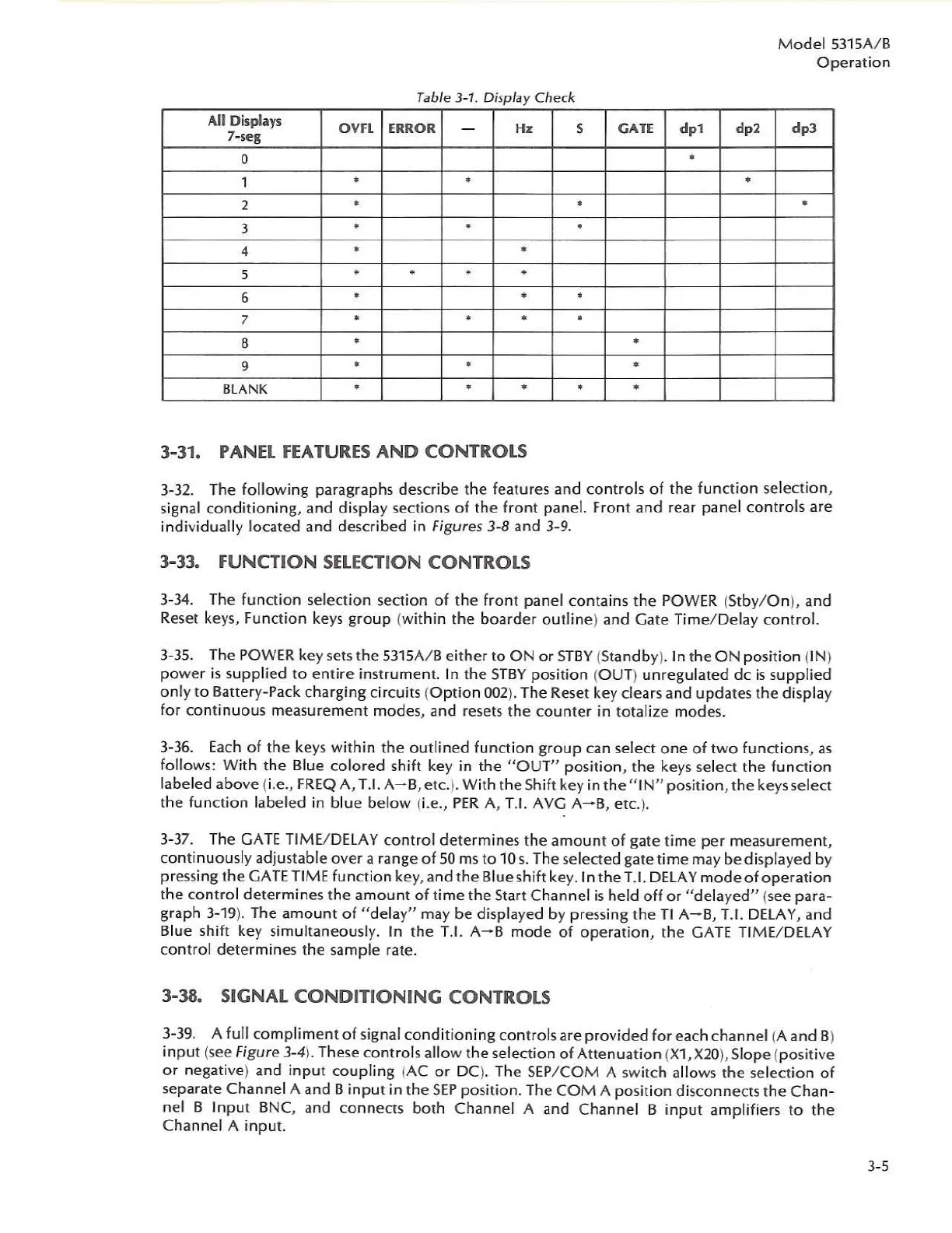

HP 5315 A User Manual

Mode l 5315 A/ B
Operat i on
Table 3 1 Display Check
-
All Di splays
OVFl ERROR - Hz S GATE dpl dp2 dp3
7-se8
a
.
1
· ·
.
2
·
•
.
J
·
• •
4
· ·
5
·
•
·
•
6
• • •
7
• • •
·
a
· ·
9
· ·
•
BLANK
· · ·
• •
3-31. PANEL FEATURES AND CONTROLS
3-32. The follo wi ng paragra ph s de sc ribe the fe at ures and co ntrols of the f unc ti on se lect ion ,
signal
conditioning , and di sp l ay sections of the fro nt panel. Front and rear panel control s are
in divi du ally loc ated and described in Figures 3-8 and 3- 9.
3-33. FUNCTI ON SELECTION CONTROLS
3- 34. The funct i on selection section of the front pa nel contains the POWER (S tb y/ On ), and
Rese t keys, Functi on keys gro up ( wit hin the boarder outline ) and Gate Time / Delay control.
3- 35. The POWER key se ts the 5315 A/ B eit her to ON or STBY (Standby). In th eON position (IN)
po we r is s upplied to en ti re instrumen t. In th e S TBY po si tio n ( OUT ) unregu lated dc is s upplied
o nl y to Ba tt ery- Pack charging circuits ( Optio n 002 ). The Reset key cle ars and updates the display
f
or c ontinuo us measur ement modes, a nd resets the counter in totalize modes.
3-
36. Each of the ke ys wit hin the outlined fu nction g ro up can se lect one of t wo f unction s, as
f oll ows: W ith the Blue c olo red shi ft key in the "OU T" po si ti on, the keys select the function
labeled above (i.e., FR EQ A, T. I. A- B, etc.). With the Sh ift key in the " I N" position, the ke ys select
the
function labeled in bl ue b elow (i.e., PER A, T.I. AVG A- B, etc.).
3 -3 7. Th e GATE TIME/ DEl AY co n tro l determ in es the amount of gate ti me per measurement,
co nti nuo us ly adjustable over a range of 50 ms to 10 s. Th e se lected gate ti me may be di splayed by
pressing
th e GATE TIME function key, and the Blue shift key. In th e T. I. DElA Y mod e of operation
the contro l determine s the amou nt of t im e the Start Channel is he ld off or " dela yed" { se e para-
graph 3-19}. The
amount of " del ay" may be di splayed by pressing the TI A- B, T.I. DELAY, and
Blue s
hi ft key simultane ou sly. In th e T.I. A- B mode of operatio n, the GATE TI ME/DElAY
c on tro l determine s the sample rate.
3-38. SIGNAL CONDITIONING CONTROLS
3- 39 . A full comp l iment of signal co nd i tioni ng co n tro ls are provid ed for each channel (A and B)
input ( see Figure 3-4). Th ese controls a llo w the se lec tio n of Attenuati on (Xl , X 20 ), Slope ( po sitive
or negative) and i nput coupling ( AC or DC). The S EP / COM A switch allows the se l ectio n of
separate Channel A and B input in the S EP position. The COM A pos itio n disconnects the Cha n-
nel B Input BN C, and con nects both Channel A and Cha nne l B in put amp lifi ers to the
Cha
nn el A in put .
3-5
