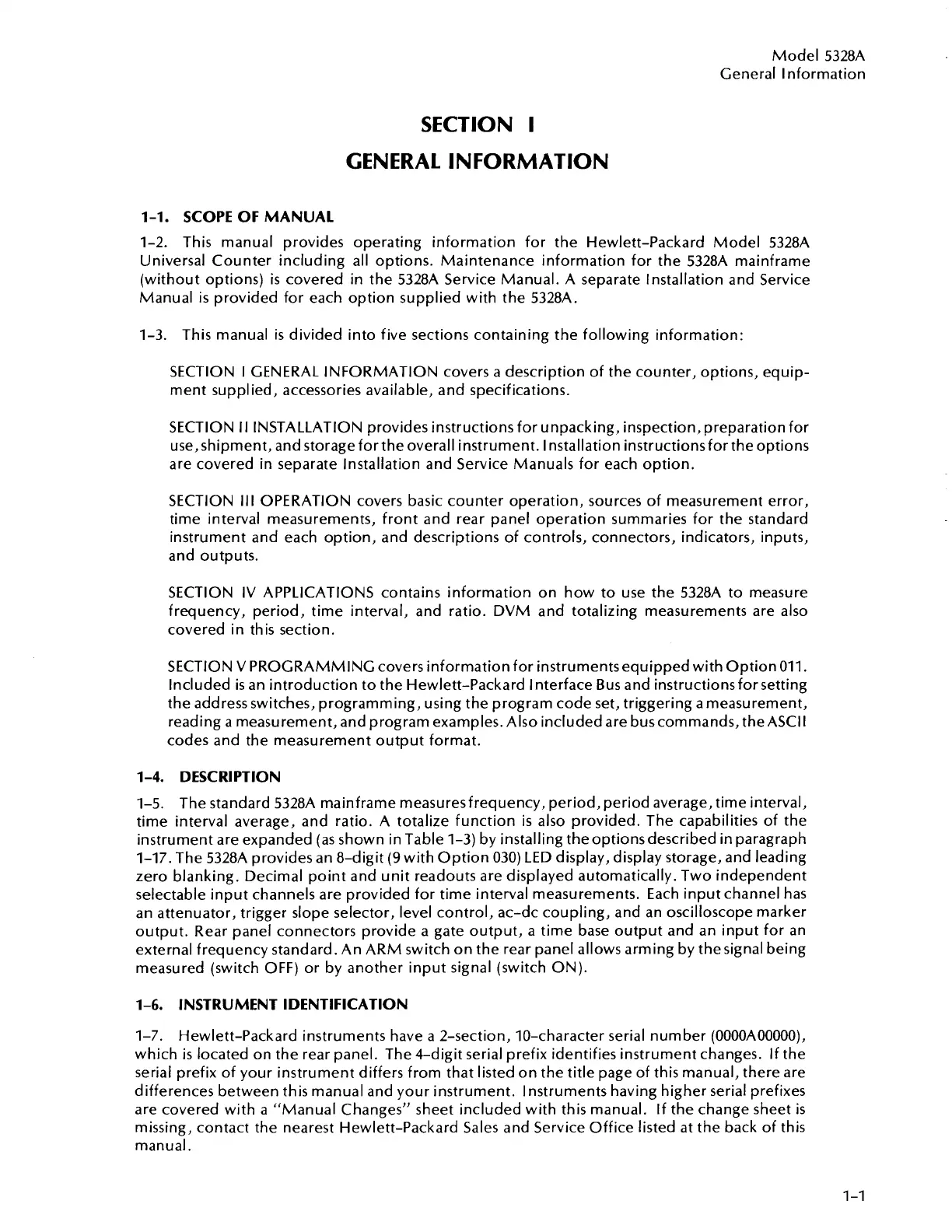

SECTION I
GENERAL INFORMATION
1-1. SCOPE OF MANUAL
1-2. This manual provides operating information for the Hewlett-Packard Model 5328A
Universal Counter including all options. Maintenance information for the 5328A mainframe
(without options)
is covered in the 5328A Service Manual. A separate Installation and Service
Manual
is provided for each option supplied with the 5328A.
1-3. This manual
is divided into five sections containing the following information:
SECTION
I GENERAL INFORMATION covers a description of the counter, options, equip-
ment supplied, accessories available, and specifications.
SECTION
II INSTALLATION provides instructions for unpacking, inspection, preparation for
use, shipment, and storage for the overall instrument. Installation instructionsfor the options
are covered in separate Installation and Service Manuals for each option.
SECTION Ill OPERATION covers basic counter operation, sources of measurement error,
time interval measurements, front and rear panel operation summaries for the standard
instrument and each option, and descriptions of controls, connectors, indicators, inputs,
and outputs.
SECTION IV APPLICATIONS contains information on how to use the 5328A to measure
frequency, period, time interval, and ratio. DVM and totalizing measurements are also
covered in this section.
SECTION
V PROGRAMMING covers information for instruments equipped with Option 011.
Included
is an introduction to the Hewlett-Packard Interface Bus and instructionsfor setting
the address switches, programming, using the program code set, triggering
a measurement,
reading a measurement, and program examples. Also included are buscommands, the ASCII
codes and the measurement output format.
1-4.
DESCRIPTION
1-5. The standard 5328A mainframe measuresfrequency, period, period average, time interval,
time interval average, and ratio. A totalize function
is also provided. The capabilities of the
instrument are expanded
(as shown in Table 1-3) by installing the options described in paragraph
1-17. The 5328A provides an 8-digit
(9 with Option 030) LED display, display storage, and leading
zero blanking. Decimal point and unit readouts are displayed automatically. Two independent
selectable input channels are provided for time interval measurements. Each input channel has
an attenuator, trigger slope selector, level control, ac-dc coupling, and an oscilloscope marker
output. Rear panel connectors provide a gate output, a time base output and an input for an
external frequency standard. An ARM switch on the rear panel allows arming by thesignal being
measured (switch OFF) or by another input signal (switch ON).
1-6.
INSTRUMENT IDENTIFICATION
1-7.
Hewlett-Packard instruments have
a 2-section, 10-character serial number (0000A00000),
which
is located on the rear panel. The 4-digit serial prefix identifies instrument changes. If the
serial prefix of your instrument differs from that listed on the title page of this manual, there are
differences between this manual and your instrument. Instruments having higher serial prefixes
are covered with
a "Manual Changes" sheet included with this manual. If the change sheet is
missing, contact the nearest Hewlett-Packard Sales and Service Office listed at the back of this
manual.
