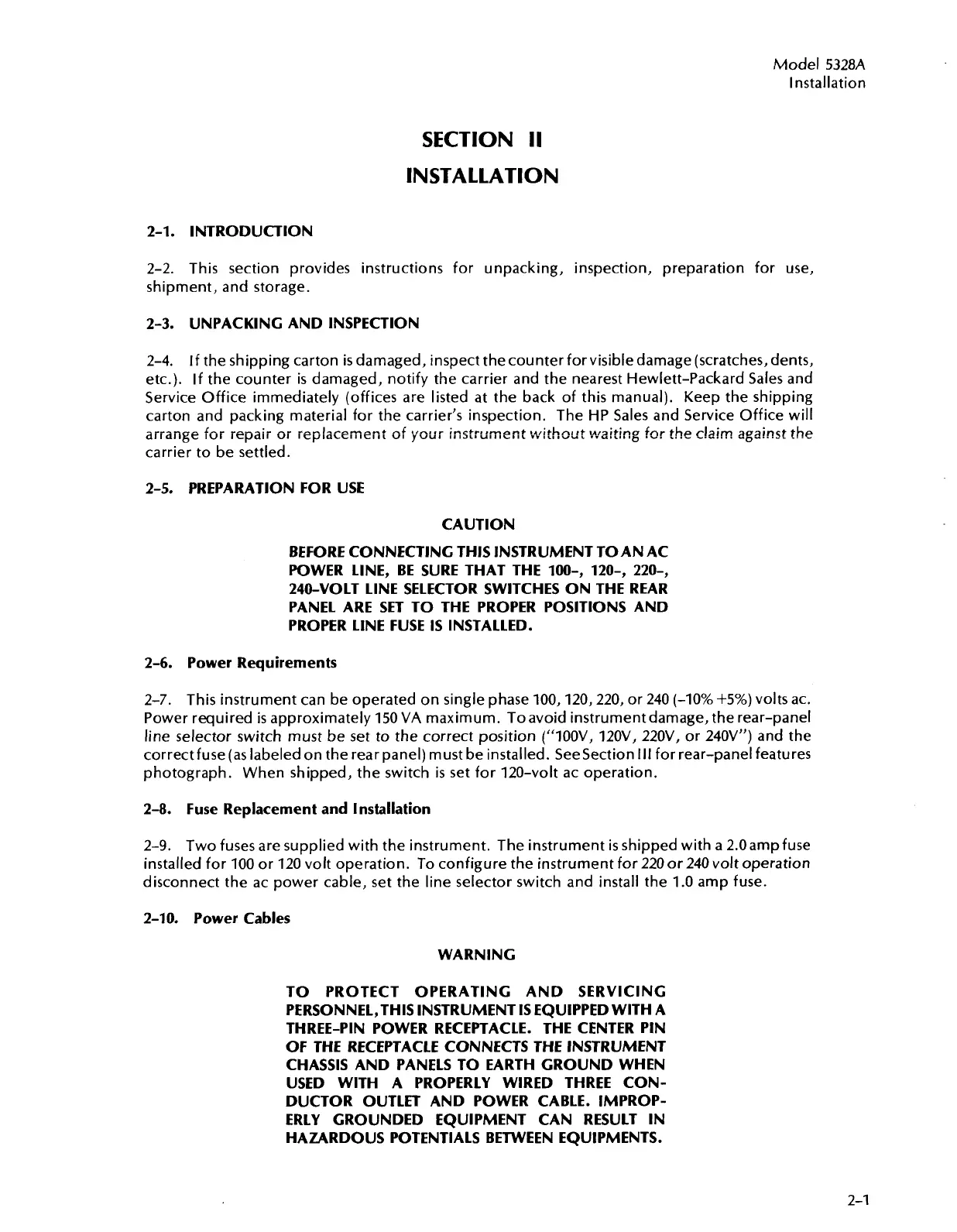

Model 5328A
l
nstallation
SECTION
II
INSTALLATION
2-1.
INTRODUCTION
2-2. This section provides instructions for unpacking, inspection, preparation for use,
shipment, and storage.
2-3.
UNPACKING AND INSPECTION
2-4. If the shipping carton
is
damaged, inspect the counter for visible damage (scratches, dents,
etc.). If the counter
is
damaged, notify the carrier and the nearest Hewlett-Packard Sales and
Service Office immediately (offices are listed at the back of this manual). Keep the shipping
carton and packing
material for the carrier's inspection. The HP Sales and Service Office will
arrange
for
repair
or
replacemen:
of
you:
ifi:c:ument
~ithegt
:.caiting
for
the
claim
auainct the
carrier to be settled.
2-5.
PREPARATION FOR USE
CAUTION
BEFORE CONNECTING THIS INSTRUMENT TO AN AC
POWER LINE, BE SURE THAT THE
loo-,
120-, 220-,
240-VOLT LlNE SELECTOR SWITCHES ON THE REAR
PANEL ARE SET TO THE PROPER POSITIONS AND
PROPER LlNE FUSE IS INSTALLED.
2-6.
Power Requirements
2-7. This instrument can be operated on single phase 100,120,220, or 240 (-10%
+5%)
volts ac.
Power required
is
approximately 150 VA maximum. Toavoid instrument damage, the rear-panel
line selector switch must be set to the correct position ("IOOV, 120V, 220V, or 240V") and the
correct fuse (as
labeled on the rear panel) must be installed. Seesection
Ill
for rear-panel features
photograph. When shipped, the switch
is
set for 120-volt ac operation.
2-8.
Fuse Replacement and Installation
2-9. Two fuses are supplied with the instrument. The instrument
is
shipped with a 2.0ampfuse
installed for 100 or 120 volt operation. To configure the instrument for 220or 240volt operation
disconnect the ac power
cable, set the line selector switch and install the 1.0 amp fuse.
2-10.
Power Cables
WARNING
TO PROTECT OPERATING AND SERVICING
PERSONNEL,THIS INSTRUMENT IS EQUIPPED WlTH A
THREE-PIN POWER RECEPTACLE.
THE CENTER PIN
OF THE RECEPTACLE CONNECTS THE INSTRUMENT
CHASSIS AND PANELS TO EARTH GROUND WHEN
USED
WlTH A PROPERLY WIRED THREE CON-
DUCTOR OUTLET AND POWER CABLE. IMPROP-
ERLY GROUNDED EQUIPMENT CAN RESULT
IN
HAZARDOUS POTENTIALS BETWEEN EQUIPMENTS.
