C-10

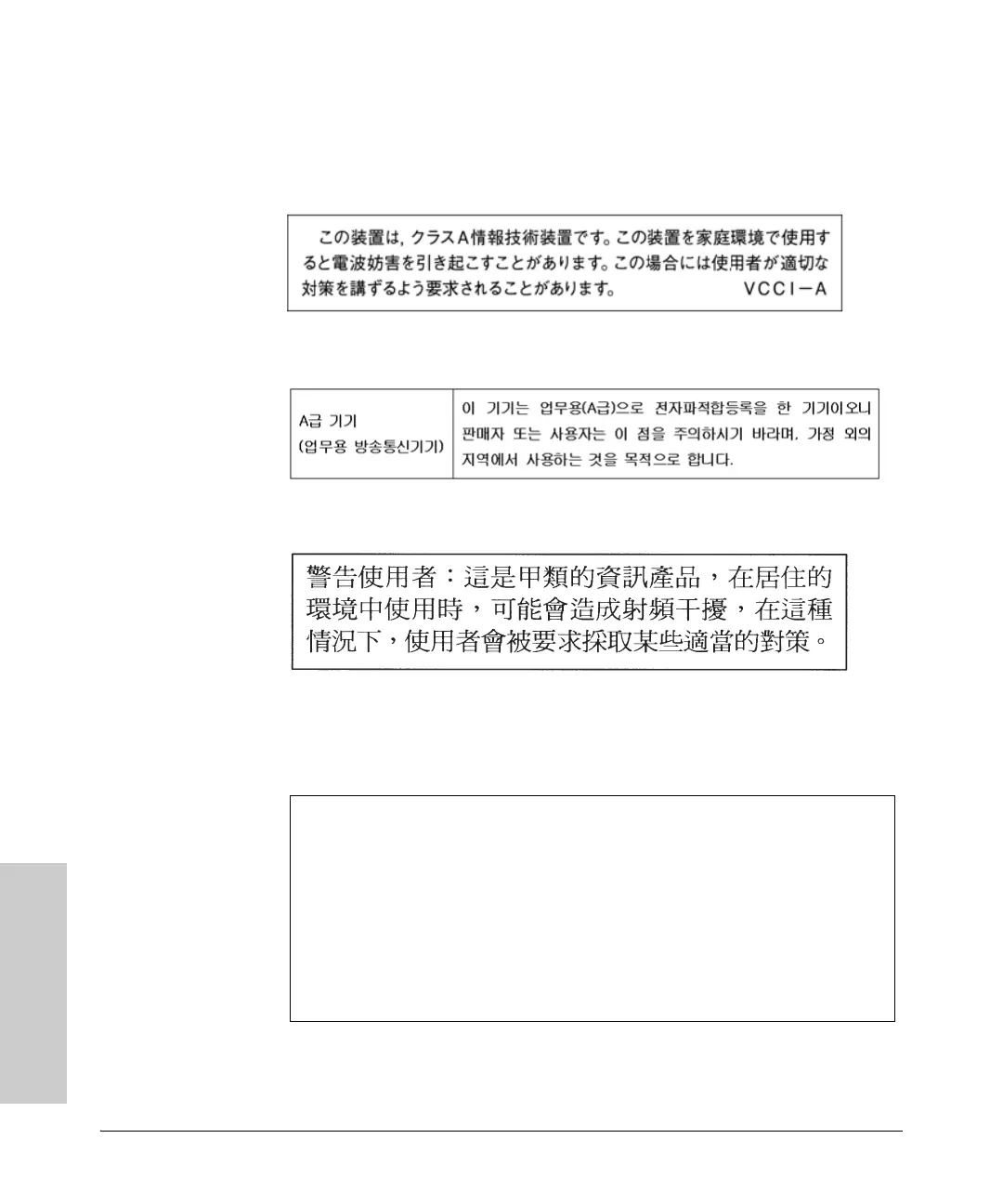

Safety and Regulatory Statements
EMC Regulatory Statements
Safety and Regulatory
Statements
Japan
VCCI Class A
Korea
Ta
i
w
a
n
Regulatory Model Identification Number
For regulatory iden
tification purposes, the HP 5400R zl2
Switches are assigned a Regulatory Model Number
. The
Regulatory Model Number fo
r these switches is RSVLC-
1301.
This regulatory number sh
ould not be confused with the
marketing name (HP 5400R zl
2 Switches), or product
numbers (J8697A, J8698A, J8699A, and J8700A).
