7–8 360201-002 Service Reference Guide, dc5000
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis
✎
The computer automatically recognizes the additional memory when the computer is turned on.
To reassemble the computer, reverse the removal procedure.
7.7 PCI Expansion Card
1. Prepare the computer for disassembly (Section 7.1, “Preparation for Disassembly”).
1. Remove the computer access panel (Section 7.3, “Computer Access Panel”).
2. .Disconnect all cables attached to the expansion cards.
3. If you are installing a card for the first time, go to step 6.
If you are removing an existing card, open the release latch as described in step 6 then go to
step 8.

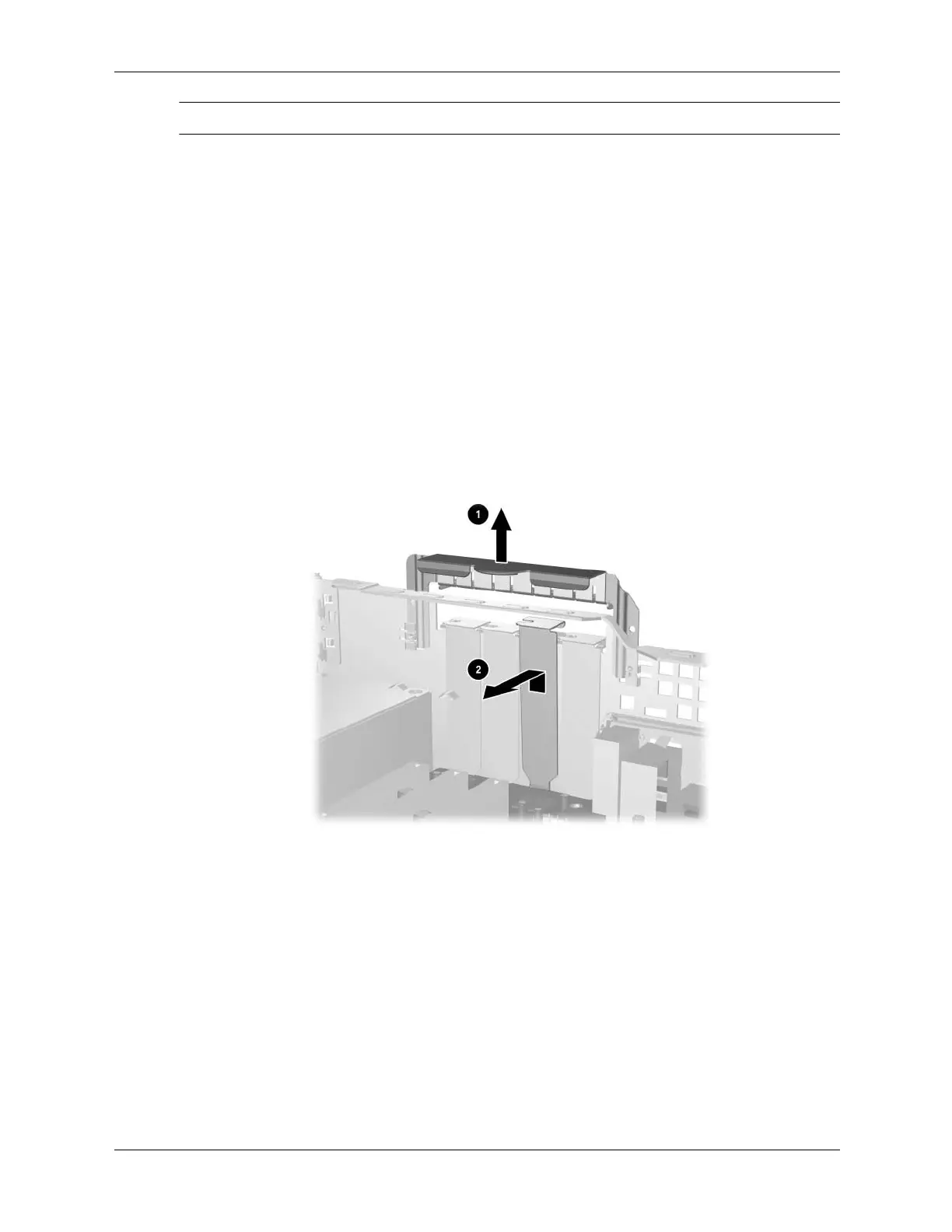

4. If you are installing an expansion card in a vacant socket, release the expansion card latch 1
that secures the PCI slot covers by pulling the latch up.
5. Remove the slot cover by sliding it up and off 2.
