Service Reference Guide, dc5000 360201-002 6–31
Removal and Replacement Procedures— Microtower (µT) Chassis
6.16 Speaker
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove the access panel and rotate the computer so the system board is parallel to the table
to make it easier to work on (
Section 6.3, “Access Panel”).
3. Move/remove any components necessary to gain access to the speaker.
4. Disconnect the speaker wire from the system board connector.

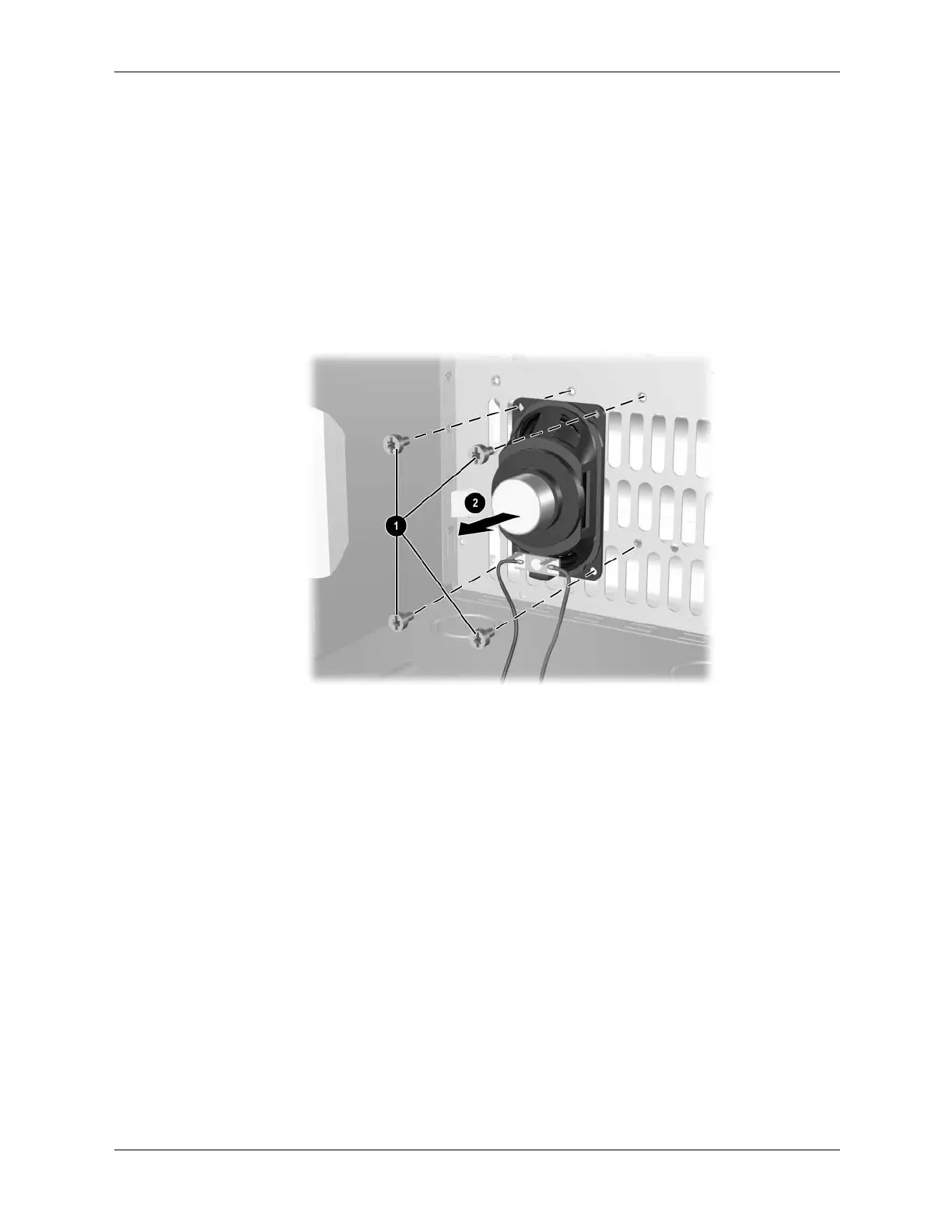

5. Remove the four screws 1, that secure the speaker to the chassis.
6. Remove the speaker 2.
To install the speaker, reverse the removal procedures.
