Service Reference Guide, dc5000 360201-002 7–21
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis
7.10 Power Switch Assembly
1. Prepare the computer for disassembly (Section 7.1, “Preparation for Disassembly”).
2. Disconnect the power switch/LED cable from the system board.
3. Carefully cut the cable tie that secures the power switch cable to the power supply cable
cable bundle.
Ä
CAUTION: Be careful when cutting the cable tie not to cut any cables.

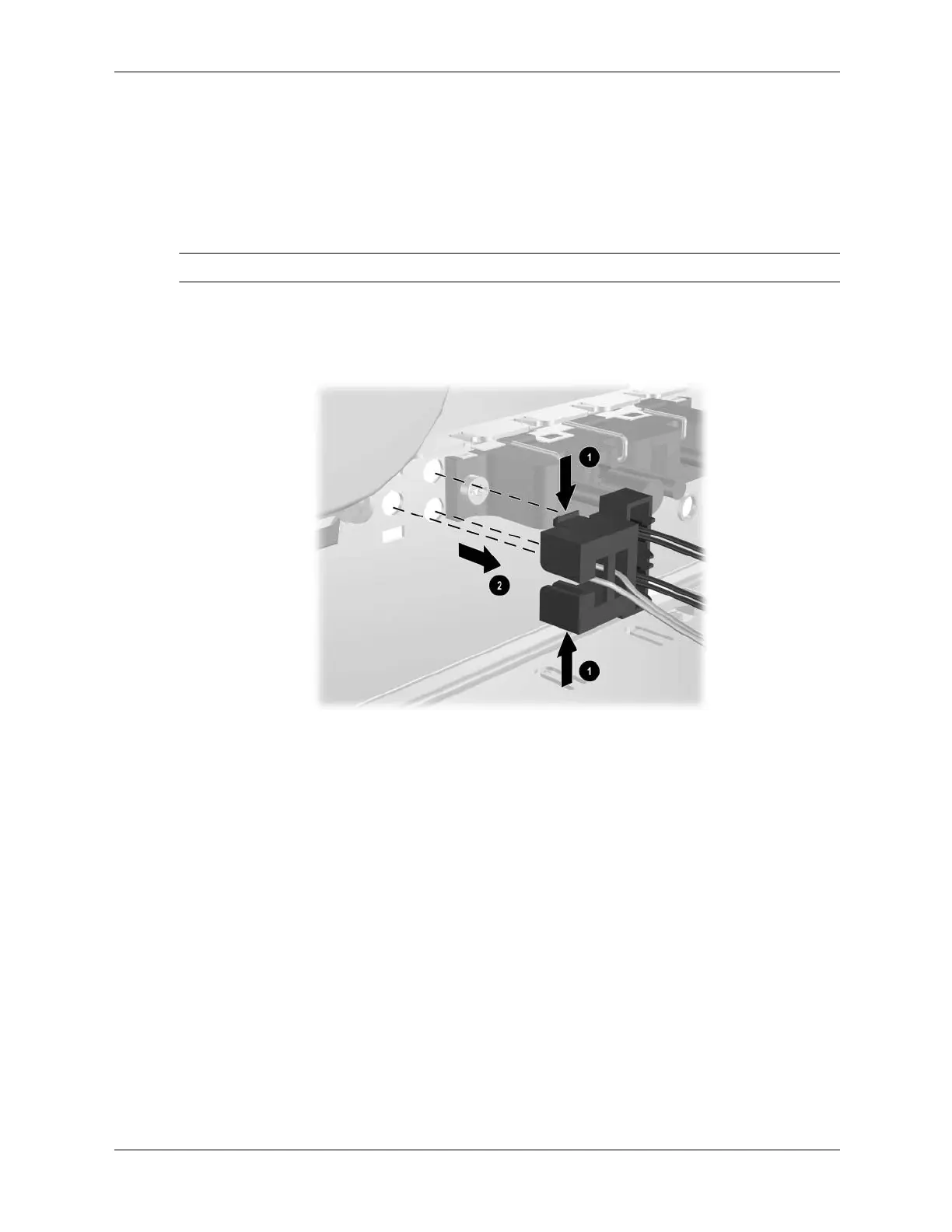

4. Squeeze the switch holder retaining clips together at the front of the chassis 1 and push the
switch assembly out of the chassis 2.
To install the power switch assembly, reverse the removal procedure.
