Service Reference Guide, dc5000 360201-002 6–23
Removal and Replacement Procedures— Microtower (µT) Chassis
6.12 Power Switch Assembly
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove the access panel and rotate the computer so the system board is parallel to the table
to make it easier to work on (
Section 6.3, “Access Panel”).
3. Remove the front I/O panel assembly (Section 6.10, “Front I/O Panel Housing Assembly”).

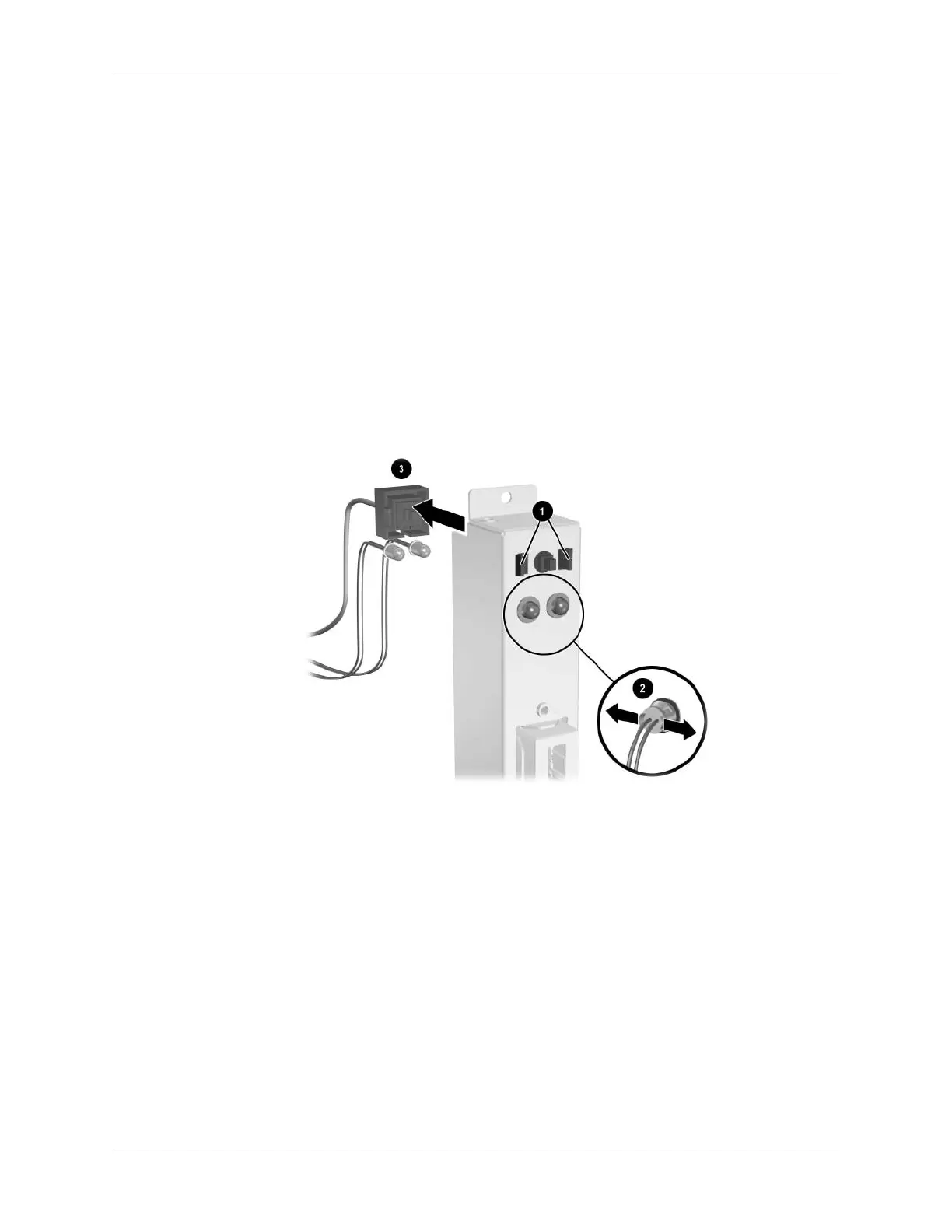

4. Squeeze the switch holder retaining clips together 1 and push the switch assembly out of the
front I/O panel housing.
5. From the inside of the I/O panel assembly, spread the clips 2 that secure the LEDs in place
and then push the LEDs out of the retainers from the front side.
6. If necessary, compress the retaining clips on the LED holders and push the holders out of the
front of the I/O panel housing.
7. Remove the switch from the switch holder 3.
8. To install the power switch assembly install the switch into the switch holder.
