HP Integrity BL860c i2 User Manual

Hot-plug SAS disk drives
The server blade supports up to two hot-plug SAS drives.
CAUTION: To prevent improper cooling and thermal damage, do not operate the server blade
or the enclosure unless all hard drive and device bays are populated with either a component or
a blank.
IMPORTANT: The disk drive does not seat properly when 180° out of alignment. Verify the
orientation before insertion.
NOTE: For a list of supported disk drives for the server blade, see: “Server blade components
list” (page 108).

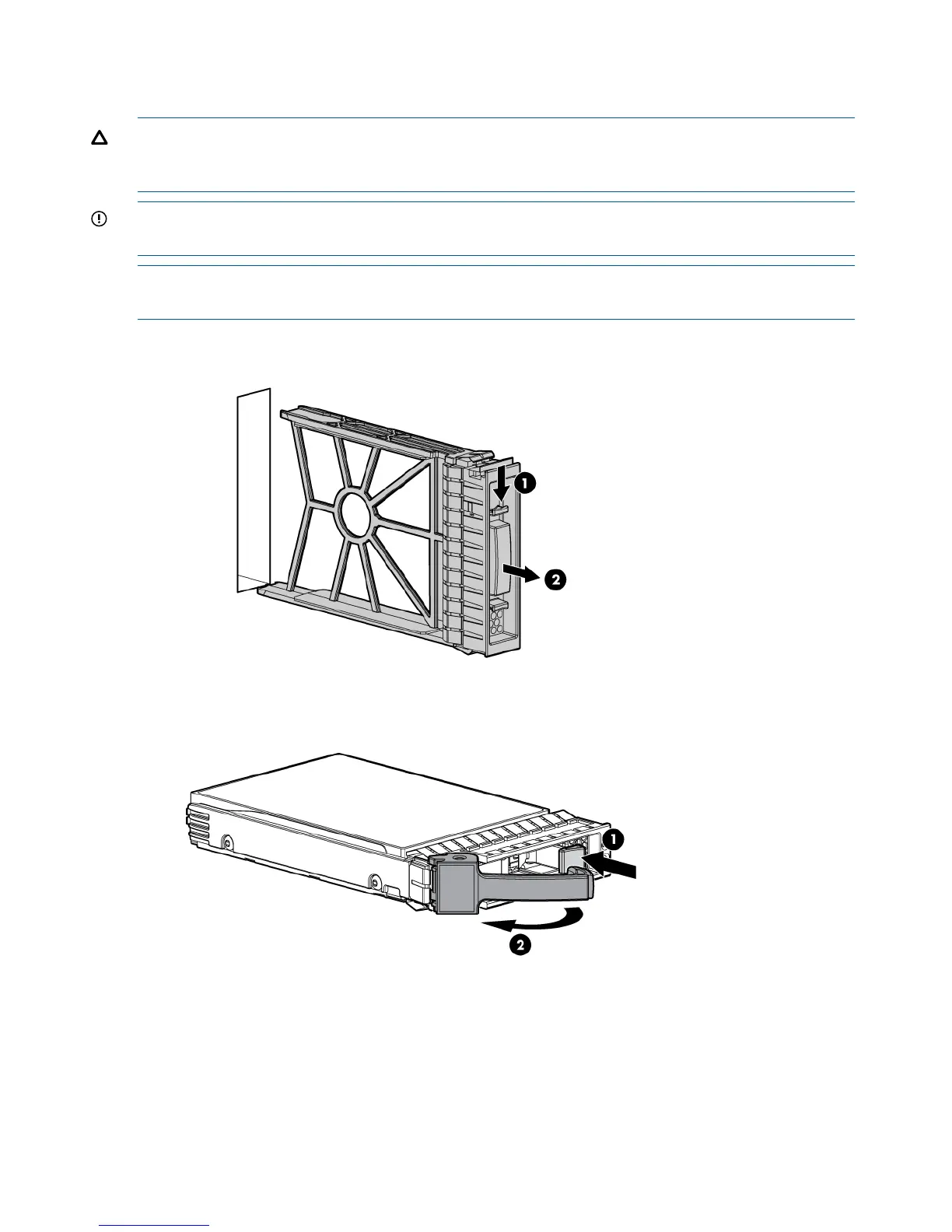

1. Remove the hard drive blank.
2. Prepare the hard drive.
3. Slide the drive into the cage until it is fully seated.
42 Optional components

HP Integrity BL860c i2 Specifications

General

Manufacturer	HP
Model	Integrity BL860c i2
Category	Server
Form Factor	Blade
Storage	Optional
Network	Ethernet
Processor	Intel Itanium Processor 9300 series
Number of Processors	1 to 2
Processor Speed	1.33 GHz to 1.73 GHz
Memory	Up to 128 GB
Memory Type	DDR3
Storage Type	SAS or SATA
Internal Storage	Up to 2 drives
Storage Controller	Smart Array P410i
Network Interface	Gigabit Ethernet
Power Supply	Redundant
Operating System	HP-UX, Linux
Form Factor Enclosure	Blade Enclosure
