Four Intelligent PDUs Without UPS – (NA/JPN and INTL, Single-Phase and
Three-Phase)
This illustration shows the power configuration for four iPDUs (without UPS) in a rack. For detailed
power specifications and connector types, see “Power Specifications” (page 45).

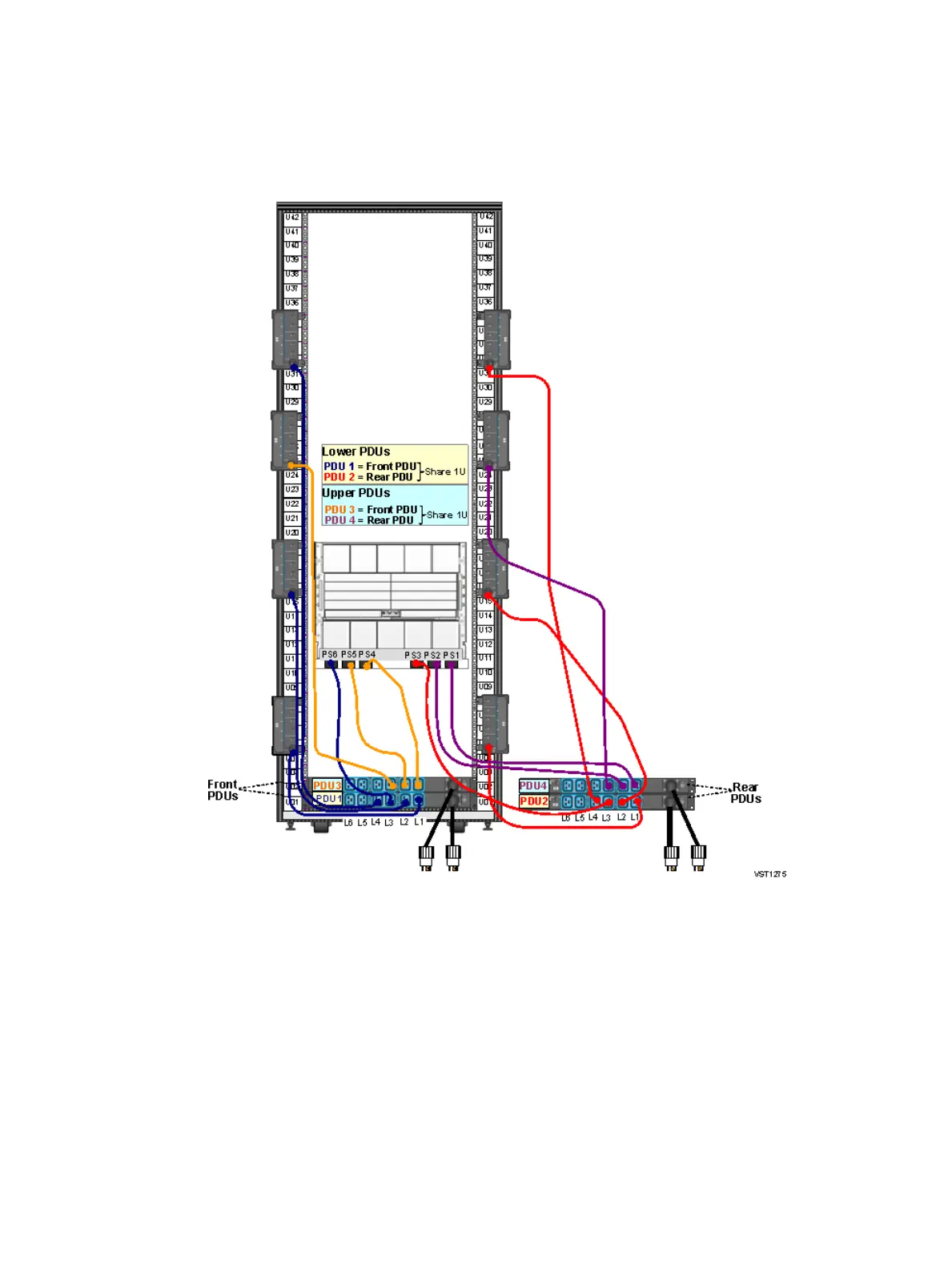

Figure 2 Four iPDUs Without UPS — (NA/JPN and INTL, Single-Phase and Three-Phase)
26 NS7 System Installation Specifications
