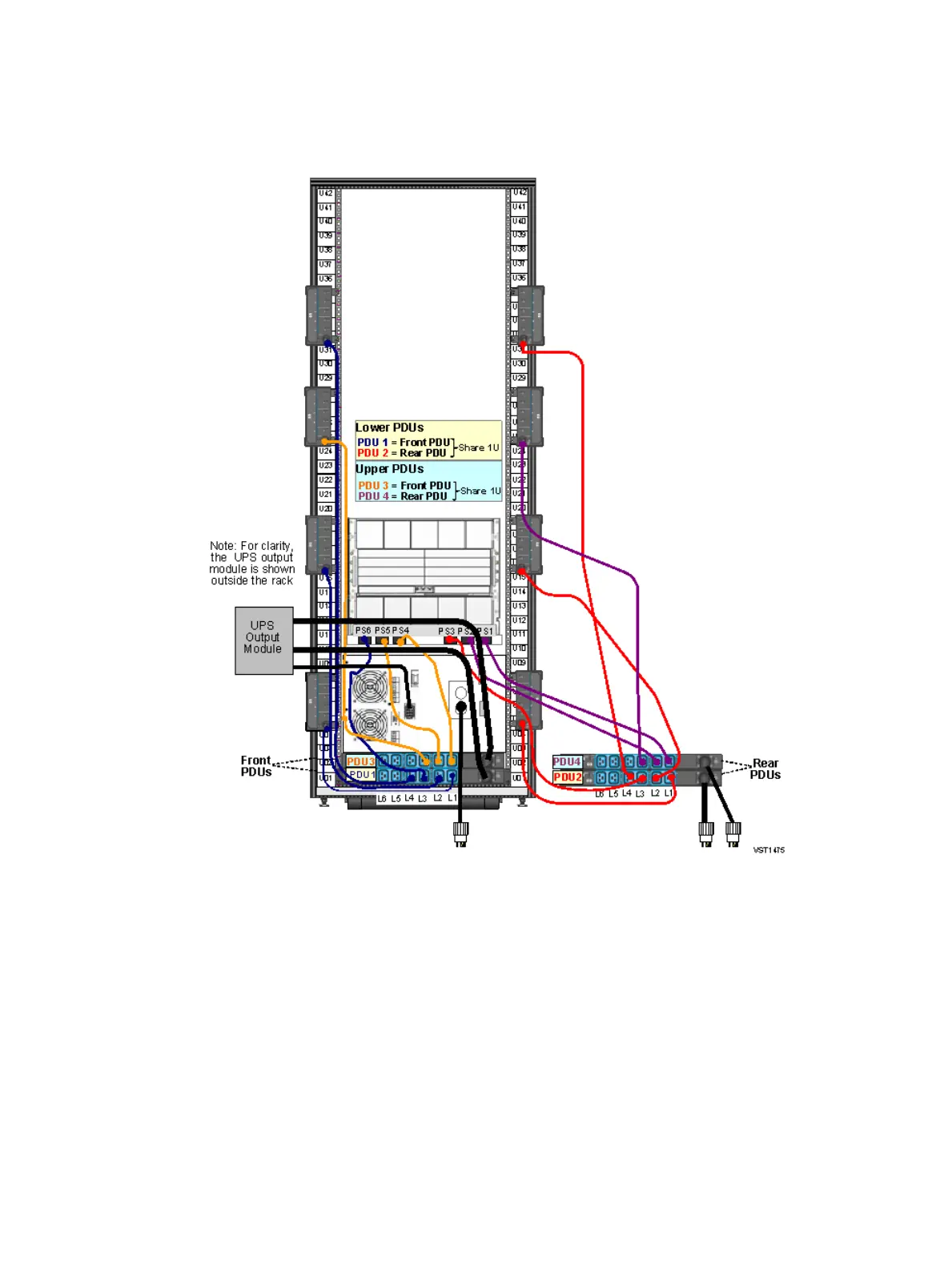

Four
Intelligent
PDUs
With
Three-Phase
UPS
(NA/JPN
and
INTL)
This
illustration
shows
the
power
configuration
for
four
iPDUs
and
a
three-phase
UPS
in
a
rack.
For
detailed
power
specifications
and
connector
types,
see
“Power
Specifications”
(page
45)
.
Figure
4
Four
iPDUs
With
Three-Phase
UPS
—
(NA/JPN
and
INTL)
28
NS7
System
Installation
Specifications
27
29
Table of Contents
Default Chapter
3
Table of Contents
3
About this Document
6
Supported Release Version Updates (Rvus)
6
New and Changed Information in 799257-004
6
New and Changed Information in 799257-003R
6
Publishing History
6
HPE Integrity Nonstop X NS7 Systems
7
Characteristics of the NS7 X1
7
Example NS7 System Configurations (42U and 36U)
8
Core Licensing
9
Characteristics of the NS7 X2
9
Nonstop X NS7 Standard and Optional Hardware
10
System Management Tools
18
Technical Document for NS7 Systems
19
Component Location and Identification
19
Site Preparation Guidelines for the NS7 System
20
Rack Power and I/O Cable Entry
20
Emergency Power-Off Switches
20
Electrical Power and Grounding Quality
21
Cooling and Humidity Control
21
Weight
22
Flooring
22
Dust and Pollution Control
22
Zinc Particulates
22
Space for Receiving and Unpacking the System
22
Operational Space for an NS7 System
23
NS7 System Installation Specifications
24
Racks
24
Power Distribution Unit (PDU) Types for a Rack
24
Four Ipdus Without UPS - (NA/JPN and INTL, Single-Phase and Three-Phase)
26
Four Ipdus with Single-Phase UPS - (NA/JPN and INTL)
27
Four Ipdus with Three-Phase UPS - (NA/JPN and INTL)
28
Two Intelligent Pdus Without UPS- (NA/JPN and INTL, Single-Phase and Three-Phase)
29
Two Intelligent Pdus with Single-Phase - (NA/JPN and INTL)
30
Two Intelligent Pdus with Three-Phase UPS - (NA/JPN and INTL)
31
Four Modular Pdus Without UPS - (NA/JPN and INTL, Single-Phase and Three-Phase)
32
Four Modular Pdus with Single-Phase UPS - (NA/JPN and INTL)
33
Four Modular Pdus with Three-Phase UPS - (NA/JPN and INTL)
34
Two Modular Pdus Without UPS - (NA/JPN and INTL, Single-Phase and Three-Phase)
35
Two Modular Pdus with a Single-Phase UPS - (NA/JPN and INTL)
36
Two Modular Pdus with a Three-Phase UPS - (NA/JPN and INTL)
37
AC Power Feeds in the Rack
38
Example of Bottom AC Power Feed in a Rack (Without UPS)
39
Example of Top AC Power Feed in a Rack (Without UPS)
40
Example of Top AC Power Feed in a Rack (with Single-Phase UPS)
41
Example of Bottom AC Power Feed in a Rack (with Single-Phase UPS)
42
Example of Top AC Power Feed in a Rack (with Three-Phase UPS)
43
Example of Bottom AC Power Feed in a Rack (with Three-Phase UPS)
44
AC Input Power for NS7 Racks
45
North America/Japan Single-Phase Power Specifications
45
North America/Japan Three-Phase Power Specifications
46
International Single-Phase Power Specifications
46
International Three-Phase Power Specifications
47
NS7 Enclosure Power Loads
48
Dimensions and Weights for NS7 AC Systems
50
Rack Stability for NS7 Systems
55
Environmental Specifications for NS7 AC Systems
55
Calculating Specifications for NS7 Enclosure Combinations
57
Example of Rack Load Calculations
58
Managing NS7 System Resources
59
Planning Kernel Managed Swap (KMS) Space
59
Default Naming Conventions for NS7 Systems
59
Possible Values of Disk and Tape Luns for NS7 Systems
60
HPE Integrity Nonstop X NS7 CG X2 System
61
Characteristics of the NS7 CG X2
61
NEBS Required Statements
63
NS7 CG X2 Standard and Optional Hardware
63
System Console
66
System Installation Specifications for NS7 CG Systems
70
DC Power Distribution for NS7 CG Systems
70
Dimensions and Weights of NS7 CG Systems
73
Rack Weight Worksheet
74
Environmental Specifications for NS7 CG Systems
75
Heat Dissipation Worksheet for NS7 CG X2 Seismic Rack
75
Site Power Cables for NS7 CG Systems
77
Support and Other Resources
78
Accessing Hewlett Packard Enterprise Support
78
Accessing Updates
78
Websites
78
Customer Self Repair
79
Remote Support
79
Documentation Feedback
79
A Cables
80
Cable Types and Connectors
80
B UPS and Data Center Power Configurations
81
Supported UPS Configurations
81
NS7 System with a Fault-Tolerant Data Center
82
NS7 System with a Rack-Mounted UPS
83
SAS Disk Enclosures with a Rack-Mounted UPS
84
Non-Supported UPS Configurations
85
NS7 System with a Data Center UPS, Single Power Rail
86
NS7 System with Data Center UPS, both Power Rails
87
NS7 System with Rack-Mounted UPS and Data Center UPS in Parallel
89
NS7 System with Two Rack-Mounted UPS in Parallel
90
NS7 System with Cascading UPS
91
C Warranty and Regulatory Information
93
Warranty Information
93
Regulatory Information
93
Belarus Kazakhstan Russia Marking
94
Turkey Rohs Material Content Declaration
95
Ukraine Rohs Material Content Declaration
95
Index
96
