HP Integrity NonStop X NS7 User Manual

Four Intelligent PDUs With Single-Phase UPS – (NA/JPN and INTL)

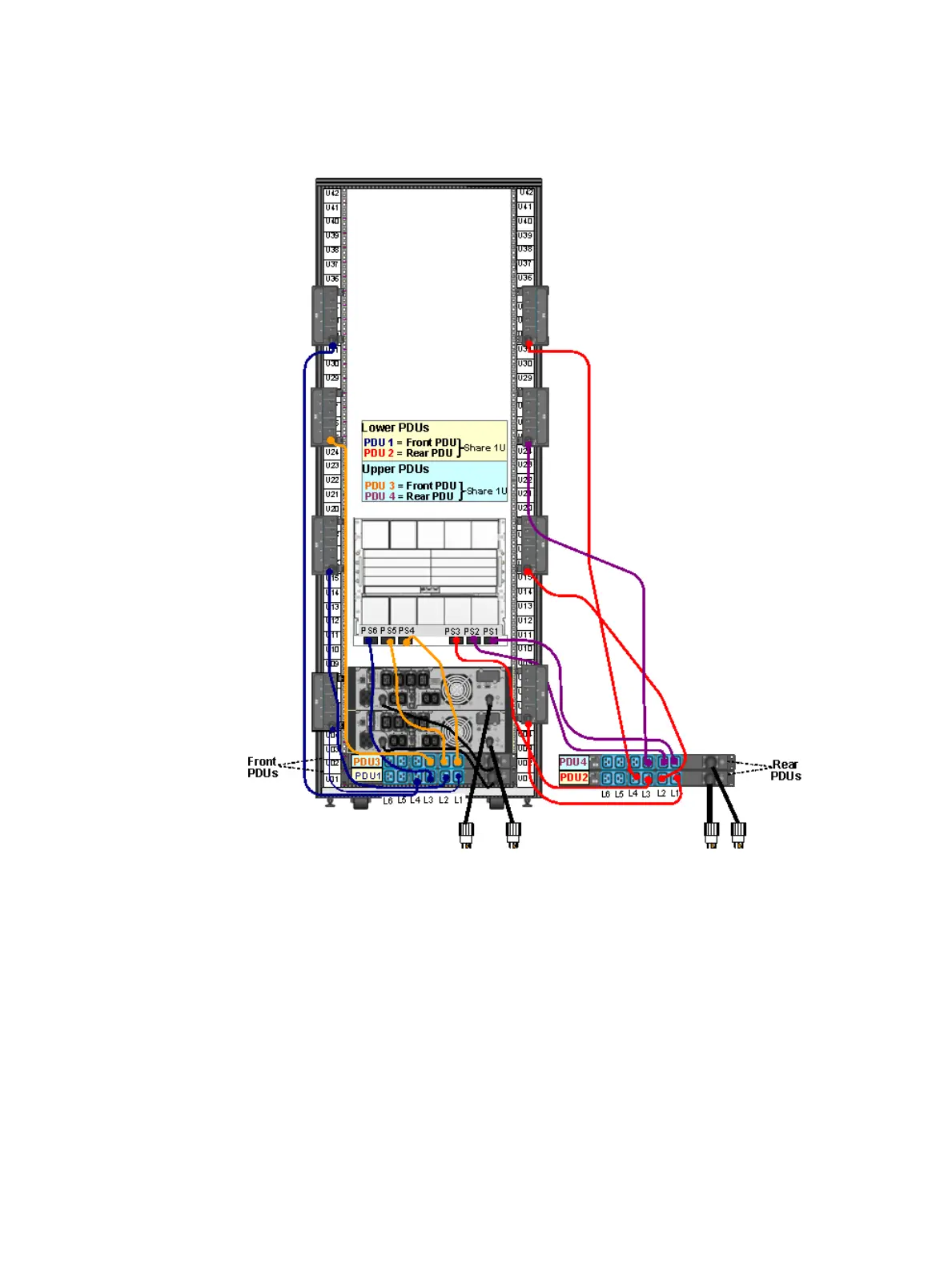

This illustration shows the power configuration for four iPDUs and two single-phase UPS's in a
rack. For detailed power specifications and connector types, see “Power Specifications” (page 45).
Figure 3 Four iPDUs With Single-Phase UPS — (NA/JPN and INTL)
Power Distribution Unit (PDU) Types for a Rack 27
