Two Intelligent PDUs With Three-Phase UPS — (NA/JPN and INTL)
This illustration shows the power configuration for two iPDUs and a three-phase UPS in a rack.
For detailed power specifications and connector types, see “Power Specifications” (page 45).

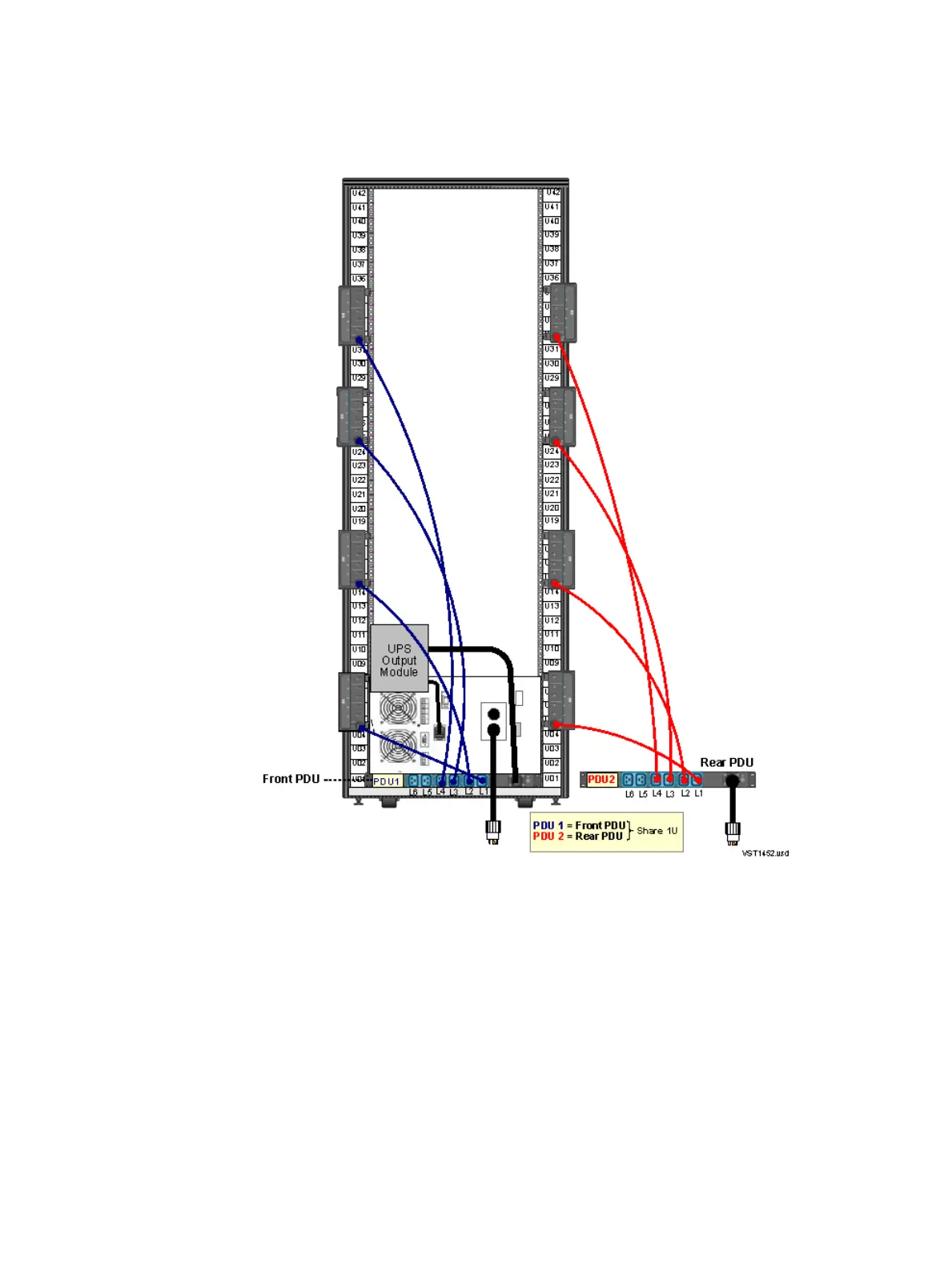

Figure 7 Two Intelligent PDUs With Three-Phase UPS — (NA/JPN and INTL)
Power Distribution Unit (PDU) Types for a Rack 31
