Dimensions and Weights for NS7 AC Systems
This subsection provides the dimensions and weights for racks and enclosures.

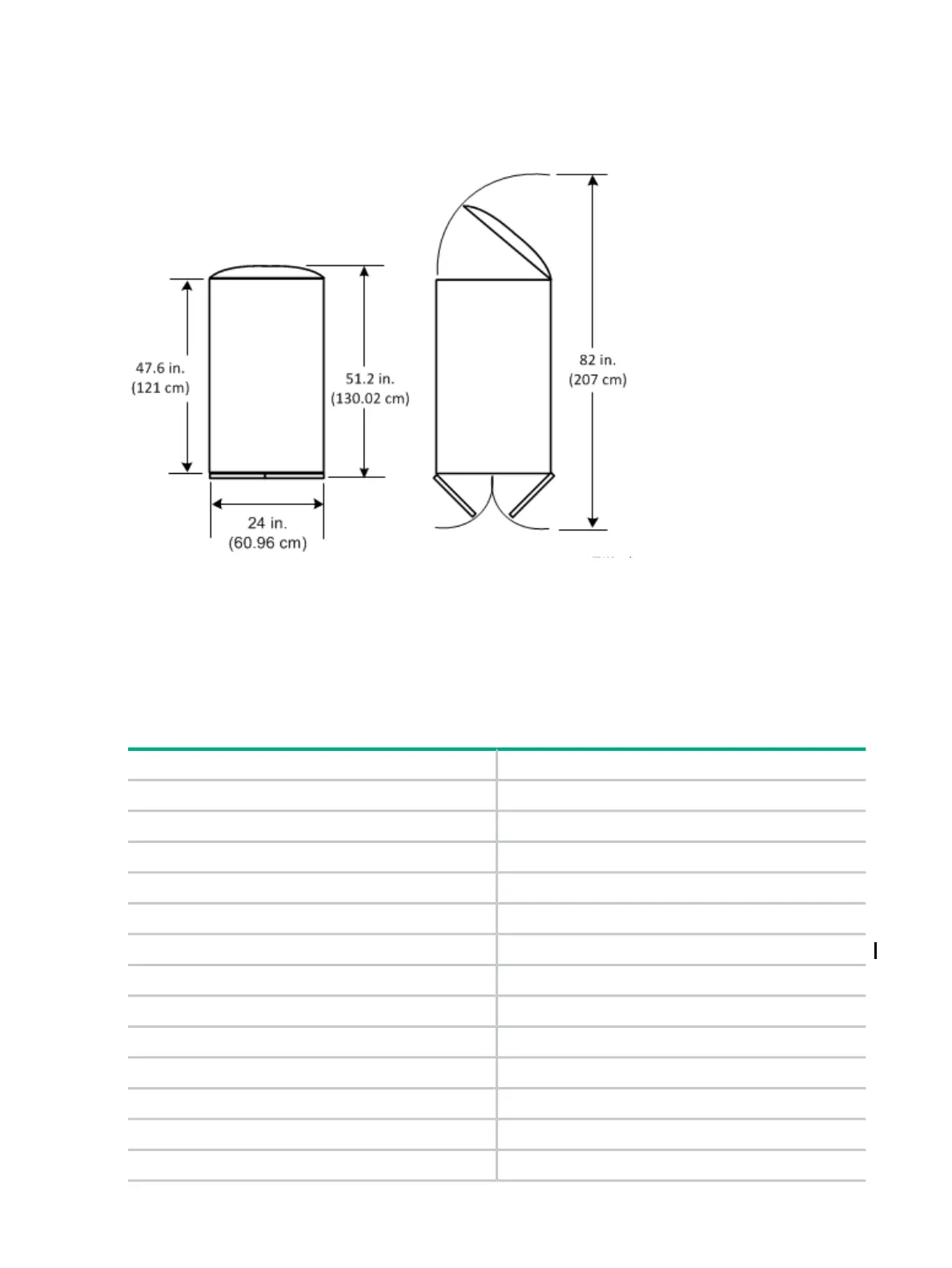

Plan View of the Racks
Service Clearances for NS7 Racks
Aisles: 6 feet (182.9 centimeters)
Front: 3 feet (91.4 centimeters)
Rear: 3 feet (91.4 centimeters)
Unit Sizes for NS7 Systems
Height (U)Enclosure Type
42 or 36Rack
10c7000 enclosure
2CLIMs
2SAS disk enclosures
1CLIM patch panel (RJ45 and Fiber)
1FDR IB ADI switch
1FDR IB managed switch, expansion
1IB FDR managed switch, IB cluster
1Maintenance switch (Ethernet)
3R5000 UPS (single-phase power)
3ERM for single-phase UPS
6R12000/3 UPS (three-phase power)
3ERM for three-phase UPS
50 NS7 System Installation Specifications
