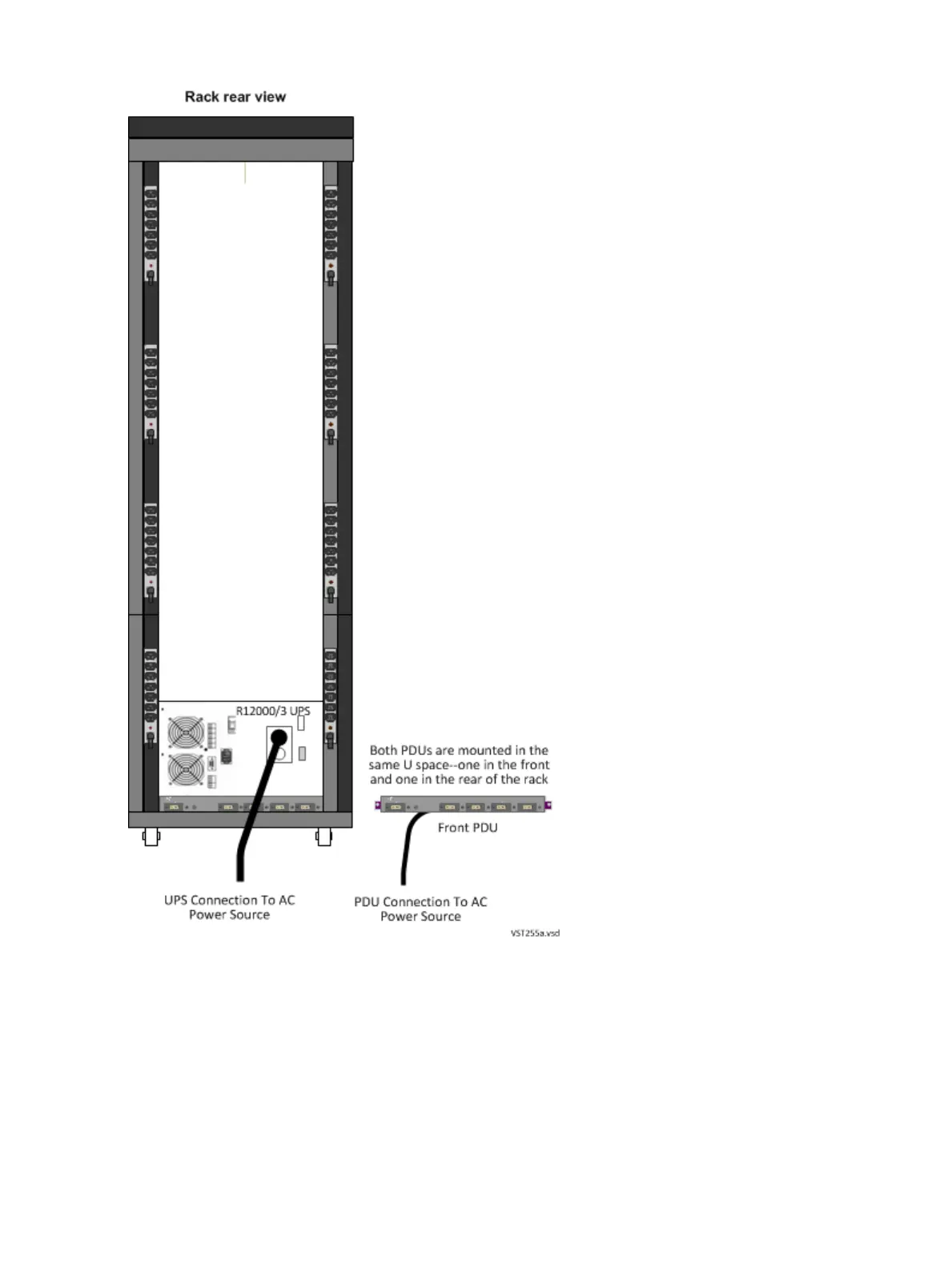

Figure 19 Example of Bottom AC Power Feed in a Rack (With Three-Phase UPS)
Each PDU is wired to distribute the load segments to its receptacles.
44 NS7 System Installation Specifications
