AC Input Power for NS7 Racks
This topic provides power specifications for AC input power in NS7 system racks.
Power Specifications
See...PhaseRegion
Table 3 (page 45)Single-PhaseNorth America/Japan
Table 4 (page 46)Three-Phase
Table 5 (page 46)Single-PhaseInternational
Table 6 (page 47)Three-Phase
CAUTION: Be sure the hardware configuration and resultant power loads of each rack within
the system do not exceed the capacity of the branch circuit according to applicable electrical
codes and regulations.
Select circuit breaker ratings according to local codes and any applicable regulations for the
circuit capacity. Note that circuit breaker ratings vary if your system includes an optional
rack-mounted UPS.

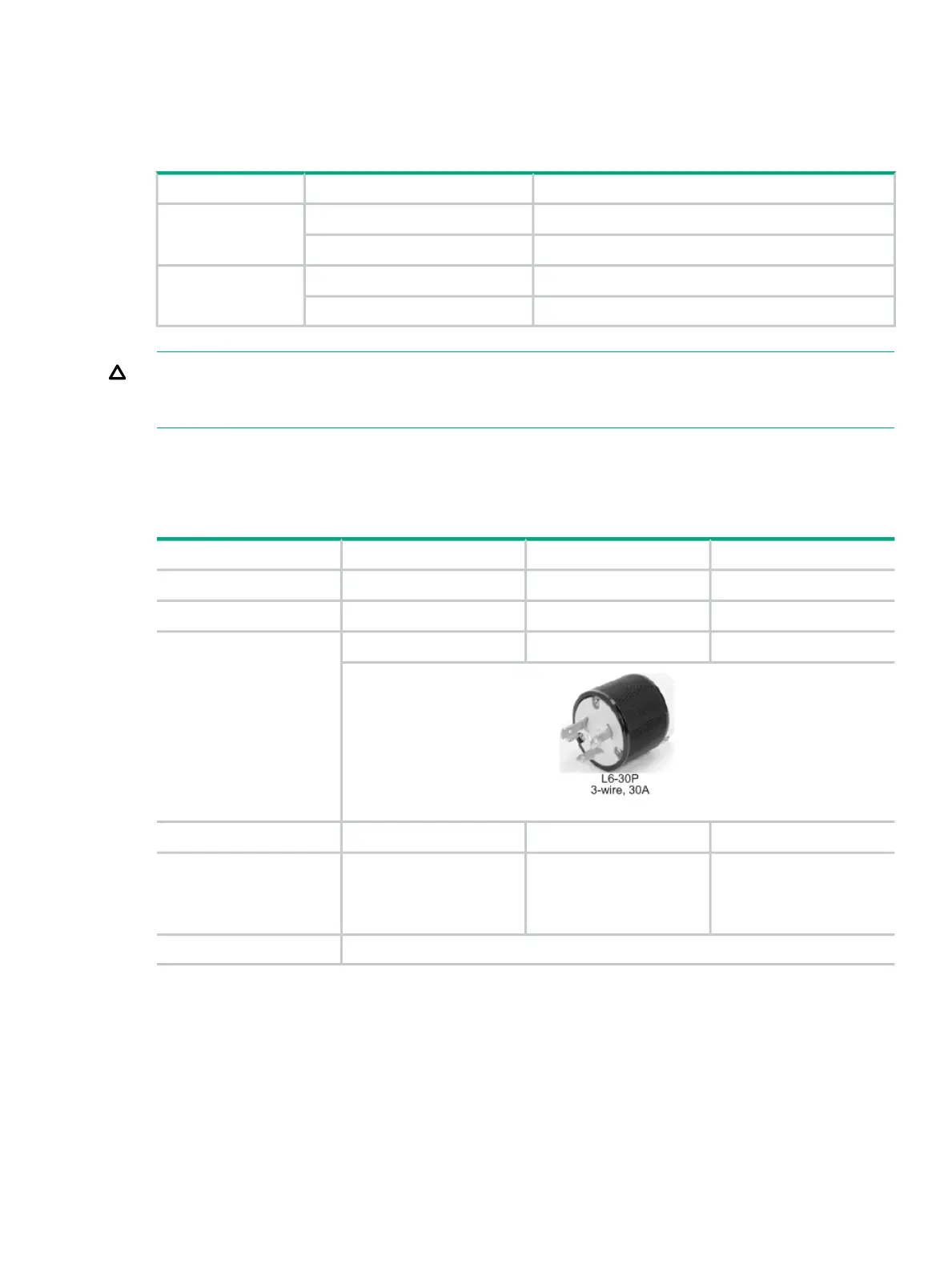

Table 3 North America/Japan Single-Phase Power Specifications
Modular PDU 1-phaseiPDU 1-phaseR5000 1-phase UPSNorth America/Japan
24 A24 A4500 WOutput Load
200 – 240 V200 – 208 V200 – 208 VInput Voltage
NEMA L6-30PNEMA L6-30PNEMA L6-30PInput Connector
N/AN/A200 – 208 VOutput Voltage
4 x C196 x C191 x L6-30ROutput Connectors
(28 x C13)(20 x C13)4 x C19
4 x C13
UPS outputs are connected to the compatible PDU inputs.Notes
AC Input Power for NS7 Racks 45
