Connecting the router to the network
Connect the router to the network before powering on the router. This section describes how to connect
the router to the network through Ethernet cables.
Connecting an Ethernet cable
1. Plug one end of an Ethernet twisted pair cable into the copper Ethernet port (RJ-45 port) to be
connected on the router.
2. Plug the other end of the cable into the RJ-45 port of the peer device.

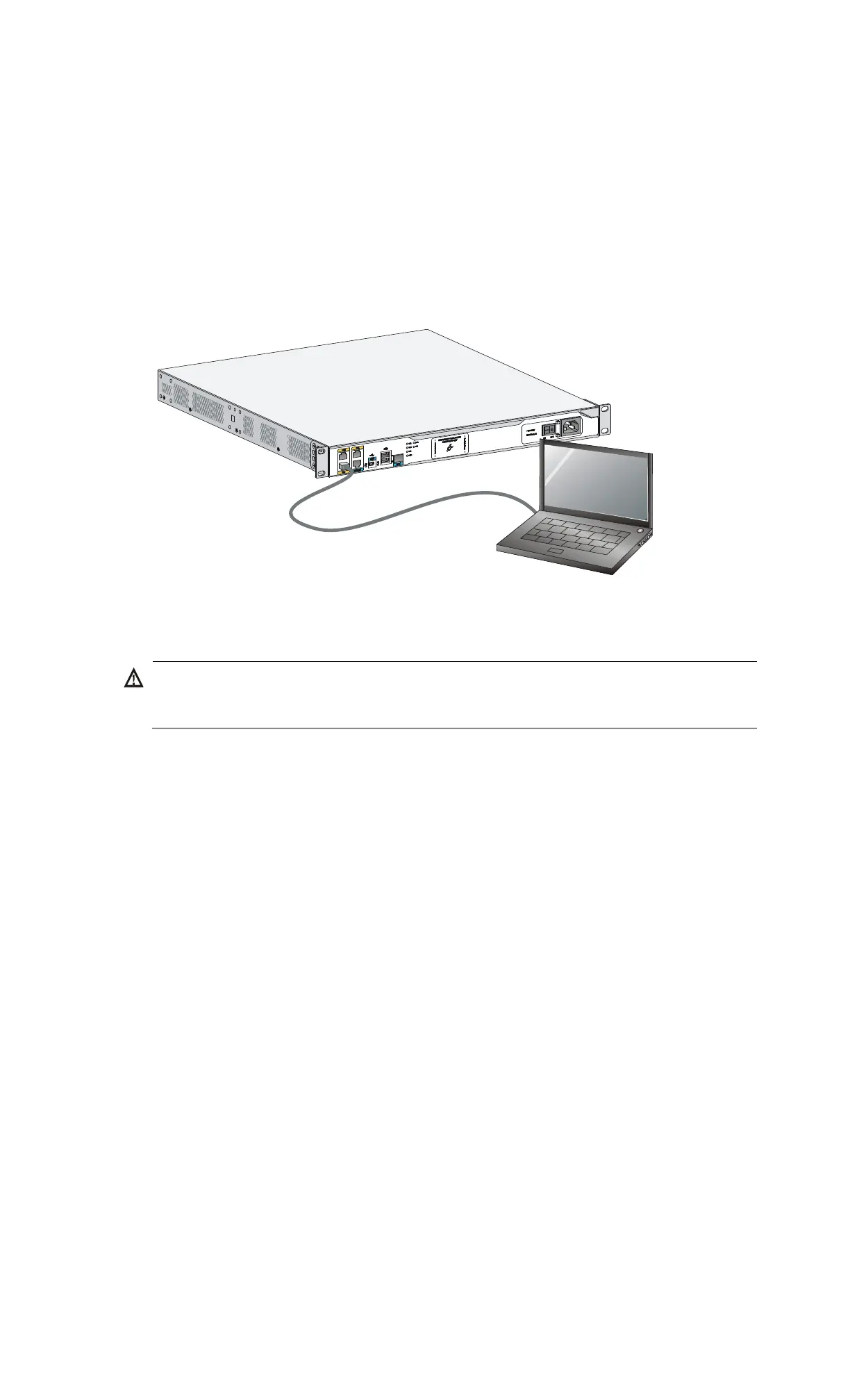

Figure 31 Connecting the router to a PC
Connecting an optical fiber
ARNING!
Do not stare into any fiber port when you connect an optical fiber. The laser li
ht emitted from the optical
fiber may hurt your eyes.
Follow these guidelines when you connect a fiber cable:
Never bend or curve a fiber when connecting it.
Make sure the Tx and Rx ends are properly connected.
Keep the fiber end clean.
Be sure to install the dust cover if the fiber port is not connected to a fiber connector.
To connect an optical fiber:
1. Remove the dust plug from a fiber port of the router.
2. Remove the dust cover from the transceiver module, and plug the end without a pull latch into the
fiber port.
3. Remove the dust cover from the fiber connector.
4. Identify the Rx and Tx ports. Plug the LC connector at one end of one fiber cable into the Rx port
of the router and the LC connector at the other end into the Tx port of the peer device. Plug the LC
