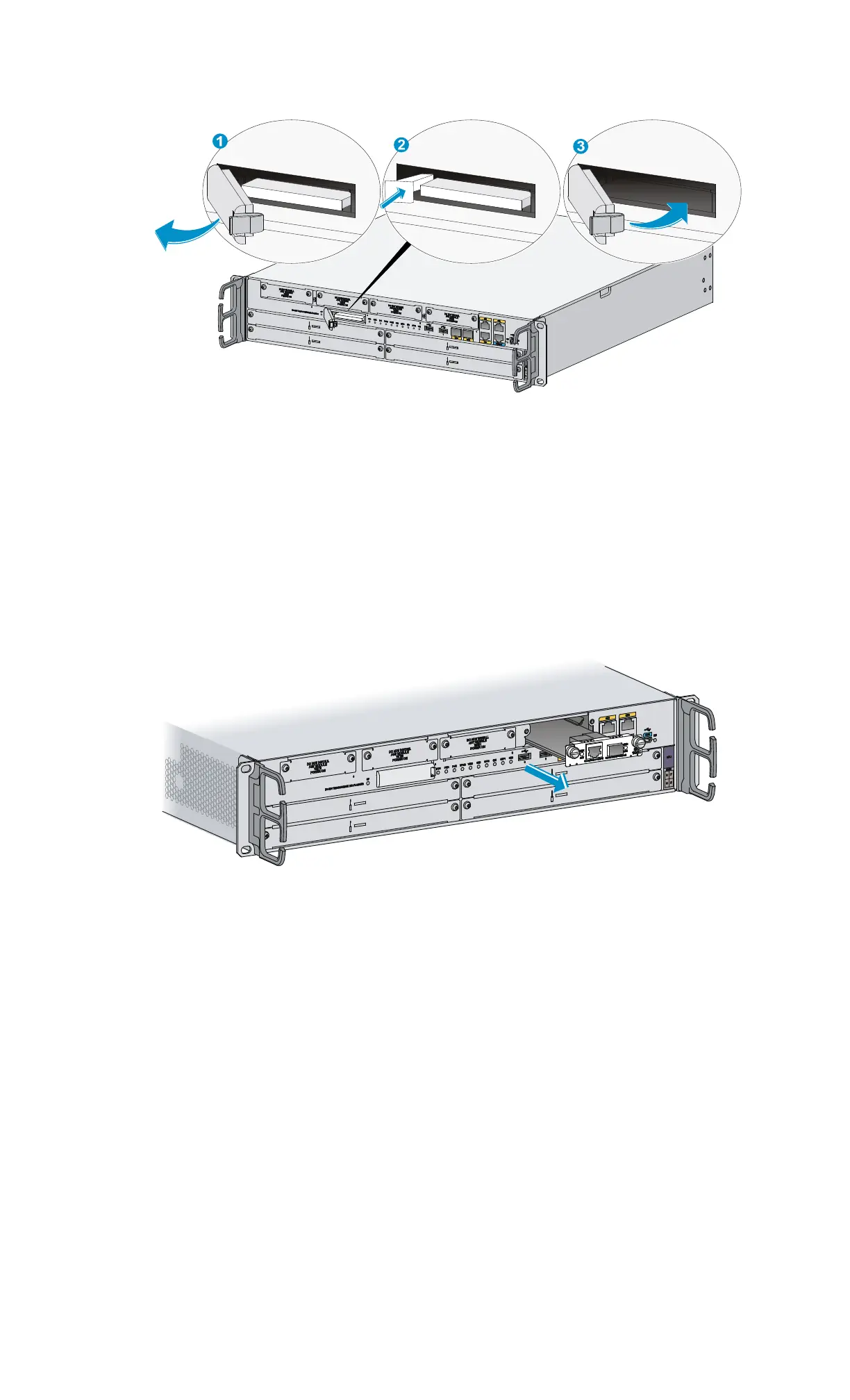

Figure 53 Removing the CF card
4. Install a new CF card. For the installation procedure, see "Installing the router."
If you do not install a new CF card, close the CF card cover.
Replacing a SIC
1. Completely loosen the captive screws of the SIC.
2. Gently pull the SIC out along the slide rails.
3. Install a new SIC. For the installation procedure, see "Installing the router."
If you do not install a SIC, install a filler panel and tighten the screws.
Figure 54 Pulling a SIC out
