vi
MSR3064

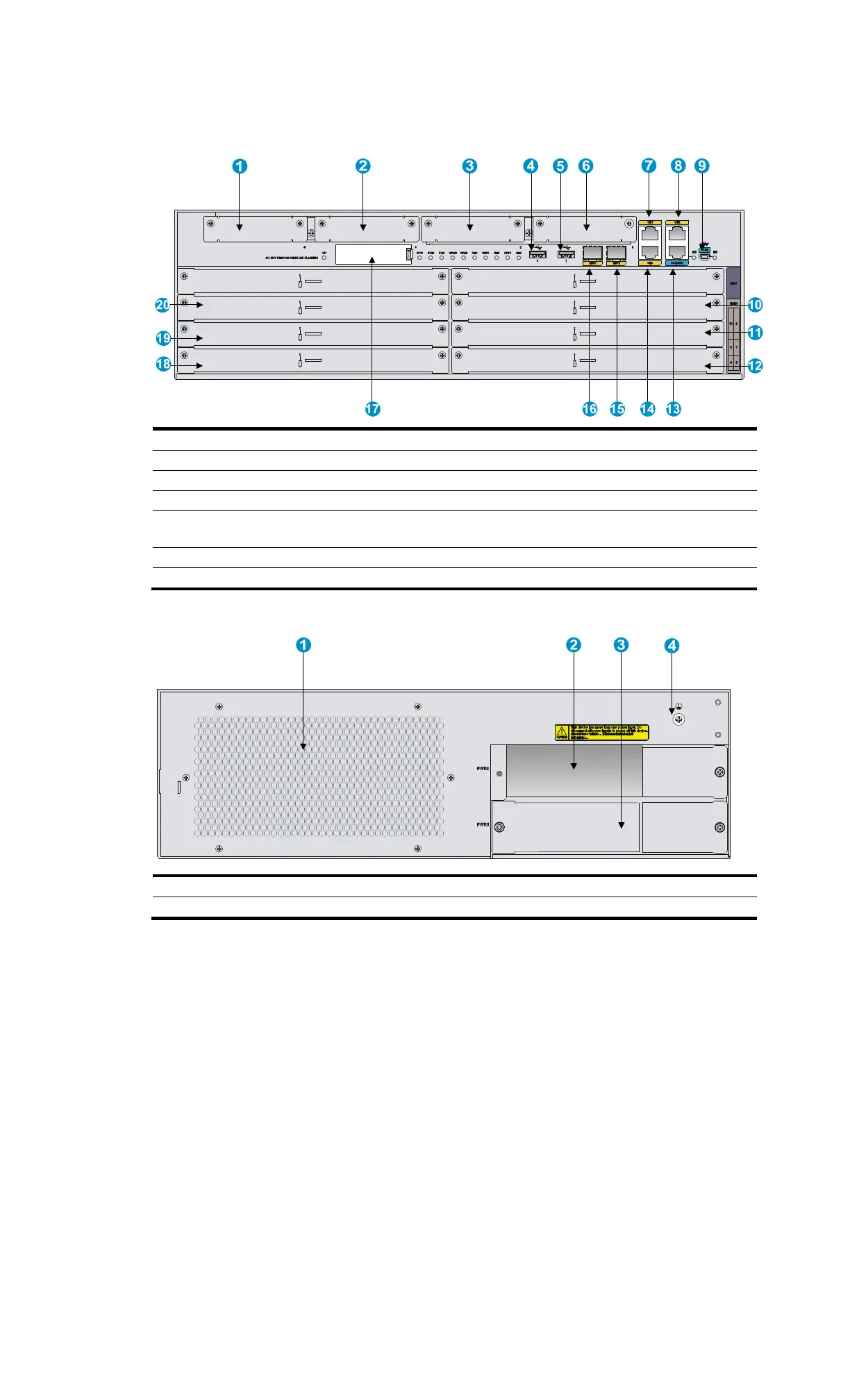

Figure 76 MSR3064 front view
(1) SIC slot (slot 4) (2)SIC slot (slot 3) (3) SIC slot (slot 2)
(4) USB port 0 (5) USB port 1
(6) SIC slot (slot 1)
(7) Gi
abit Ethernet port (GE1) (8) Gi
abit Ethernet port (GE2)
(9) USB console port (CON)
(10) HMIM slot (slot 5) (11) HMIM slot (slot 7) (12) HMIM slot (slot 9)
(13) Console port/AUX port
(CON/AUX)
(14) Gigabit Ethernet port (GE0) (15) SFP port (SFP1)
(16) SFP port (SFP0) (17) CF card cover
(18) HMIM slot (slot 6)
(19) HMIM slot (slot 8) (20) HMIM slot (slot 10)
Figure 77 MSR3064 rear view
(1) Fan ventilation panel (2) Power module slot (PWR2) (3) Power module slot (PWR1)
(4) Groundin
terminal
