xxvi
3.
Holding the handle of the power module with one hand and supporting the bottom of the power
module with the other hand, insert the power module slowly along the slide rails until it makes close
contact with the backplane.
4. Use a Phillips screwdriver to fasten the captive screws on the two sides of the power module.

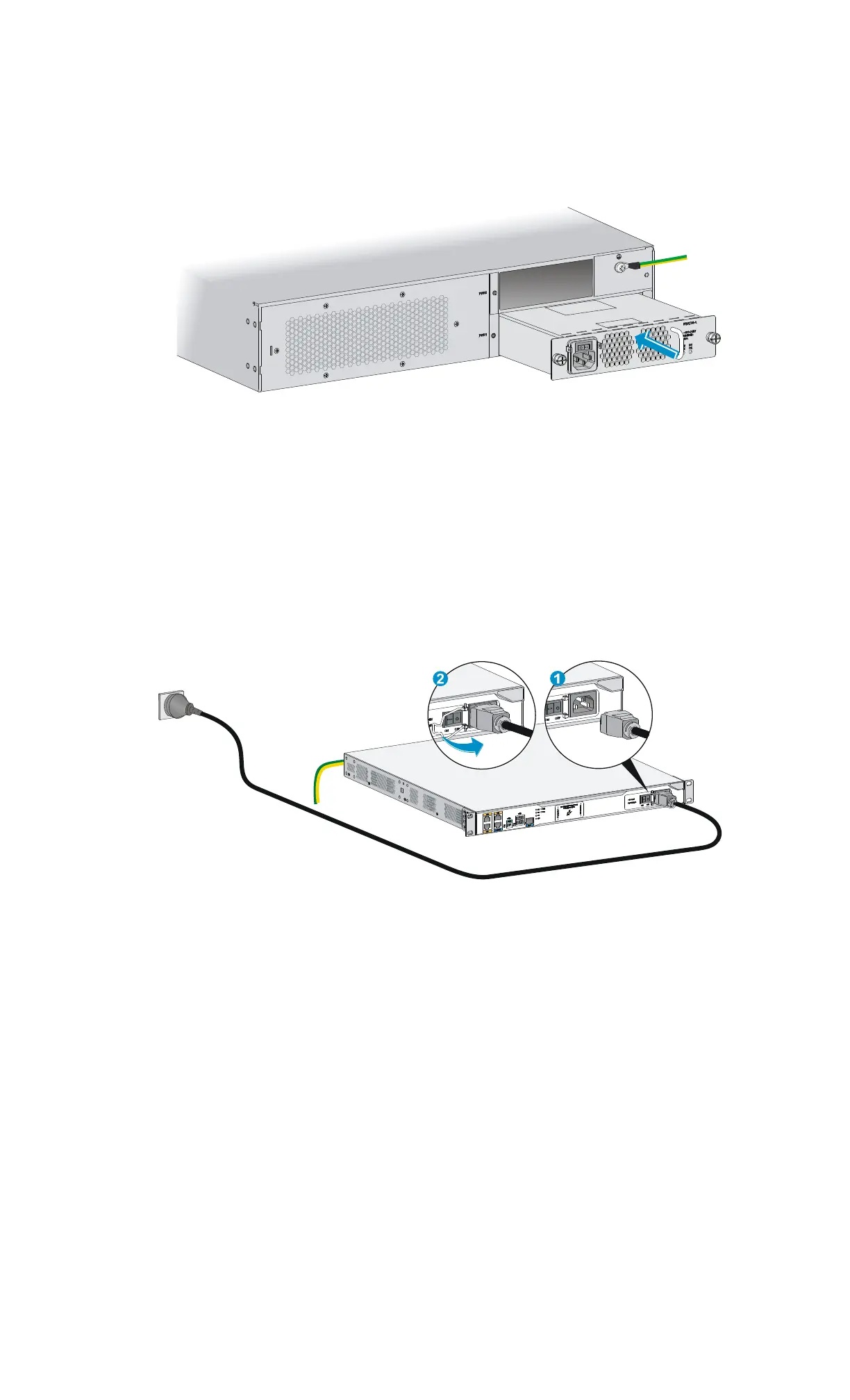

Figure 43 Installing a PoE power module
Connecting the power cord
Connecting an AC power cord
1. Make sure the router is well grounded, and the power switch on the router is in the OFF position.
2. Connect one end of the AC power cord to the AC receptacle on the router, and the other end to
the AC power source.
3. Install the bail latch and push it leftward to secure the power cord.
Figure 44 Connecting an AC power cord to an MSR3012/3024 router
