xxviii

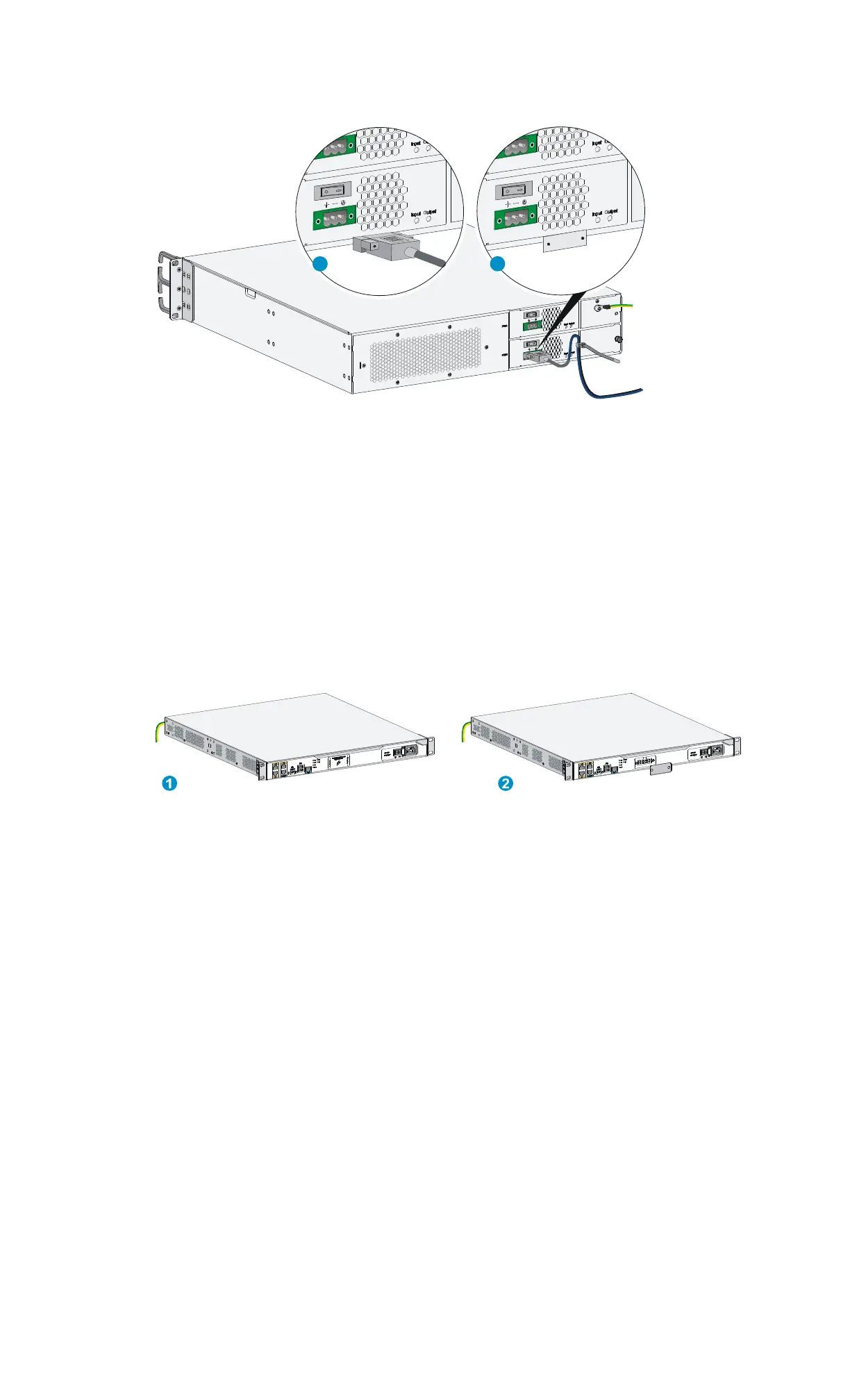

Figure 47 Connecting a DC power cord for an MSR3044/3064
Connecting an RPS power cord
The MSR3012 and MSR3024 offer remote power supply (RPS) support. As an external power supply, RPS
can provide power supply for the device in case of power module abnormality. It enhances the reliability
of the device.
The router has a sticky label and a protective cover when shipped to protect the RPS receptacle.
To connect an RPS power cord:
1. Remove the sticky label.
2. Remove the screws on the protective cover with a screw driver to remove the protective cover, as
shown in the following figure:
Figure 48 Removing the sticky label and protective cover
3. Insert one end of the RPS power cord to the RPS receptacle on the router and fasten the screws on
the RPS power cord plug.
4. Make sure the RPS power is OFF and connect the other end of the power cord to the RPS power
source.
12
