8. Rotate the power switch right to left (2), and then remove it from the computer (3) while routing
the cable through the hole in the front of the chassis.

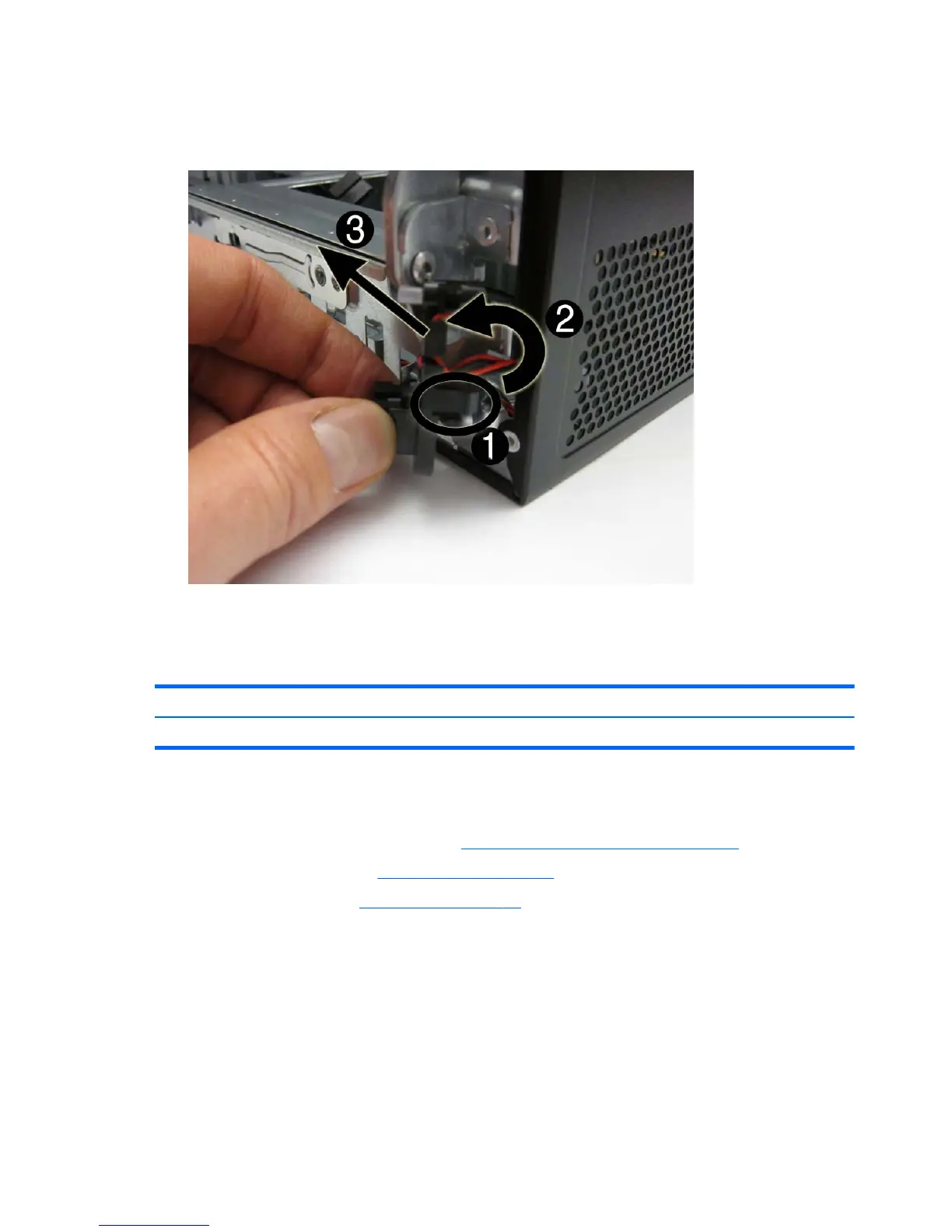

Figure 8-25 Removing the power switch
To install the power switch, reverse the removal procedure.
Front USB Assembly
Description Spare part number
Front I/O and USB assembly 668570-001
The front USB assembly is secured to the front of the chassis with one screw. Push the assembly into
the chassis to remove it.
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 90).
2. Remove the access panel (
Access Panel on page 90).
3. Remove the front bezel (
Front Bezel on page 92).
4. Disconnect the two cables from the system board as follows:
Yellow connector labeled F_AUDIO
White connector labeled F_USB2
112 Chapter 8 Removal and Replacement Procedures – Small Form Factor (SFF) Chassis
