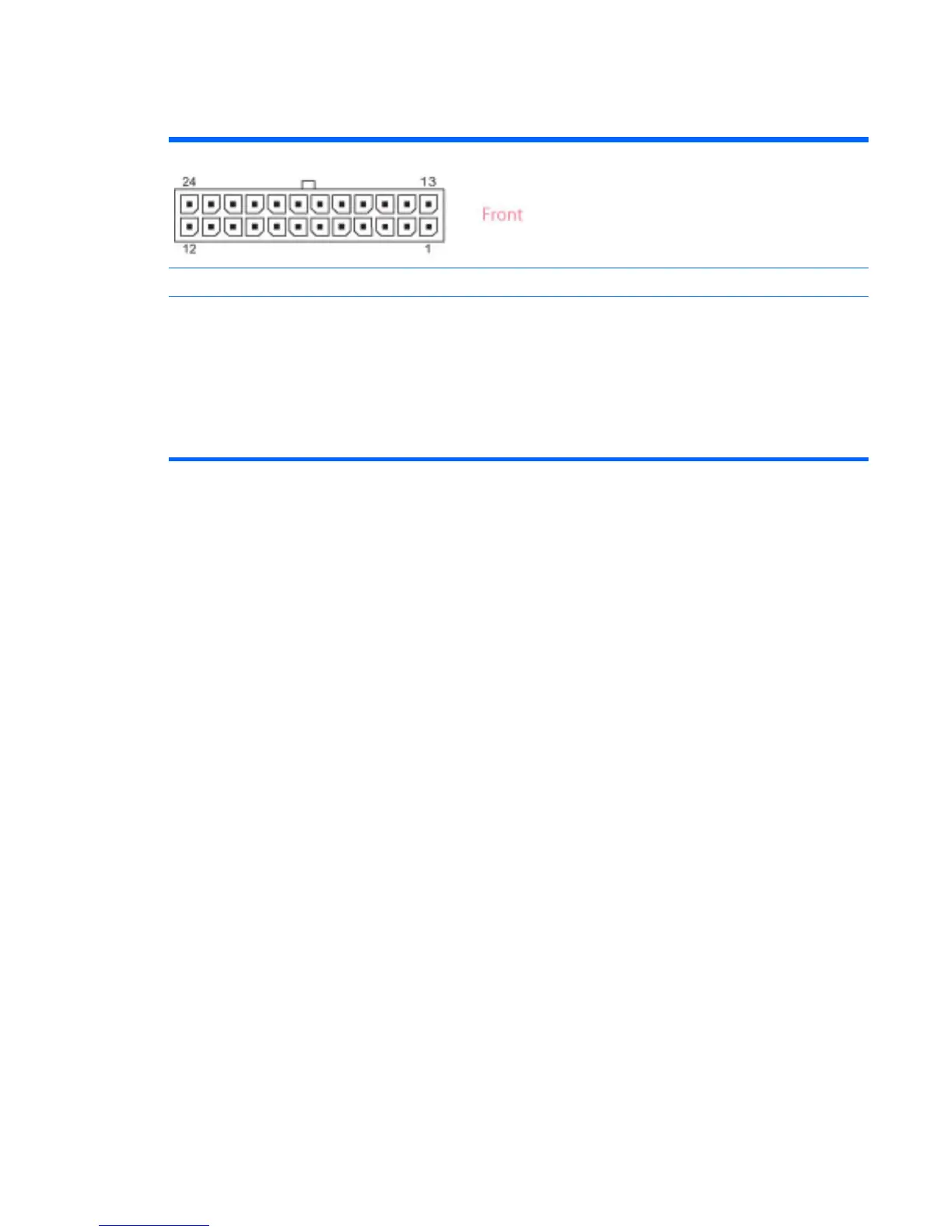

24-Pin Power
Connector
Pin Signal Pin Signal Pin Signal Pin Signal
1
2
3
4
5
6
+3.3V
+3.3V
GND
+5V
GND
+5V
7
8
9
10
11
12
GND
POK
+5 Vaux
+12V
+12V
+3.3V
13
14
15
16
17
18
+3.3V
–12V
GND
PSON
GND
GND
19
20
21
22
23
24
GND
open
+5V
+5V
+5V
GND
24-Pin Power 133
