Power Switch/LED Assembly
Description Spare part number
Power switch/LED assembly 657105-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 42).
2. Remove the access panel (
Access Panel on page 43).
3. Lay the computer on its side with the front facing toward you.
4. Remove the front bezel (
Front Bezel on page 45).
5. Remove the optical drive (
Removing an Optical Drive on page 63).
6. Disconnect the braided cables from the black system board connector labeled JFP1.
7. Remove the cable from the clips in the optical drive cage.

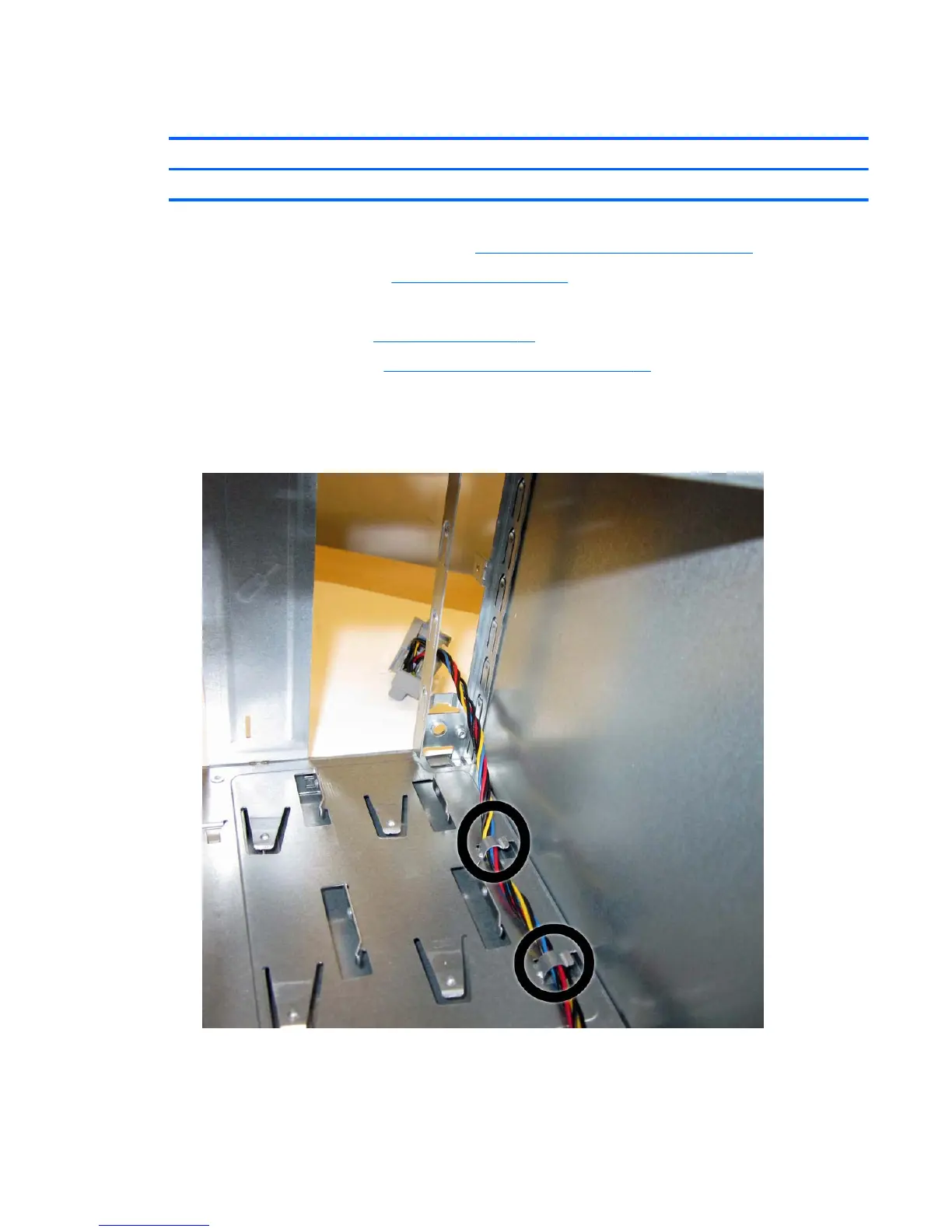

Figure 7-33 Power switch cable routing
Power Switch/LED Assembly 75

HP Pro 3330 Specifications

General

Chipset	Intel H61 Express
Power Supply	300W
Processor	Intel Core i3-2120
Memory	Up to 8 GB DDR3-1333 SDRAM
Storage	500GB 7200 rpm SATA
Graphics	Integrated Intel HD Graphics
Operating System	Windows 7 Professional
Optical Drive	DVD Writer
Audio	Integrated High Definition Audio
Network	Integrated 10/100/1000 Ethernet
Ports	6 USB 2.0, 1 VGA, 1 RJ-45
