System Board Drive Connections

Refer to the following illustration and table to identify the system board drive connectors.

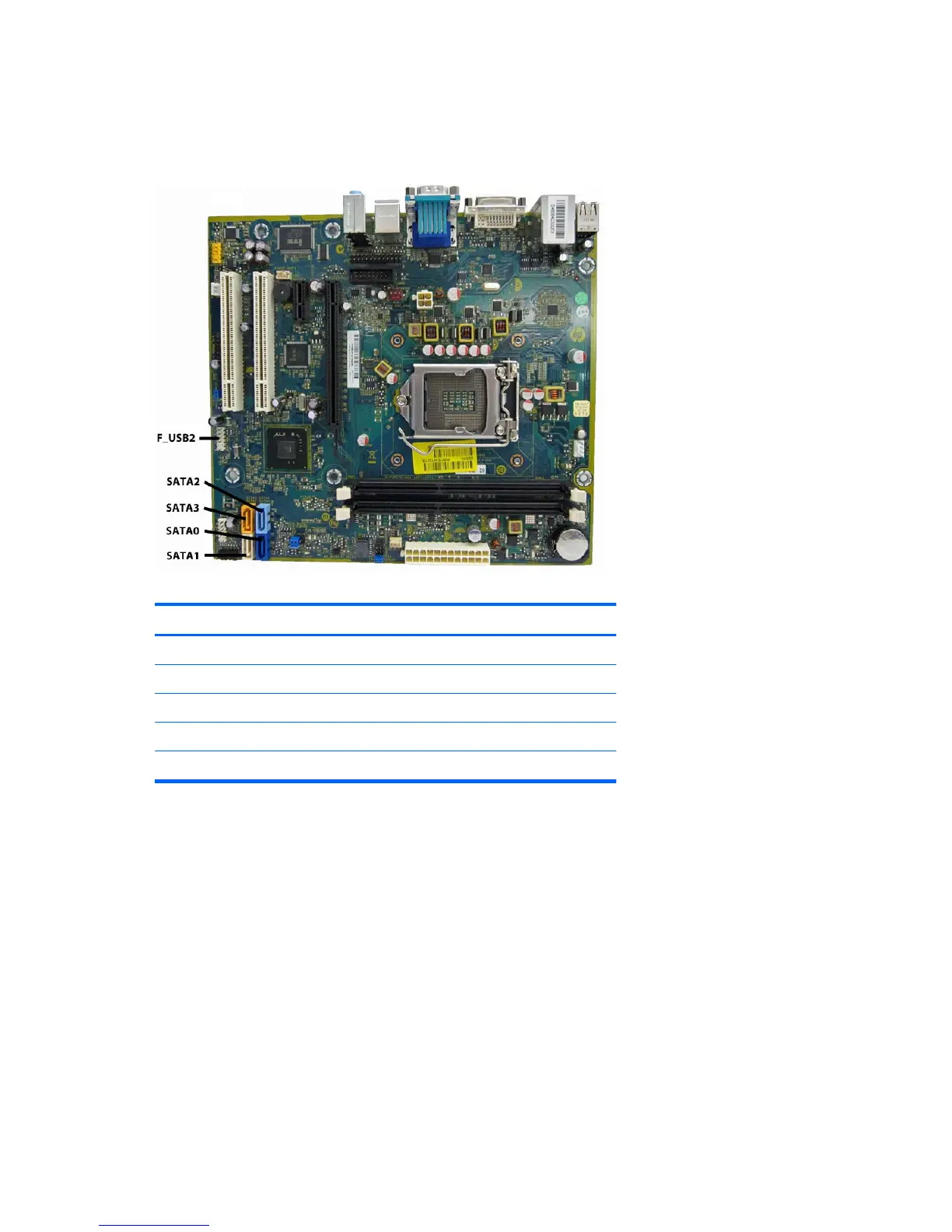

Figure 7-16 System Board Drive Connections

Table 7-3 System Board Drive Connections

System Board Connector System Board Label Color

SATA0 SATA0 dark blue

SATA1 SATA1 white

SATA2 SATA2 light blue

SATA3 SATA3 orange

Media Card Reader F_USB2 white

62 Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
