7. While squeezing the outer rivet, from the inside of the chassis, pull the associated inside rivet
toward the inside of the computer until the outside rivet is pulled into the chassis.

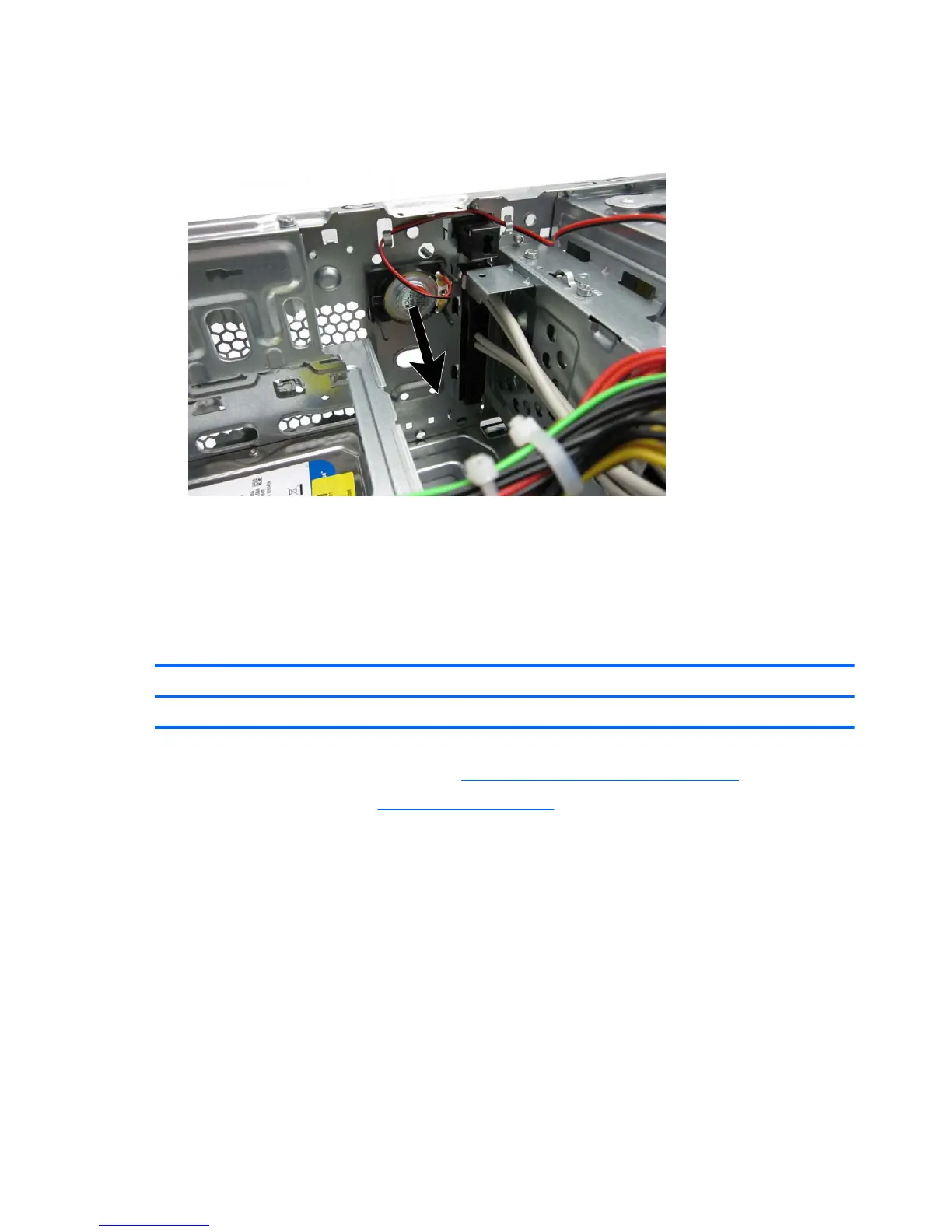

Figure 7-38 Removing the speaker
To install the speaker, reverse the removal procedures.
When installing the speaker, from the inside of the computer, feed the outer rubber rivets through the
holes in the front chassis wall, and the pull the rivets from the outside until the speaker is properly
seated with the narrow part of the rivets sitting in the holes in the chassis.
Fan Sink Assembly
Description Spare part number
Fan sink for use in models with Intel processors 667727-001
1. Prepare the computer for disassembly (Preparation for Disassembly on page 42).
2. Remove the access panel (
Access Panel on page 43).
3. Lay the computer on its side with the rear facing toward you.
4. Loosen the four captive Torx screws that secure the fan sink to the system board.
80 Chapter 7 Removal and Replacement Procedures – Microtower (MT) Chassis
