HP ProCurve 3400cl-24G Access Security Guide

Traffic/Security Filters
Filter Types and Operation
ProCurve(config)# show filter 26
Traffic/Security Filters
Filter Type : Source Port
Source Port : 1
Dest Port Type | Action
--------- --------- + ------------------------
1 10/100TX | Forward
2 10/100TX | Forward
3 10/100TX | Forward
4 10/100TX | Forward
5 10/100TX | Forward
6 10/100TX | Forward
7 10/100TX | Drop
8 10/100TX | Forward
9 10/100TX | Forward
10 10/100TX | Drop
11 10/100TX | Drop
12 10/100TX | Forward
. . .
As the company grows, more resources are required in accounting. Two
additional accounting workstations are added and attached to ports 12 and
13. A second server is added attached to port8.
Port 7
Port 1
Port 12
Port 13
i
Port 10
Port 8
Accounting Server 1
Router to the
Internet
Accounting Workstation 3
Accounting Workstat on 4
Network Design
1. Accounting Workstations may only send traffic to the Accounting Server.
2. No Internet traffic may be sent to the Accounting Server or Workstations.
3 All other switch ports may only send traffic to Port 1.
Accounting Workstation 1
Port 11
Accounting Workstation 2
Accounting Server 2

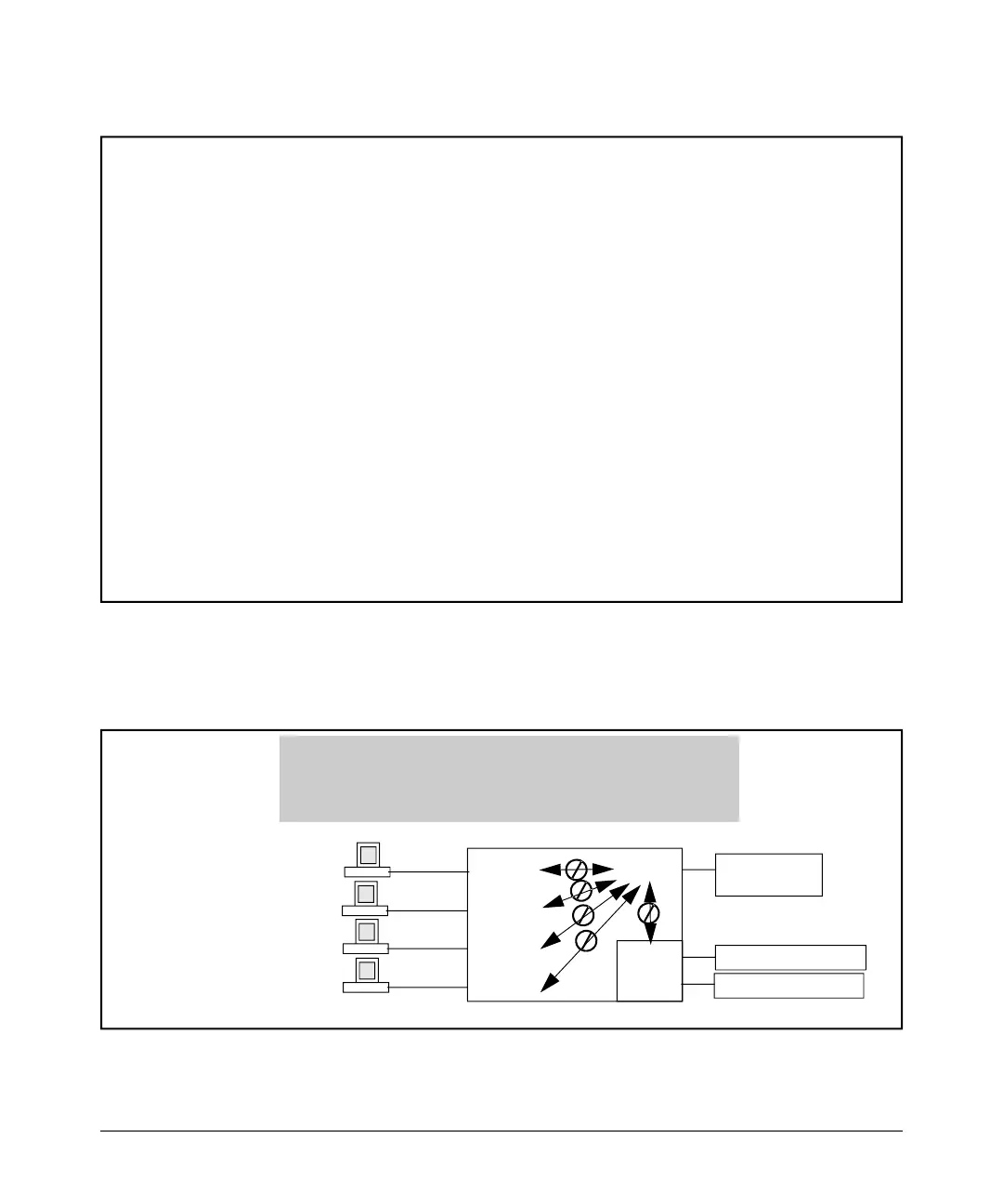

Figure 9-5. Expanded Network Configuration for Named Source-Port Filters
Example
9-12
