C-5
Hardware Components
Switch LEDs
Switch LEDs

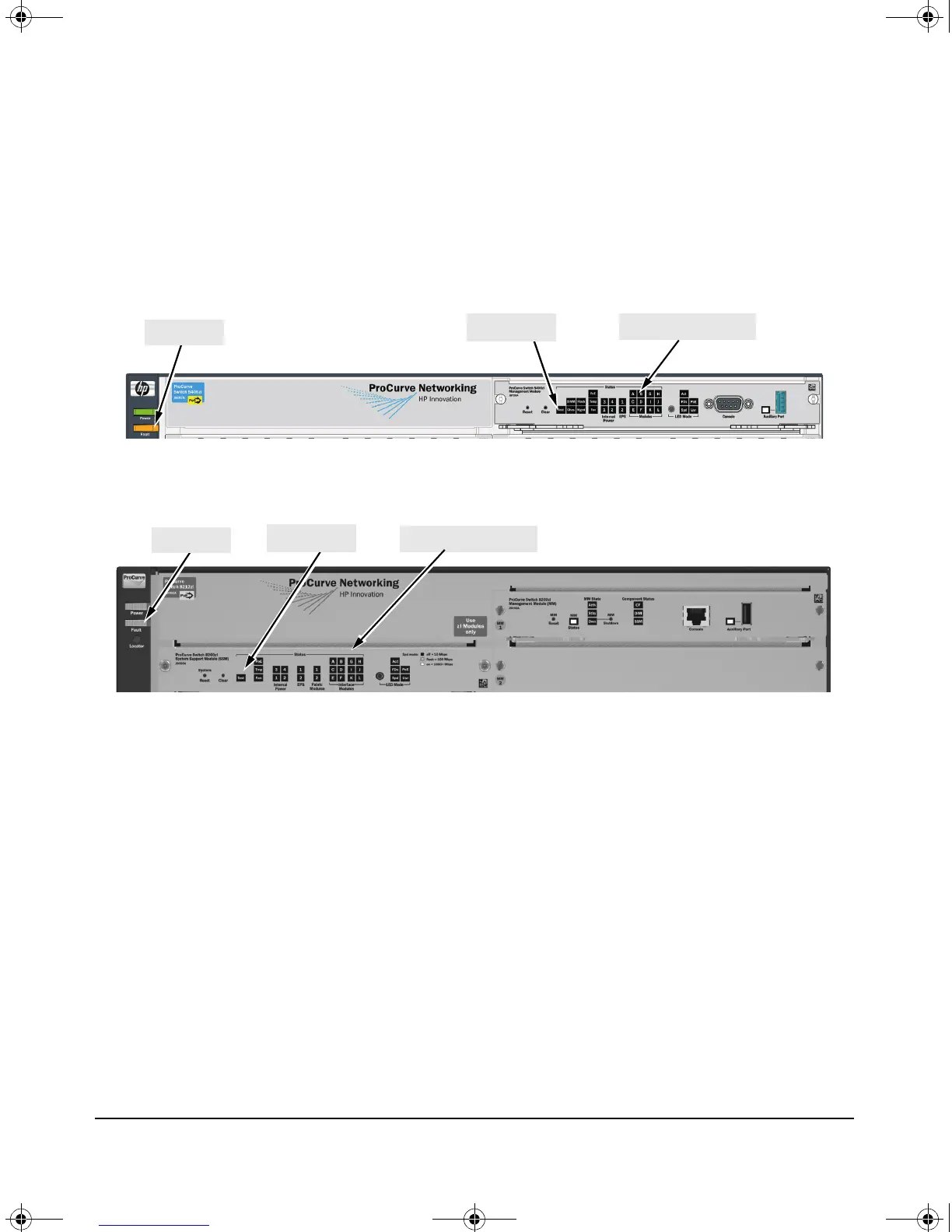

The following figures show the Test, Fault, and Module Status LEDs on the
switches the Services Module can be installed in.
Figure C-3. Test, Fault, and Module Status LEDs on a Series 5400zl switch
Figure C-4. Test, Fault, and Module Status LEDs on a Series 8212zl switch
Replacing or Removing a Services
Module
It is highly recommended that the module be shutdown before replacing or
removing it. The module maybe shutdown using the shutdown button on the
front panel of the module or using the following CLI command:
hostswitch# services <slot-id> shutdown
It is possible to “hot-swap” one module for another; that is, replace one module
with another while the switch is still powered on, without interrupting the
operation of the rest of the switch ports. If the modules are not the same type,
the switch may have to be reconfigured.
Module Status LEDsTest LED
Fault LED
Module Status LEDs
Fault LED
Test LED
