HP ProLiant ML310 User Manual

5082
1
2
3
4
5
6
7
11
10
8
9

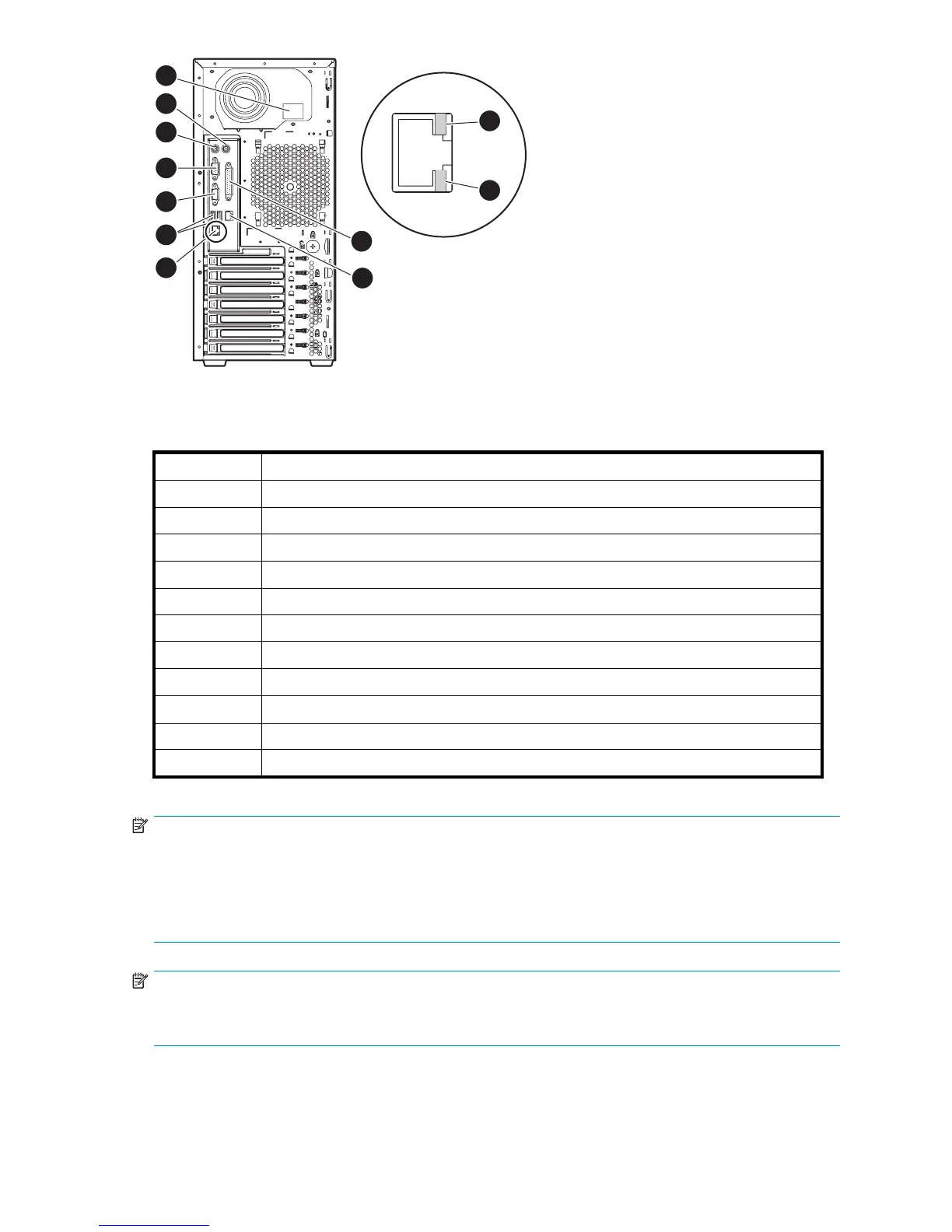

Figure 26 Rear pane l
Table 10 Rear panel components
Item
Description
1
Power supply connector
2
Mouse connector
3
Keyboard connector
4
Serial connector
5
Video connector
6USBconne
ctors (2)
7
RJ-45 Ethernet connector
8
NIC activity LED (Flashing = Activity, Off = No activity)
9
NIClinkLED(On=Link,Off=Nolink)
10
RJ-45 connector (iLO 2)
11
Parallel connector
NOTE:
Connecting the power cord illuminates the LEDs on the front of the bezel, the Sy stems Insight Display
LED, and the LEDs on the NIC connector (rear panel). The iLO 2 NIC LED (rear panel) illum inates if
the iLO 2 port is connected. Connecting the power cord also restores the storage ser ver to whatever
previous powered state it was last in. This could result in the server powering up, the fans operating,
and the
power indicator coming on.
NOTE:
The keyboard, mouse, and monitor are used only for the "Direct attach method" on p age 19. They are
not provided with your storage server .
HP ProLiant ML310 Storage Server
101
