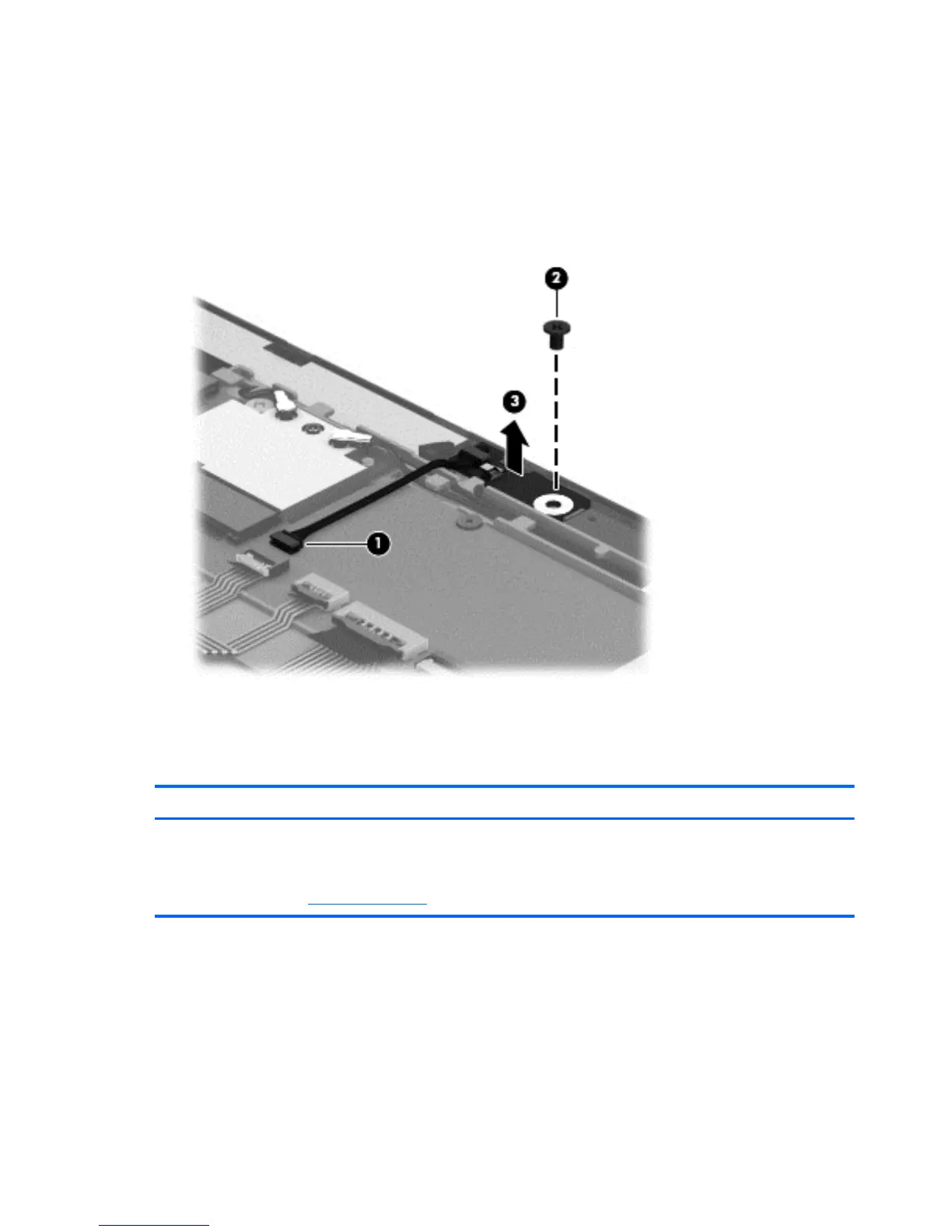

Remove the proximity sensor module:
1. Disconnect the proximity sensor module cable (1) from the system board.
2. Remove the Phillips PM2.0×3.0 screw (2) that secures the proximity sensor module to the
display assembly.
3. Remove the proximity sensor module (3) and cable.
Reverse this procedure to install the proximity sensor module.
Webcamera/microphone module
Description Spare part number
Webcamera/microphone module (includes double-sided adhesive and grounding tape)
NOTE: The webcamera/microphone module does not include the webcamera/microphone
module cable. The webcamera/microphone module cable is included in the Cable Kit, spare part
number 736883-001. See
Cable Kit on page 21 for more Cable Kit spare part information.
736900-001
Before removing the webcamera/microphone module, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
38 Chapter 4 Removal and replacement preliminary requirements
