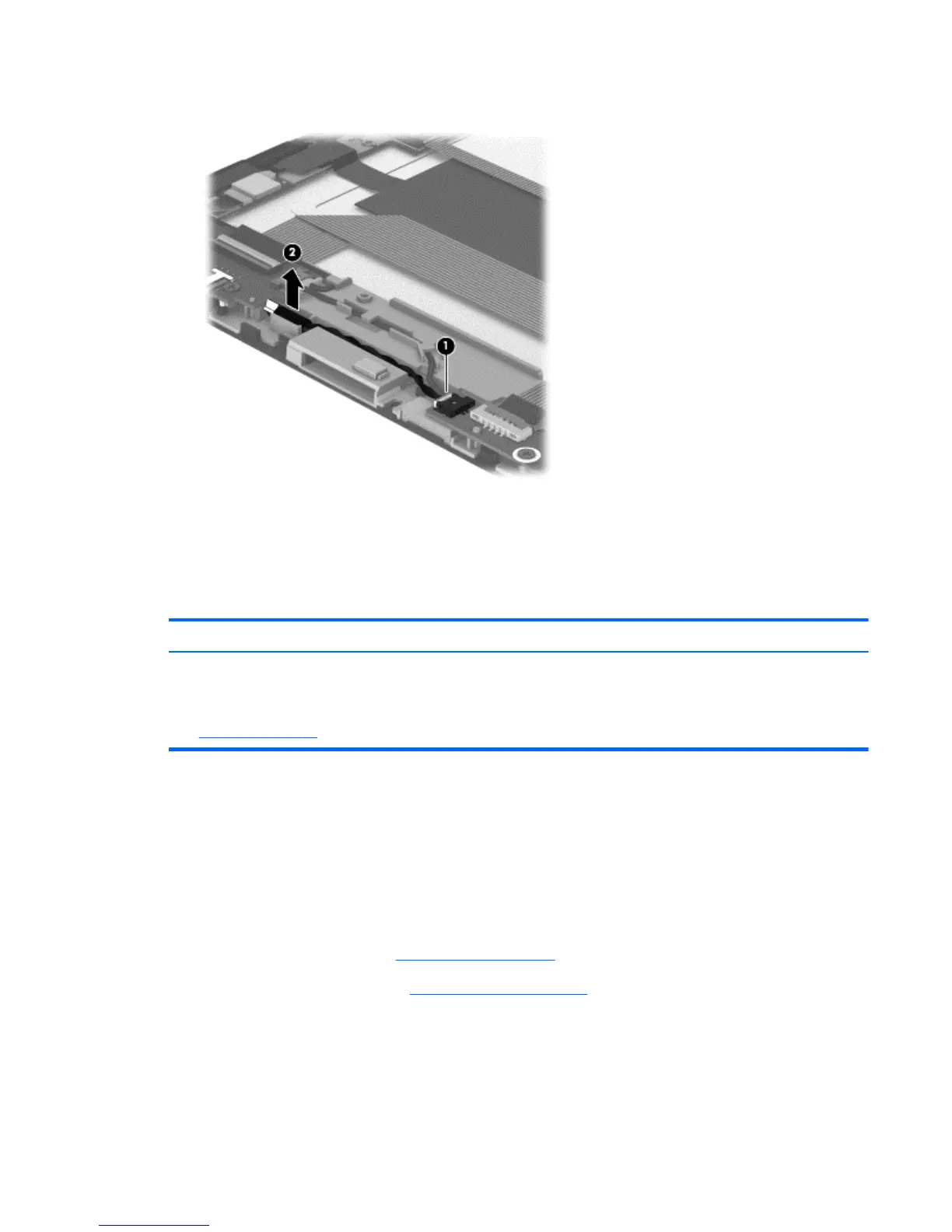

2. Release the vibrator module (2) from the clip molded into the display assembly.
3. Remove the vibrator module and cable.
Reverse this procedure to install the vibrator module.
Docking connecter board
Description Spare part number
Docking connecting board
NOTE: The docking connector board does not include the docking connector board cables. The
docking connector board cables are included in the Cable Kit, spare part number 736883-001.
See
Cable Kit on page 21 for more Cable Kit spare part information.
736888-001
Before removing the docking connector board, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see
Back cover on page 34).
5. Remove the tablet battery (see
Tablet battery on page 36).
Removal and replacement procedures
53
