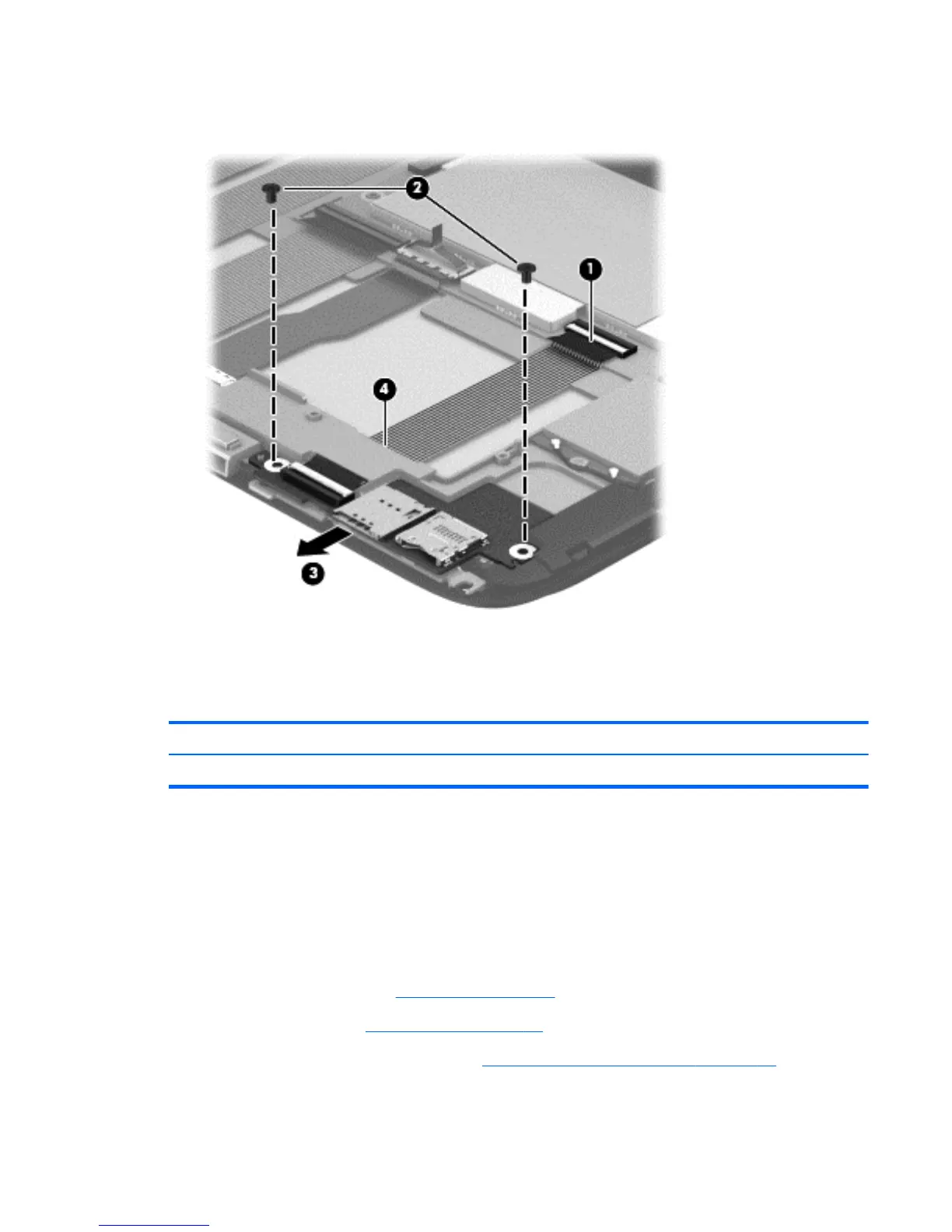

3. Remove the card reader board (3) by sliding it forward, making sure to carefully route the card
reader board cable through the opening (4) in the display assembly.
Reverse this procedure to install the card reader board.
Speakers
Description Spare part number
Speaker Kit (includes left and right speakers and cables) 736899-001
Before removing the speakers, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see
Back cover on page 34), and then remove the following components:
a. Tablet battery (see
Tablet battery on page 36)
b. Audio/power connector board (see
Audio/power connector board on page 51)
Removal and replacement procedures
57
