Display panel cable
NOTE: The display panel cable is included in the Cable Kit, spare part number 736883-001. See
Cable Kit on page 21 for more Cable Kit spare part information.
Before removing the display panel cable, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see
Back cover on page 34).
5. Remove the tablet battery (see
Tablet battery on page 36).

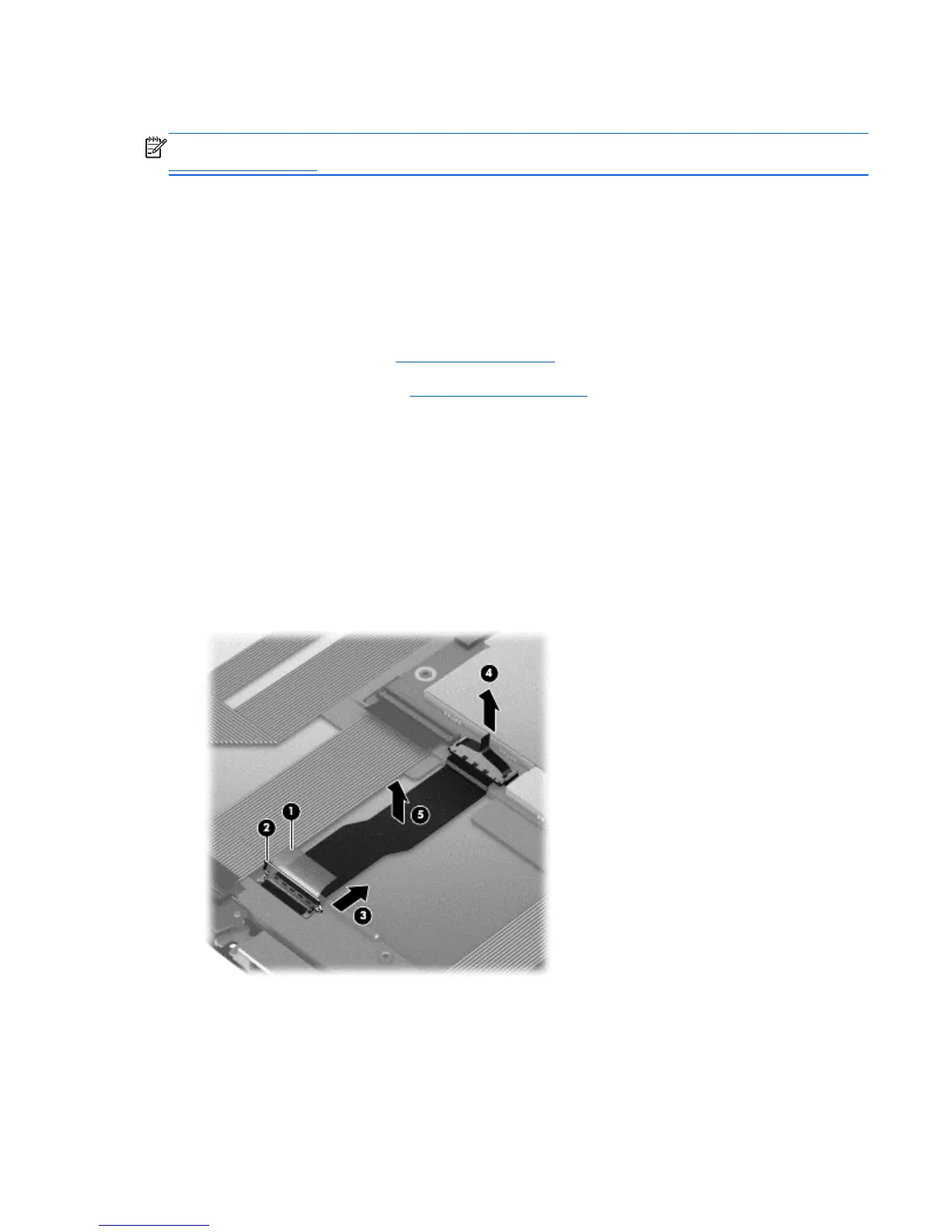

Remove the display panel cable:
1. Release the adhesive strip (1) that secures the display panel cable connector to the
display assembly.
2. Use the display panel cable connector bar (2) to disconnect the display panel cable (3) from the
display panel.
3. Disconnect the display panel cable (4) from the system board.
4. Remove the docking panel cable board (5).
Reverse this procedure to install the display panel cable.
