HP Split 13 x 2 PC User Manual

TouchPad
Description Spare part number
TouchPad (includes cable) 736880-001
Before removing the TouchPad, follow these steps:
1. Turn off the tablet and keyboard base. If you are unsure whether the tablet and keyboard base are
off or in Hibernation, turn the tablet on, and then shut it down through the operating system.
2. Disconnect the power from the tablet and keyboard base by unplugging the power cord from the
tablet and keyboard base.
3. Disconnect the tablet from the keyboard base.
4. Remove the bottom cover (see
Bottom cover on page 63).
5. Disconnect the keyboard base battery cable from the audio/USB board (see
Keyboard base
battery on page 65).

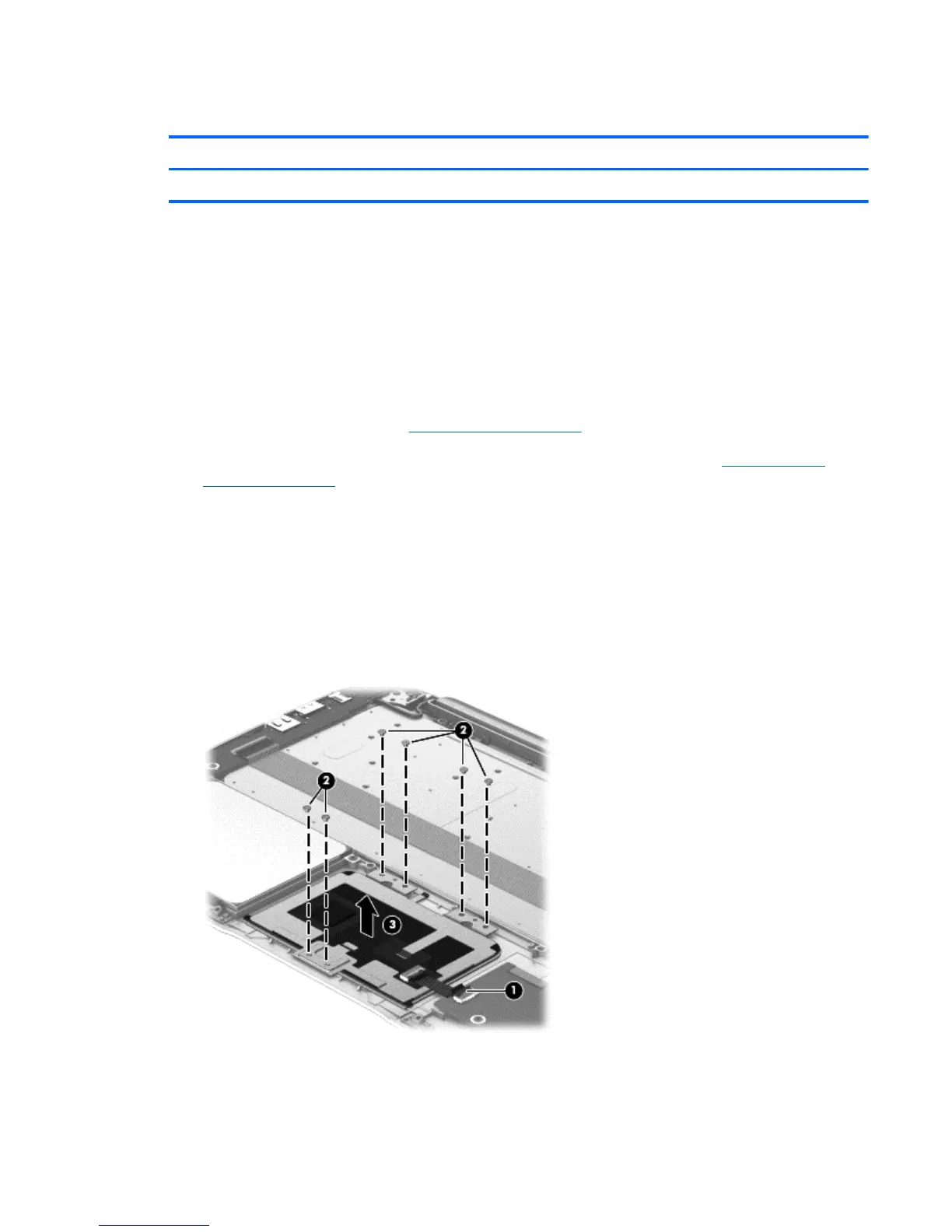

Remove the TouchPad:
1. Release the audio/USB board ZIF connector (1) to which the TouchPad cable is attached, and
then disconnect the TouchPad cable from the audio/USB board.
2. Remove the six Phillips PM2.0×2.5 screws (2) that secure the TouchPad to the keyboard/
top cover.
3. Remove the TouchPad (3).
Reverse this procedure to install the TouchPad.
Removal and replacement procedures
67
