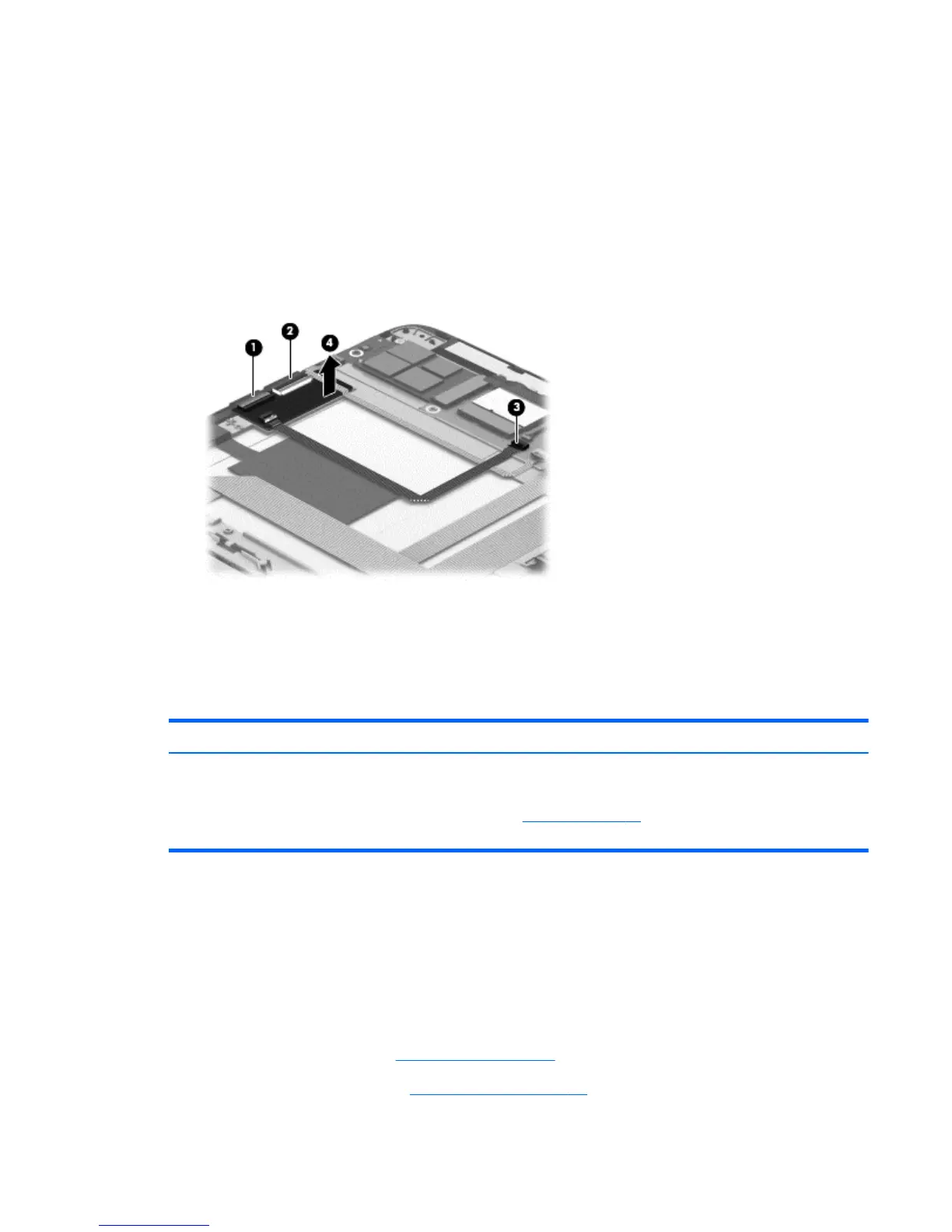

Remove the TouchScreen board:
1. Release the two TouchScreen board ZIF connectors (1) and (2) to which the display panel
TouchScreen cables are attached, and then disconnect the display panel TouchScreen cables from
the TouchScreen board.
2. Release the system board ZIF connector (3) to which the TouchScreen board cable is attached,
and then disconnect the TouchScreen board cable from the system board.
3. Detach the TouchScreen board (4) from the display assembly. (The TouchScreen board is attached
to the display assembly with double-sided adhesive.)
4. Remove the TouchScreen board and cable.
Reverse this procedure to install the TouchScreen board.
NFC module
Description Spare part number
NFC module (includes double-sided adhesive)
NOTE: The NFC module does not include the NFC module cable. The NFC module cable is
included in the Cable Kit, spare part number 736883-001. See
Cable Kit on page 21 for more
Cable Kit spare part information.
736886-001
Before removing the NFC module, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see
Back cover on page 34).
5. Remove the tablet battery (see
Tablet battery on page 36).
Removal and replacement procedures
49
