c. Docking connector board (see Docking connecter board on page 53)
d. Card reader board (see
Card reader board on page 56)

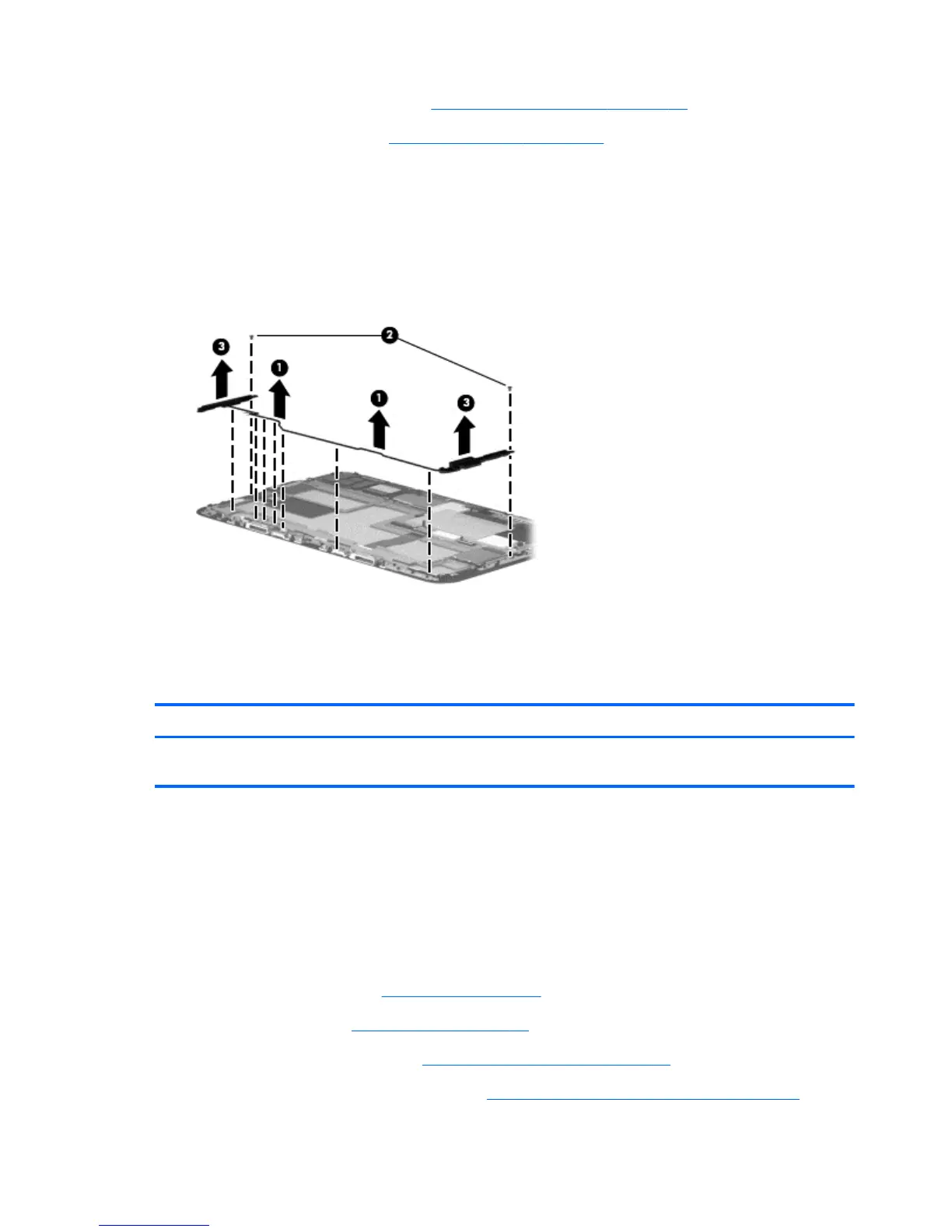

Remove the speakers:
1. Release the speaker cables (1) from the retention clips and routing channels built into the
display assembly.
2. Remove the two Phillips PM2.0×3.0 screws (2) that secure the speakers to the display assembly.
3. Remove the speakers (3).
Reverse this procedure to install the speakers.
Wireless antennas
Description Spare part number
Antenna Kit (includes WLAN antenna cables and transceivers and WLAN antenna cables and
transceivers)
736879-001
Before removing the wireless antenna cables and transceivers, follow these steps:
1. Turn off the tablet. If you are unsure whether the tablet is off or in Hibernation, turn the tablet on,
and then shut it down through the operating system.
2. Disconnect the power from the tablet by unplugging the power cord from the tablet.
3. Disconnect all external devices from the tablet.
4. Remove the back cover (see
Back cover on page 34), and then remove the following components:
a. Tablet battery (see
Tablet battery on page 36)
b. Proximity sensor module (see
Proximity sensor module on page 37)
c. Webcamera/microphone module (see
Webcamera/microphone module on page 38)
58 Chapter 4 Removal and replacement preliminary requirements
