8.4.13 Removing a Memory Module
Procedure
Step 1 Power o the server node.
For details, see 8.3.2 Power-O Procedure.
Step 2 Remove the server node.
For details, see 8.3.3 Removing an XH321 V5.
Step 3 Place the server node on the ESD workstation.
Step 4 Remove the air duct.
For details, see 8.4.23 Removing the Air Duct.
Step 5 Determine the position of the memory module.

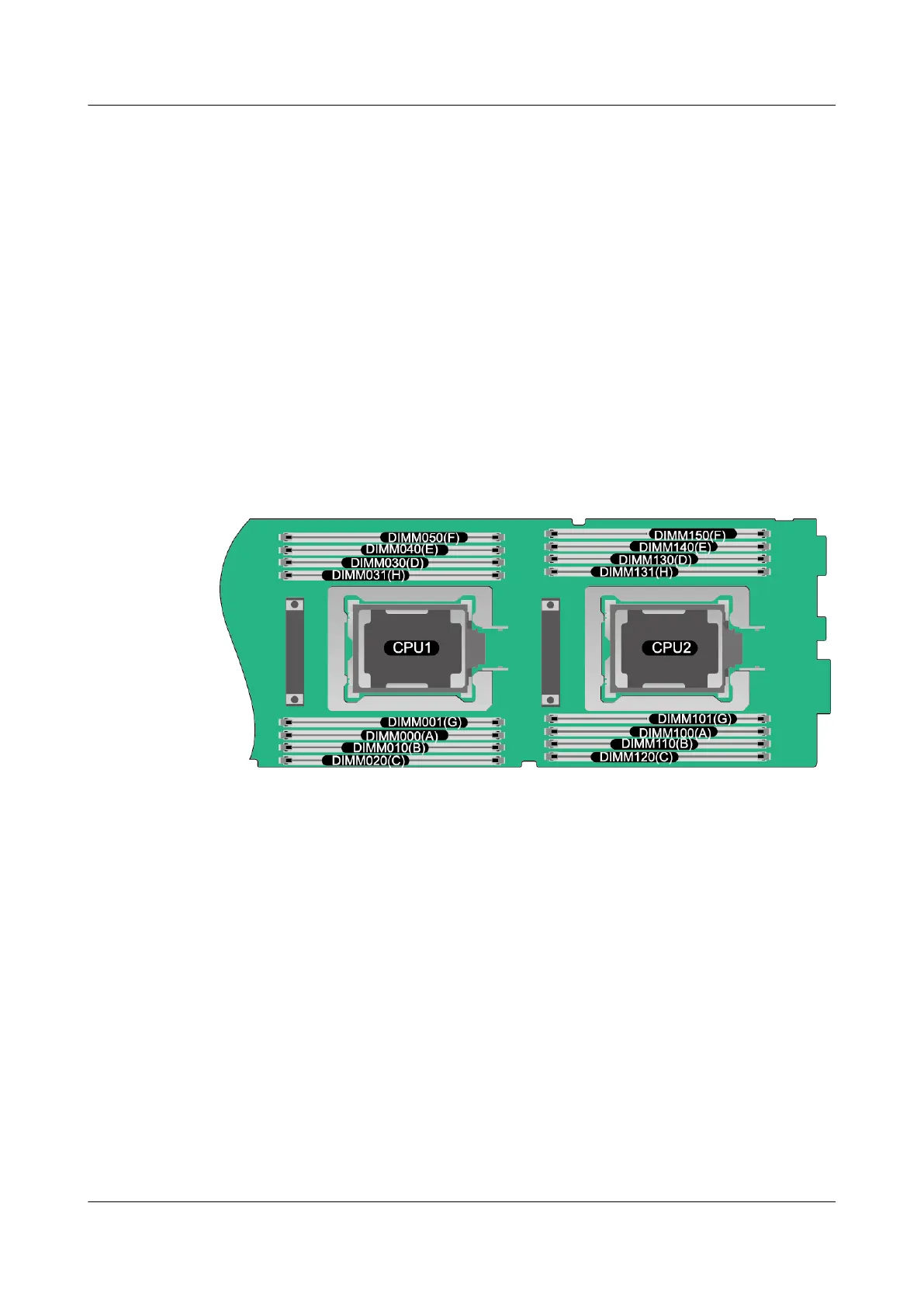

Figure 8-41 Memory slots
Step 6 Remove the memory module.
1. Open the memory module ejectors on the memory slot. See (1) in Figure
8-42.
2. Remove the memory module from the slot. See (2) in Figure 8-42.
FusionServer Pro XH321 V5 Server Node
Maintenance and Service Guide 8 Parts Replacement
Issue 17 (2021-03-09) Copyright © Huawei Technologies Co., Ltd. 75
