2.3 Exporting Alarms
This section describes the steps for exporting alarms.
Context
The exported alarms include current alarms and history alarms.
Procedure
Step 1 Log in to the ISM.
Step 2 In the navigation tree, click the storage array or the storage array component whose alarms are
to be exported.
Step 3 On the menu bar, choose Alarm > Export > Alarm(E).... The Alarm Export dialog box is
displayed, as shown in Figure 2-3.

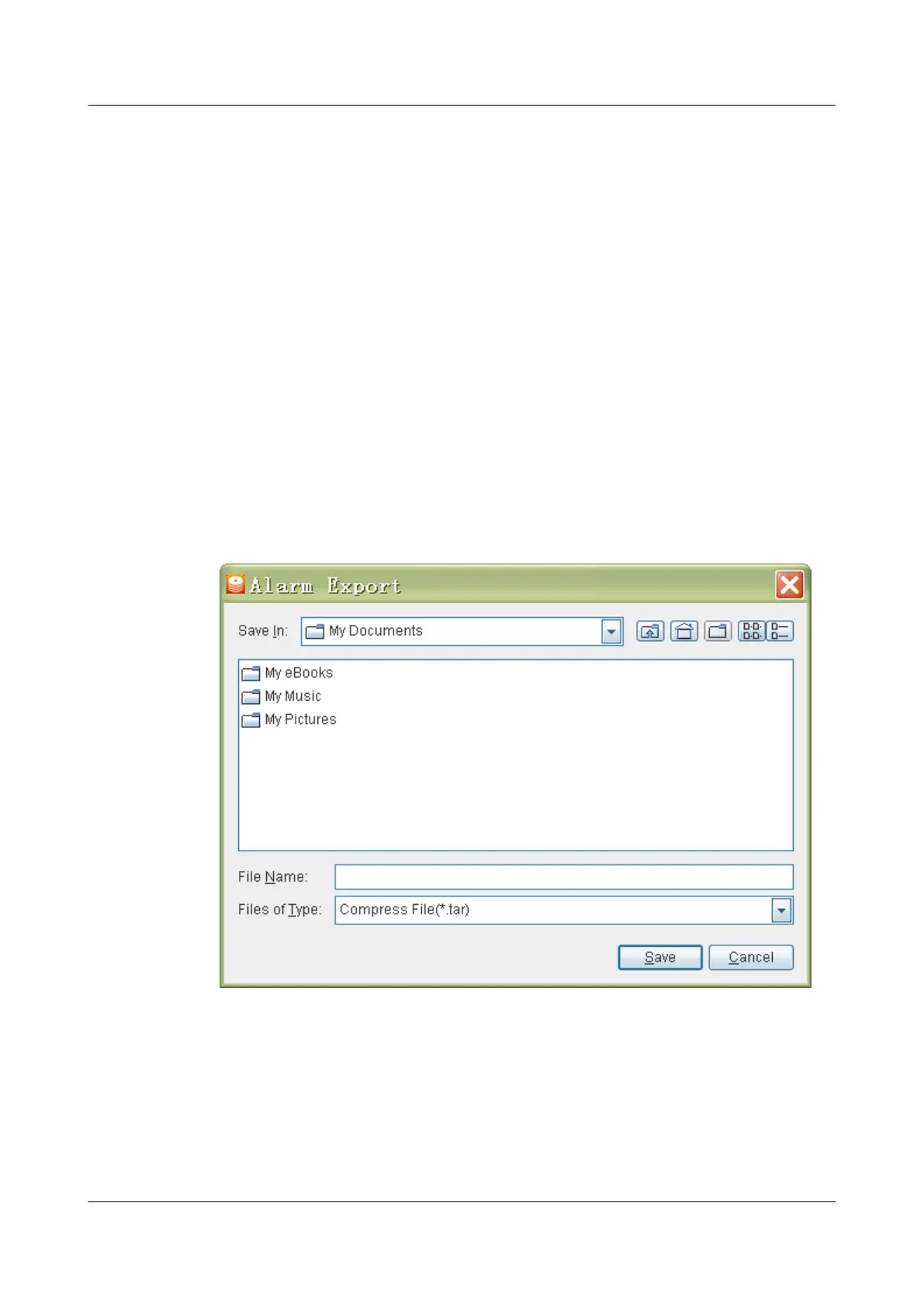

Figure 2-3 Alarm Export dialog box
Step 4 Select a path to save the file.
Step 5 In File Name, enter the file name. The file name contains a maximum of 200 characters.
Step 6 Click Save.
After that, the Info dialog box is displayed, saying “Operation succeeded.”.
OceanStor S2600 Storage System
Routine Maintenance 2 Preparations for Routine Maintenance
Issue 01 (2009-09-27) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
2-5
