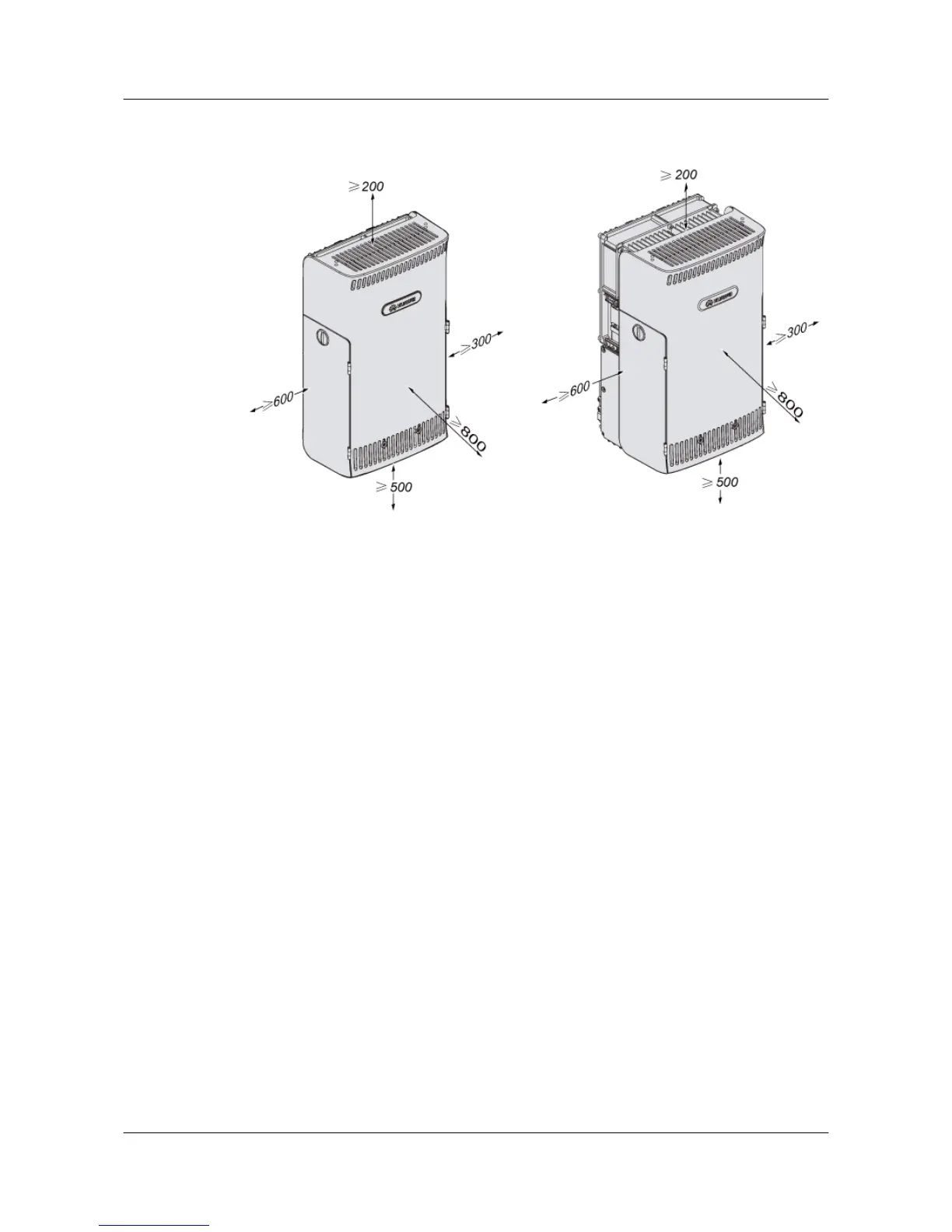

Figure 3-7 Recommended space requirements of one RRU3804 with and without the SRXU
(unit: mm)
The recommended space around the equipment is as follows:
l At least 500 mm under the equipment for cabling. It is recommended that the space is 1,200
mm between the bottom and the ground for easy maintenance.
l At least 800 mm in front of the equipment for maintenance.
l At least 200 mm above the equipment for maintenance.
l At least 600 mm on the left of the equipment for maintenance.
l At least 300 mm on the right of the equipment for maintenance.
l Regardless of whether the SRXU is fixed to the RRU3804, the space requirements are the
same.
Figure 3-8 shows the minimal space requirements of one RRU3804 with and without the SRXU.
RRU3804
User Guide 3 Installing RRU3804 and SRXU Hardware
Issue 01 (2007-11-29) Huawei Technologies Proprietary 3-7
