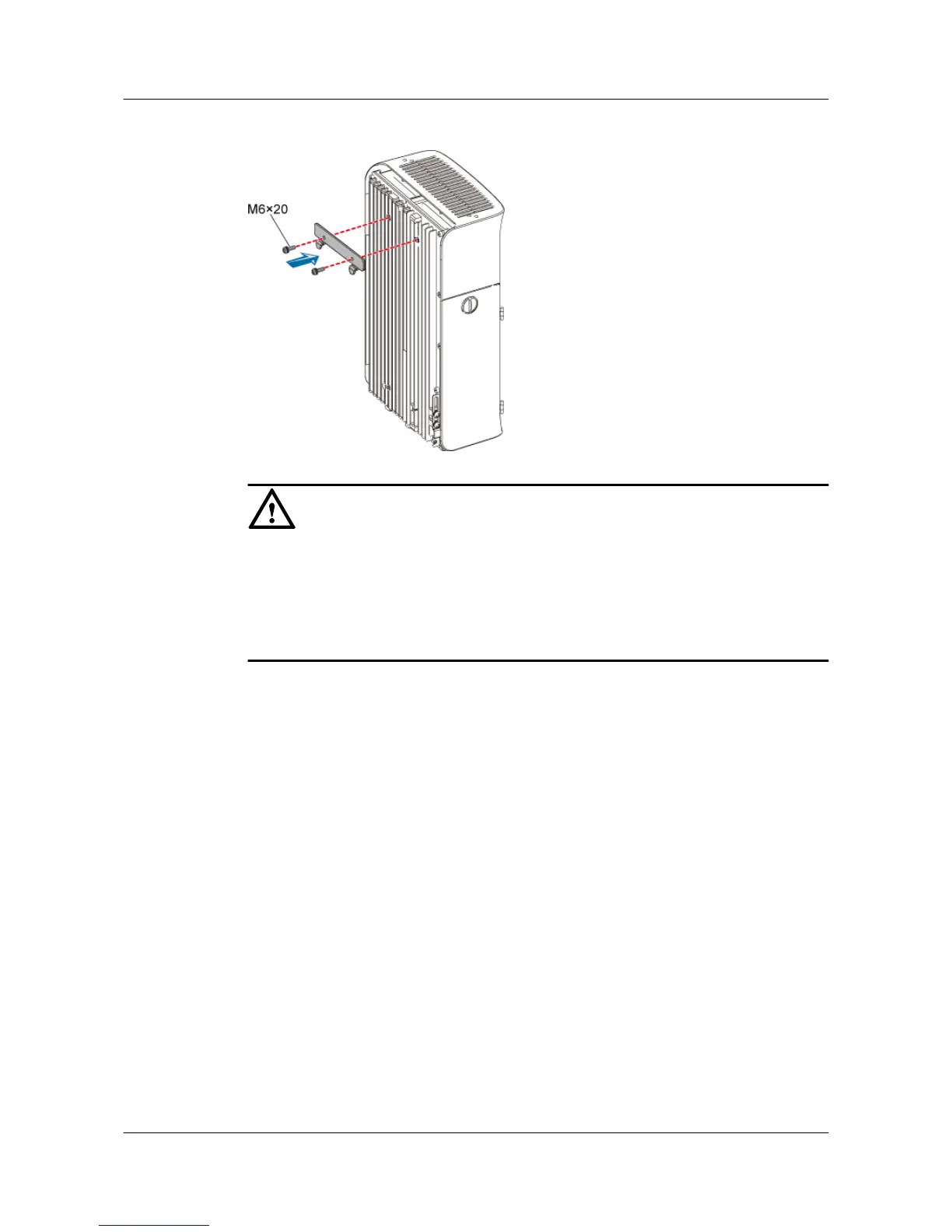

Figure 3-23 Securing the attachment plate
CAUTION
When installing the attachment plate, protect the plastic housing from being scratched.
l If you find that the plastic housing is put face down when unpacking the RRU3804,
install the attachment plate before taking out the RRU3804.
l If you find that the plastic housing is put face up, lay cardboards or packing bags on the
ground. Then, take out the RRU3804 and install the attachment plate.
Step 2 Fit the tabs on the attachment plate into the anchor slots of the mounting plate, as shown in
Figure 3-24.
RRU3804
User Guide 3 Installing RRU3804 and SRXU Hardware
Issue 01 (2007-11-29) Huawei Technologies Proprietary 3-23
To Next Page
