Installing the Mounting Plates of the Two RRU3804s on the Metal Pole
This describes how to install the mounting plates on the metal pole.
Prerequisite
The metal pole is ready and the pole diameter stays within the range of 60 mm to 114 mm.
Context
You can install the two RRU3804s on the metal pole by using the following methods. Select a
proper method depending on the field requirements.
l Side-mounted installation
l Rear-mounted installation
Procedure
l Side-mounted installation
1. Install the first mounting plate by referring to 3.4.1.1 Installing the Mounting Plate
of the Single RRU3804 on the Metal Pole.
2. Use the holes numbered 2 in Figure 3-26.

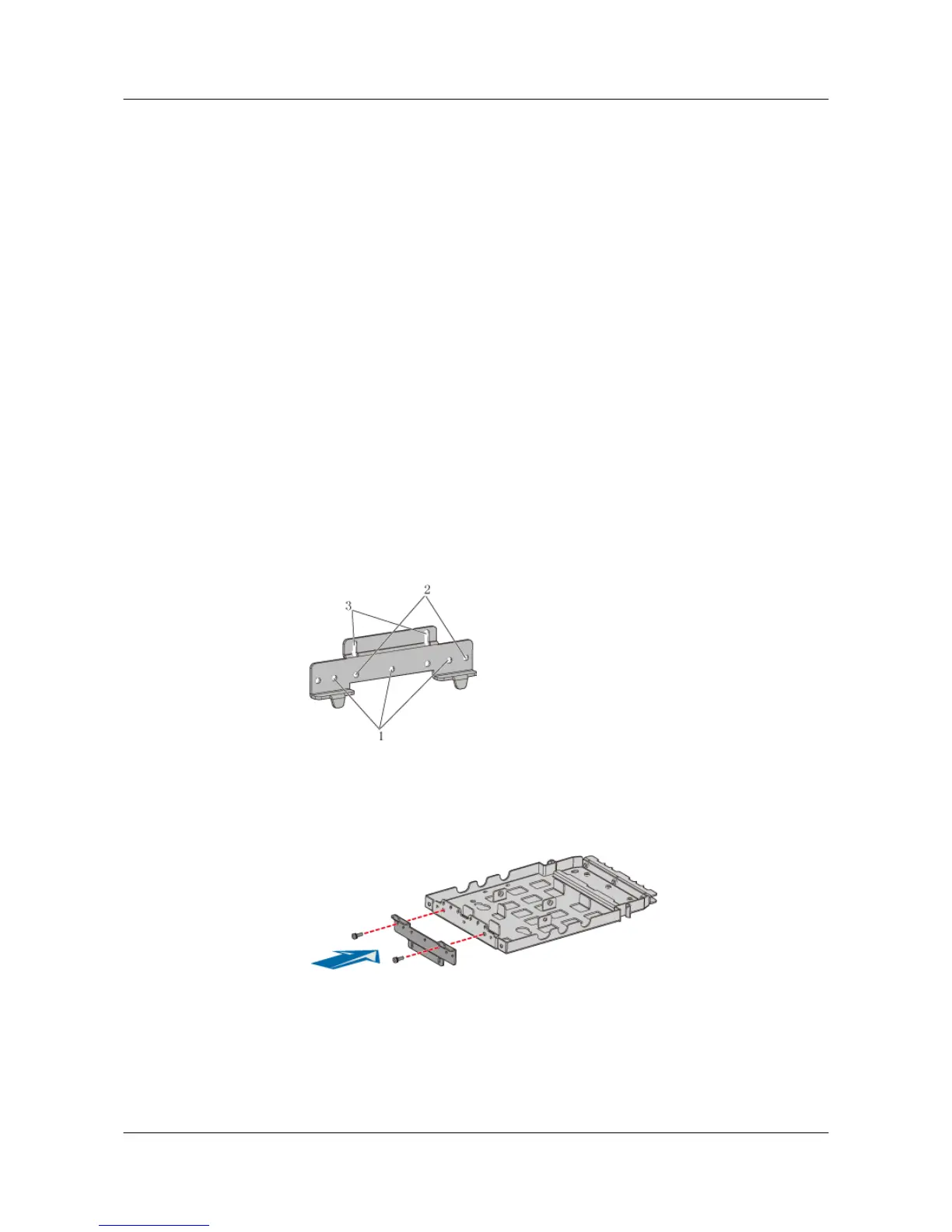

Figure 3-26 Holes in the multi-purpose attachment plate
3. Use two screws M6 x 20 to secure the multi-purpose attachment plate at the bottom
of the second mounting plate, as shown in Figure 3-27.
Figure 3-27 Securing the multi-purpose attachment plate at the bottom of the second
mounting plate
4. Fit the tab on the left of the second mounting plate into the anchor slot in the first
mounting plate, as shown in Figure 3-28.
3 Installing RRU3804 and SRXU Hardware
RRU3804
User Guide
3-26 Huawei Technologies Proprietary Issue 01 (2007-11-29)
