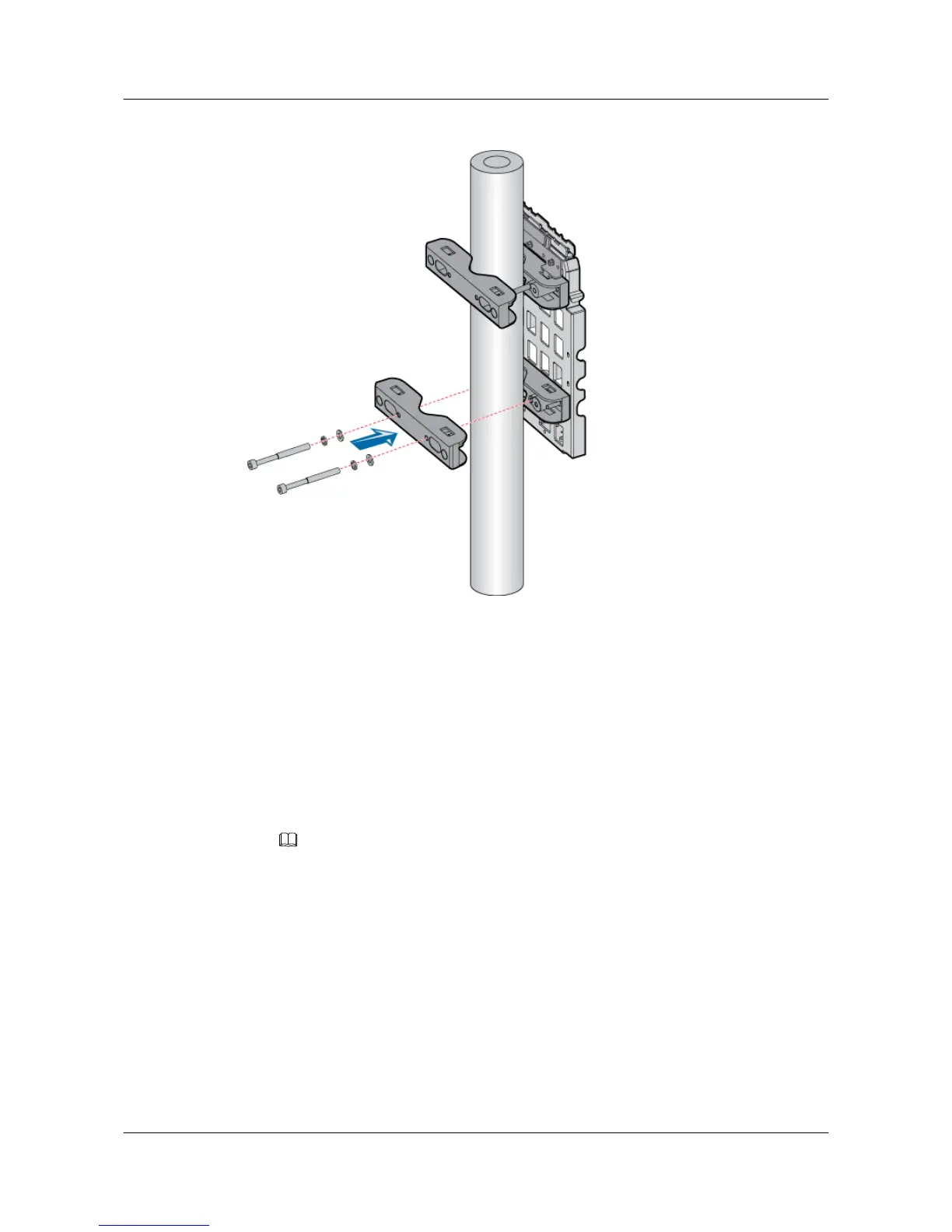

Figure 3-18 Mounting the lower fixture assembly
----End
Installing the Mounting Plate of the Single RRU3804 on the Wall
This describes how to install the mounting plate on the wall.
Procedure
Step 1 Determine the position of the mounting plate.
1. Determine the position of the mounting plate by referring to the engineering design and
3.1.2 Space Requirements of the RRU3804 and SRXU.
NOTE
The mounting plate should be 1,200 mm to 1,600 mm above the ground or rooftop.
2. Place the mounting plate against the wall, and then use the marking pen to mark the four
anchor points. You can also mark the anchor points by referring to the inter-hole distance
shown in Figure 3-19.
RRU3804
User Guide 3 Installing RRU3804 and SRXU Hardware
Issue 01 (2007-11-29) Huawei Technologies Proprietary 3-19
