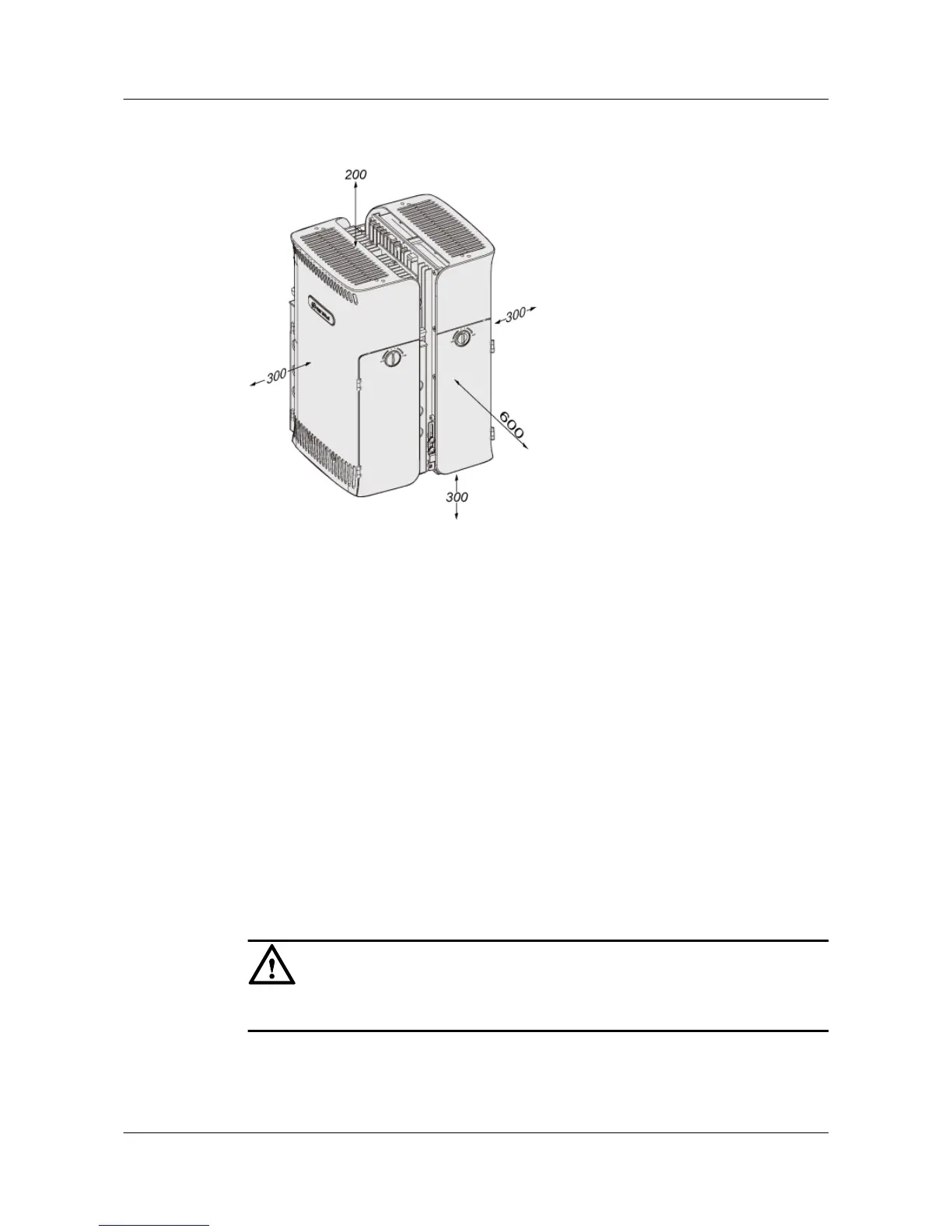

Figure 3-11 Minimal space requirements of multiple RRU3804s with and without the SRXUs
(unit: mm)
The minimal space around the equipment is as follows:
l 300 mm under the equipment for cabling. It is recommended that the space is 1,200 mm
between the bottom and the ground for easy maintenance.
l 600 mm in front of the equipment for maintenance.
l 200 mm above the equipment for maintenance.
l 300 mm on the left of the equipment for maintenance.
l 300 mm on the right of the equipment for maintenance.
3.2 Procedure for Installing the RRU3804 and SRXU
The procedure for installing the RRU3804 and SRXU varies with the installation scenarios. The
procedure involves making preparations, installing the RRU3804 and SRXU, connecting related
cables, checking the hardware installation, and installing the housing of the RRU3804 and
SRXU.
Context
CAUTION
After the NodeB is installed, it must be powered on within 48 hours.
3 Installing RRU3804 and SRXU Hardware
RRU3804
User Guide
3-10 Huawei Technologies Proprietary Issue 01 (2007-11-29)
