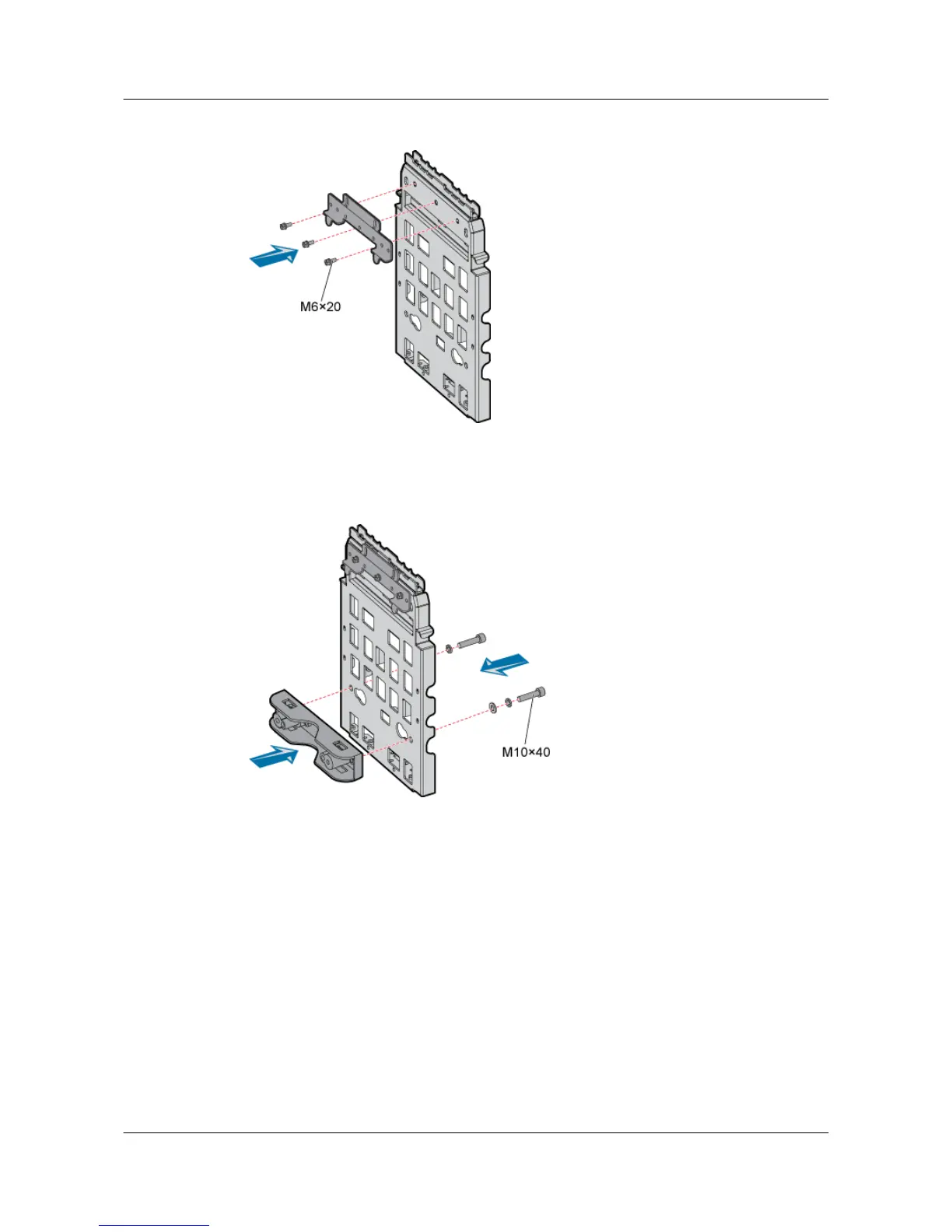

Figure 3-15 Securing the multi-purpose attachment plate on the mounting plate
Step 6 Install the third pole fixture on the mounting plate at the lower part of its back by fastening two
bolts M10 x 40, as shown in Figure 3-16.
Figure 3-16 Installing the third pole fixture
Step 7 Install the mounting plate by fitting the tabs on the mounting plate into the anchor slots in the
pole fixture, as shown in Figure 3-17.
RRU3804
User Guide 3 Installing RRU3804 and SRXU Hardware
Issue 01 (2007-11-29) Huawei Technologies Proprietary 3-17
